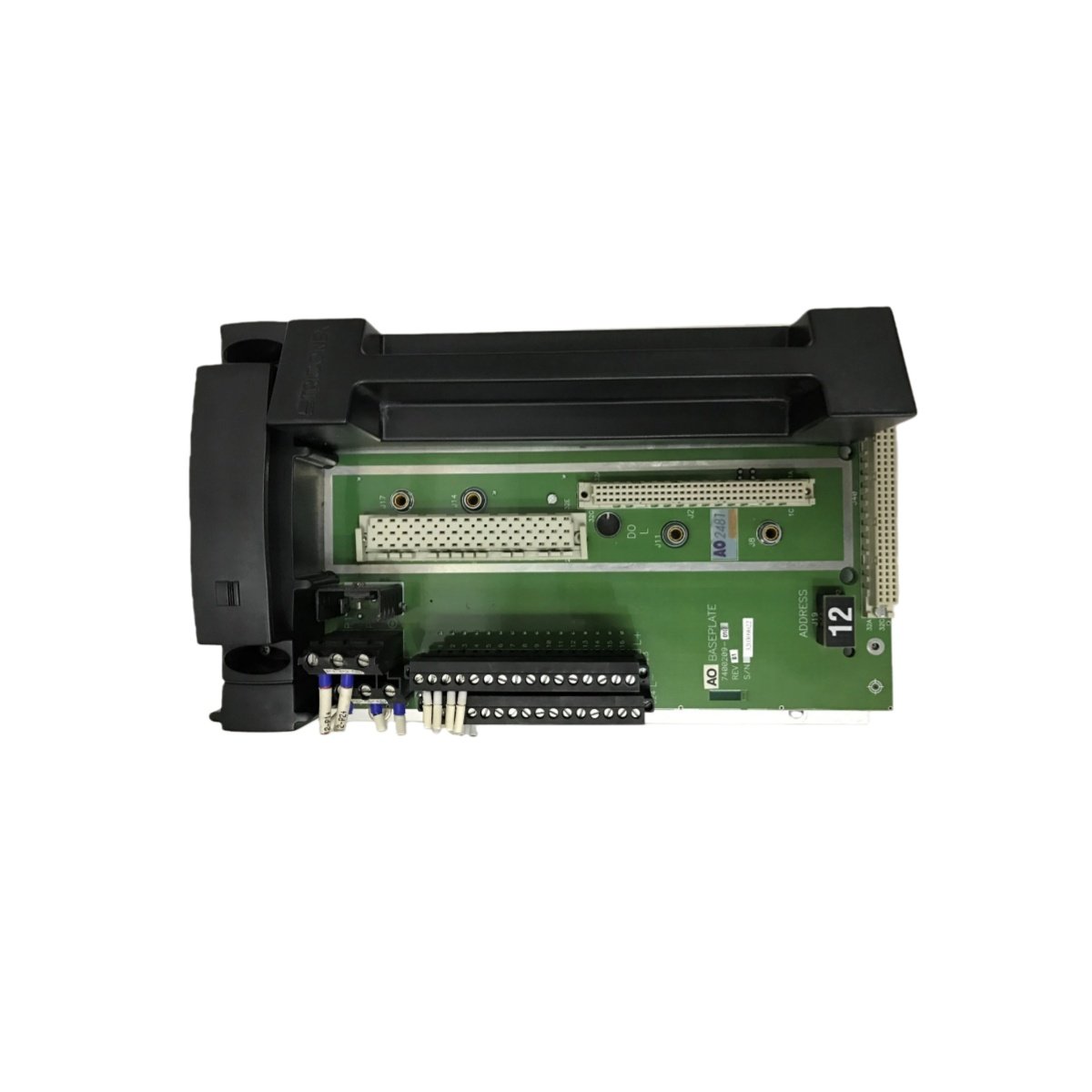

The Triconex 2481 is an analog output baseplate for the Trident safety instrumented system . This module provides the physical and electrical interface for AO2481 analog output modules, enabling precise 4-20mA signal transmission to critical field devices like control valves and variable speed drives . It operates within a TMR (Triple Modular Redundant) architecture, where three independent channels work in parallel . Therefore, even a single channel failure will not disrupt the system’s output .

Designed for Reliability in Demanding Conditions

The 2481 baseplate supports a wide operating temperature range from -20°C to +70°C and features robust isolation ratings: 500VDC minimum between functional and protective earth, and 800VDC minimum between functional and logic circuits . This design ensures signal integrity and system safety even in harsh industrial environments . Its high-reliability construction supports the fault-tolerant strategy of the Trident system.

Technical Specifications and Integration

The Triconex 2481 provides front-accessible screw terminals, simplifying installation and maintenance . It supports hot-swappable module replacement, allowing maintenance without process interruption . The following table details its key specifications :

Application in Process Automation

System integrators use this baseplate in critical control loops for chemical reactors, turbine control, and pipeline management . Its quick 1ms switching time ensures seamless control continuity during a channel fault . The Triconex 2481 provides a reliable platform for applications where control signal deviations could lead to product loss or safety incidents.
