Reliable Signal Conversion and Protocol Adaptation

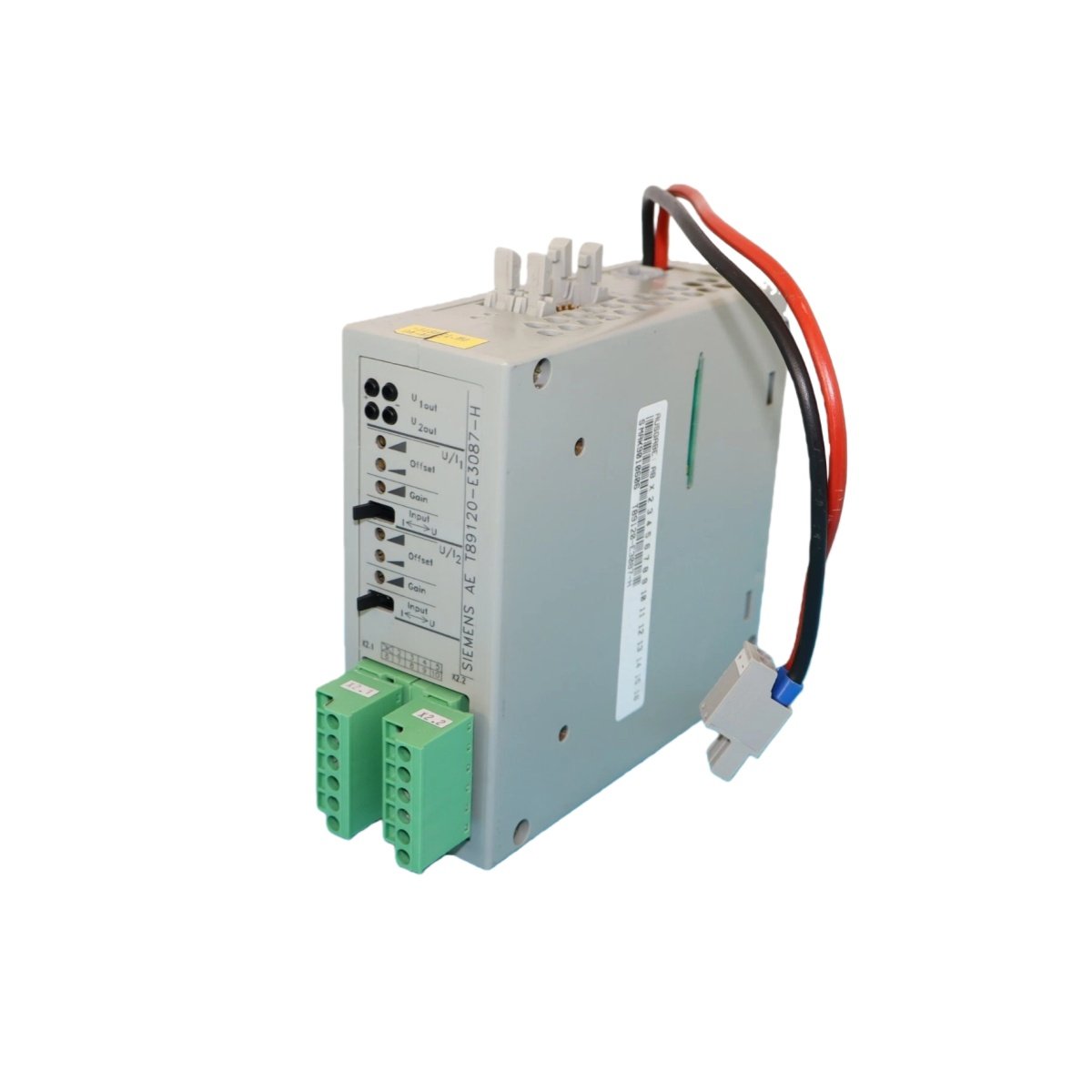

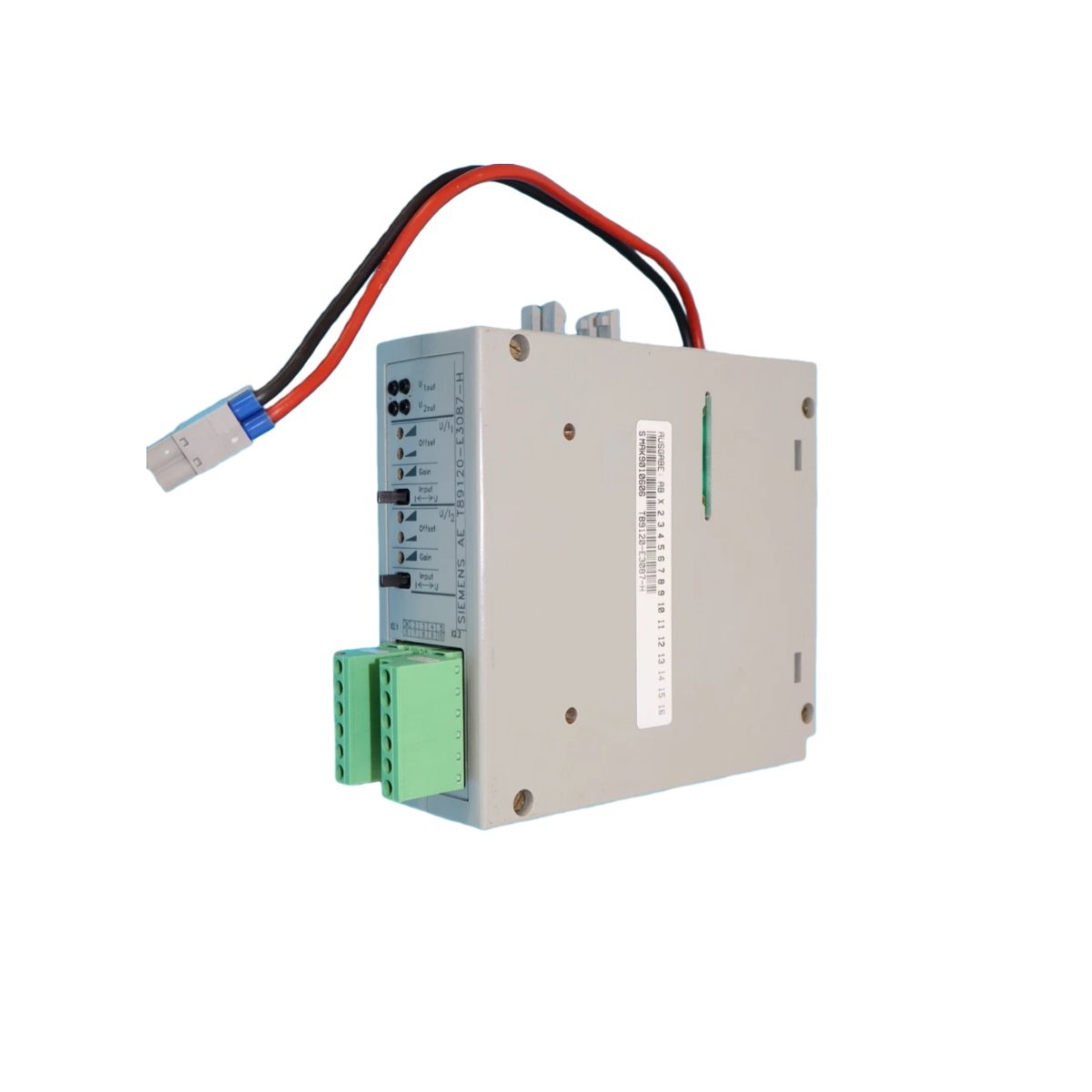

This interface module facilitates seamless communication between control systems and peripheral devices. It converts electrical signals and protocol formats for compatibility across different equipment types. The Siemens T89120-E3087-H features 16 digital input channels for field signal acquisition. It also provides 8 digital output channels for driving actuators and indicators. The module supports both 24 V DC and 48 V DC signal levels. It performs galvanic isolation between the field side and internal logic circuits.
Physical Dimensions and Installation Details
The unit measures 115 mm in height, 50 mm in width, and 125 mm in depth. It weighs approximately 0.45 kg with all terminal blocks and mounting accessories. The T89120-E3087-H mounts securely onto a standard 35 mm DIN rail. Its robust housing features a snap-lock mechanism for rapid installation. This space-efficient design optimizes cabinet layout and wiring organization.
Interface Connectivity and Electrical Requirements
Front-facing screw terminals facilitate all field wiring connections to the module. The Siemens T89120-E3087-H draws its operating power from the 24 V DC supply bus. Typical current consumption stays below 150 mA during normal operation. The module communicates with the host controller via a parallel interface bus. LED indicators display channel status and fault conditions for each I/O point.
Internal Architecture and Energy Storage Elements
The PCB contains optocouplers for each input and relay drivers for each output channel. The T89120-E3087-H uses a 100 µF capacitor for short-term energy buffering. It stores configuration settings in onboard EEPROM for reliable startup. The module includes protection diodes on all input and output circuits. These components safeguard against reverse polarity and overvoltage events.
| Parameter | Specification |
|---|---|
| Model | T89120-E3087-H |
| Type | Interface Module |
| Digital Inputs | 16 channels, 24 V DC / 48 V DC |
| Input Current | 5 mA per channel |
| Digital Outputs | 8 channels, 24 V DC / 48 V DC |
| Output Current | 0.5 A per channel |
| Isolation | 1500 V AC (field to logic) |
| Supply Voltage | 24 V DC ±10% |
| Current Draw | ≤150 mA |
| Dimensions (H×W×D) | 115 × 50 × 125 mm |
| Weight | 0.45 kg |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | –20 to +70 °C |
| Field Connector | Screw terminal block |
| Host Interface | Parallel interface bus |
| Energy Storage | 100 µF capacitor |
| Protection | Reverse-polarity and overvoltage diodes |
Recommended Installation Practices
Position the Siemens T89120-E3087-H away from high-voltage AC power distribution lines. Use separate cable ducts for input and output wiring to minimize interference. Connect the ground terminal to the control panel earthing system properly. Configure the module’s communication settings using the system software. Test each input and output channel individually after completing wiring. Perform periodic inspections of terminal tightness and LED indicators.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
