High-Performance Analog Signal Conversion and Conditioning

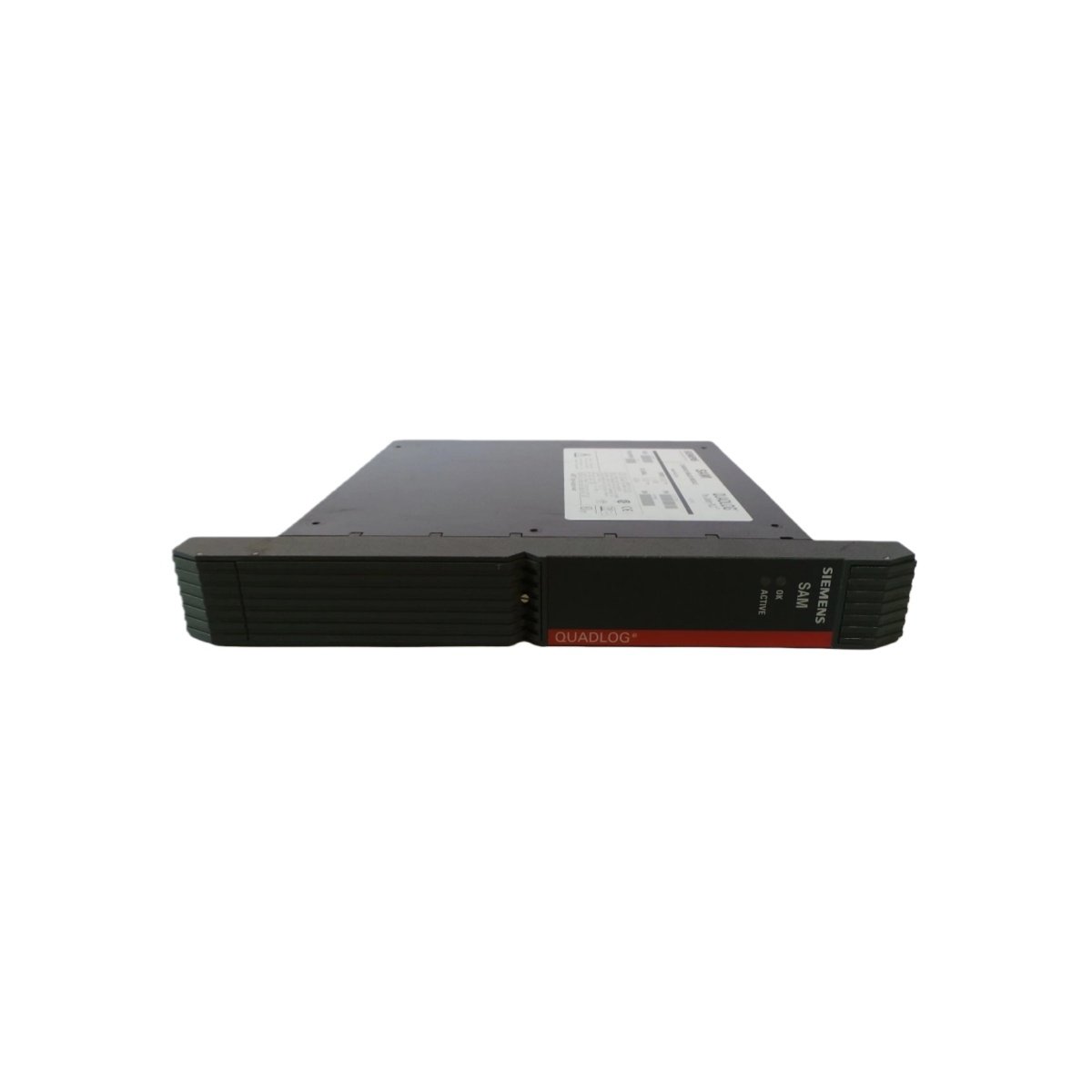

This standard analog module delivers accurate signal conversion for industrial measurement applications. It handles multiple analog input types including current, voltage, and resistance signals. The Siemens QLSAMBAN offers 8 configurable analog input channels for versatile system integration. Each channel provides 16-bit resolution for high-precision data acquisition. The module achieves a conversion accuracy of ±0.1% across the full operating range. It performs automatic zero and span calibration to maintain measurement integrity.

Physical Dimensions and Installation Specifications

The unit measures 125 mm in height, 50 mm in width, and 135 mm in depth. It weighs approximately 0.42 kg with all terminal blocks and hardware attached. The QLSAMBAN mounts securely onto a standard 35 mm DIN rail inside the control cabinet. Its durable plastic housing meets IP20 protection standards for indoor installations. This compact design maximizes available panel space for other components.

Interface Connectivity and Power Requirements

A 25-pin D-sub connector facilitates all field wiring terminations for the analog signals. The Siemens QLSAMBAN draws its operating power from the 24 V DC supply bus. Typical current consumption stays below 120 mA during normal measurement operations. It communicates with the host controller via a dedicated serial communication link. LED indicators display channel status and power conditions clearly. These indicators enable efficient system monitoring and fault detection.

Internal Circuitry and Energy Storage Components

The PCB contains 8 independent conditioning circuits with precision operational amplifiers. Each channel employs a 16-bit ADC for reliable analog-to-digital conversion. The QLSAMBAN stores calibration coefficients and configuration data in onboard EEPROM. A 220 µF capacitor provides local energy storage for transient voltage protection. The module includes input protection diodes on every analog channel. This protection safeguards the module against reverse polarity and overvoltage conditions.

Recommended Installation Guidelines

Mount the Siemens QLSAMBAN away from high-voltage power cables and variable-frequency drives. Use shielded twisted-pair cables for all analog signal connections to reduce noise. Connect cable shields to earth ground at the panel entry point only. Configure input ranges using the system software before energizing the module. Verify each channel reading against a precision calibrator after installation. Schedule periodic accuracy verification as part of routine maintenance.
