Intelligent DSP Co-Processor for Real-Time Control

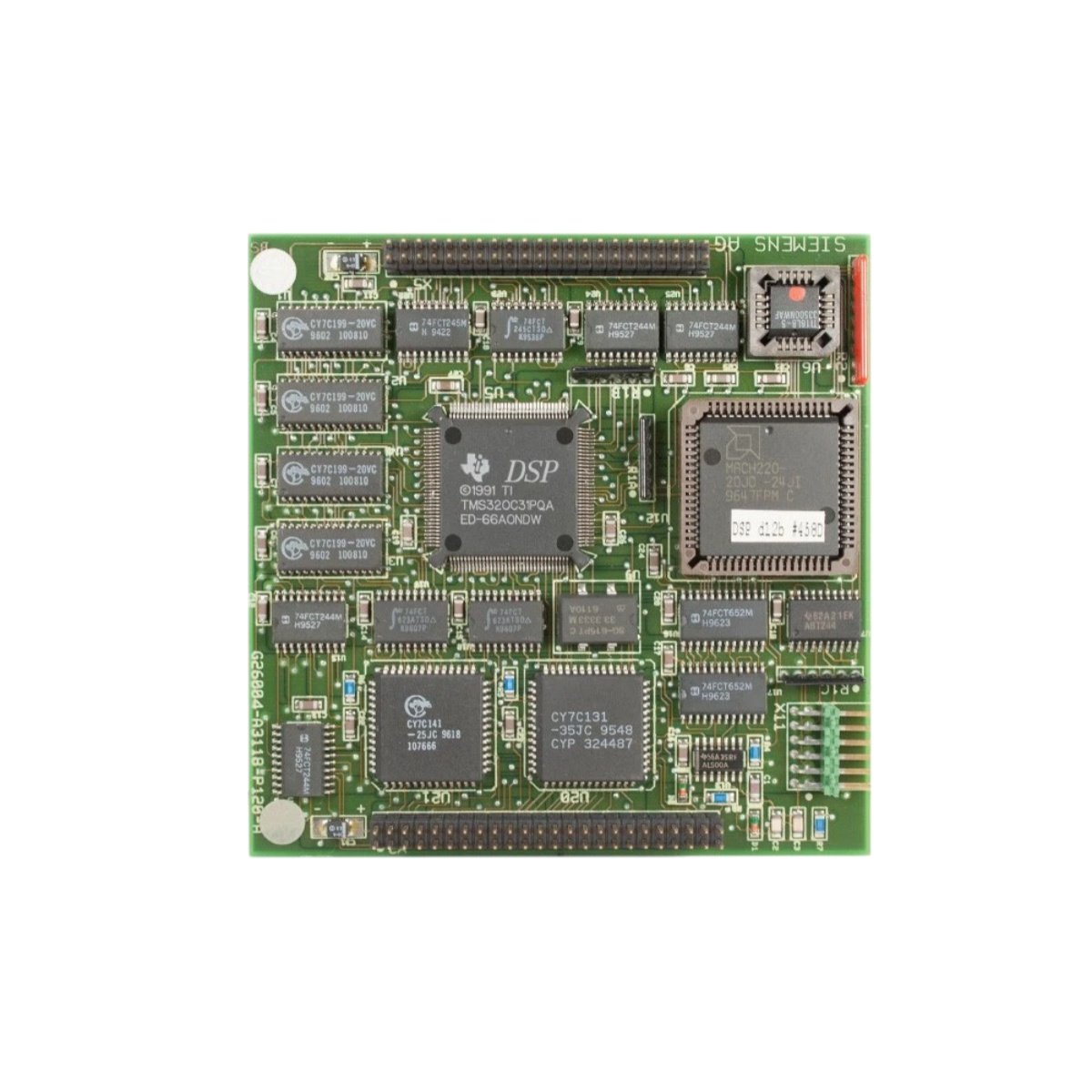

The G26004-A3118-P120 functions as an intelligent signal processor within the SIMATIC S5 architecture. Engineers deploy this IP252 IP-DSP module to offload complex computational tasks from the main CPU. Consequently, the system achieves high-speed deterministic execution for advanced control loops and motion algorithms independently.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | G26004-A3118-P120 |
| Manufacturer | Siemens |
| Series | SIMATIC S5 |
| Module Type | IP252 IP-DSP Intelligent Processor |
| Function | Digital Signal Processing / Co-Processor |
| Power Supply | 5 VDC via backplane |
| Current Consumption | 1.2 A typical |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 95% non-condensing |
| Weight | 0.10 kg (net) |
| Dimensions | 110 × 110 × 15 mm |
| Country of Origin | Germany |
Functional Architecture
This processor module integrates dedicated DSP hardware for autonomous execution of control logic. High-speed input channels interface directly with industrial sensors and encoders. Therefore, the G26004-A3118-P120 handles precision positioning tasks without burdening the primary PLC cycle time. Seamless backplane integration enables straightforward parameterization and data exchange.
Operational Environment
The module operates reliably across chemical, steel, and automotive industrial settings. A compact form factor measuring 110 × 110 × 15 millimeters suits installations with limited cabinet space. Shielded cabling for sensor inputs minimizes electromagnetic interference. Furthermore, proper ventilation maintains ambient temperatures within specified limits.
Details
| Weight | 0.72 kg |
|---|---|
| Dimensions | 325 × 168 × 8 mm |
