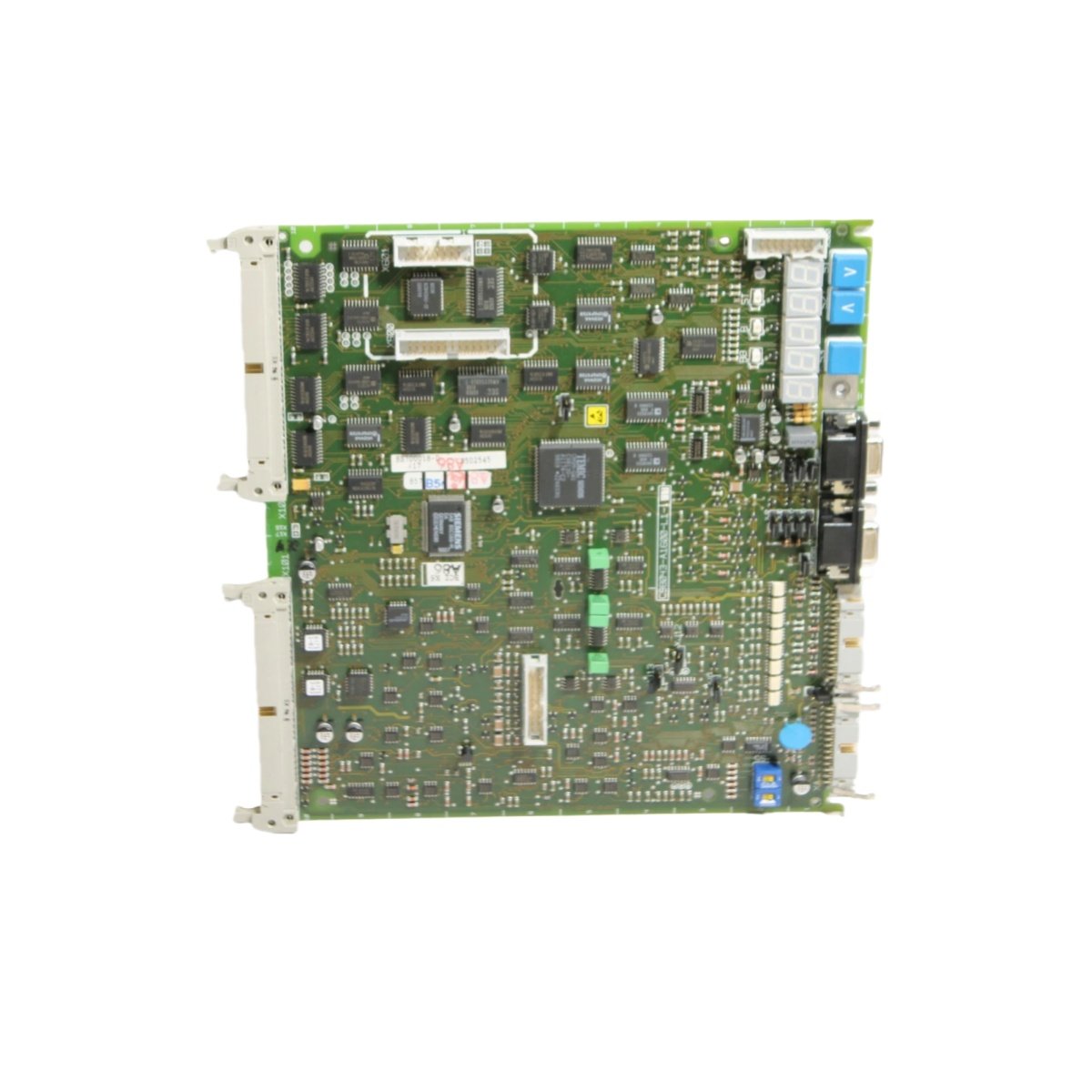

Core Control Board for SIMOREG 6RA24 Series
The C98043-A1600-L1 control board serves as the main processor unit for Siemens SIMOREG 6RA24 DC converter systems . This board manages all closed-loop control, regulation, monitoring, and additional functions for DC motor speed control applications . It plays a crucial role in ensuring smooth operation and efficient control of connected equipment . The microprocessor-based design handles both digital and analog setpoints and feedback values .
System Integration and Technical Specifications
This board integrates seamlessly with 6RA24 series rectifiers, which cover current ranges from 15 A up to 1200 A . The C98043-A1600-L1 manages single-quadrant or four-quadrant operation configurations. It interfaces with the power section, which uses a three-phase full-control bridge B6C for single-quadrant or anti-parallel connection for four-quadrant drives . The board also coordinates the field supply circuit using a single-phase half-controlled bridge B2HZ .
Physical Dimensions and Installation
The C98043-A1600-L1 weighs approximately 0.32 to 0.40 kg, making it a lightweight component for control cabinets . It measures roughly 2.5 cm x 25.4 cm x 25.4 cm (H x W x D) . This control board fits within the electronic component box of the 6RA24 drive chassis. It also accommodates optional add-on boards for expanded functionality . Field signals connect via mutually isolated terminal strips .
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | C98043-A1600-L1 |
| Product Type | Control Board |
| Compatible Series | SIMOREG 6RA24 DC Converter |
| Processor Type | Microprocessor-based |
| Input Voltage | 24 V DC |
| Weight | 0.32 – 0.40 kg |
| Dimensions (HxWxD) | 2.5 x 25.4 x 25.4 cm |
| Operating Temperature | -20°C to +60°C |
| Mounting | Electronic component box (chassis) |
| Country of Origin | Germany |
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
