Technical Specifications and Hardware Overview

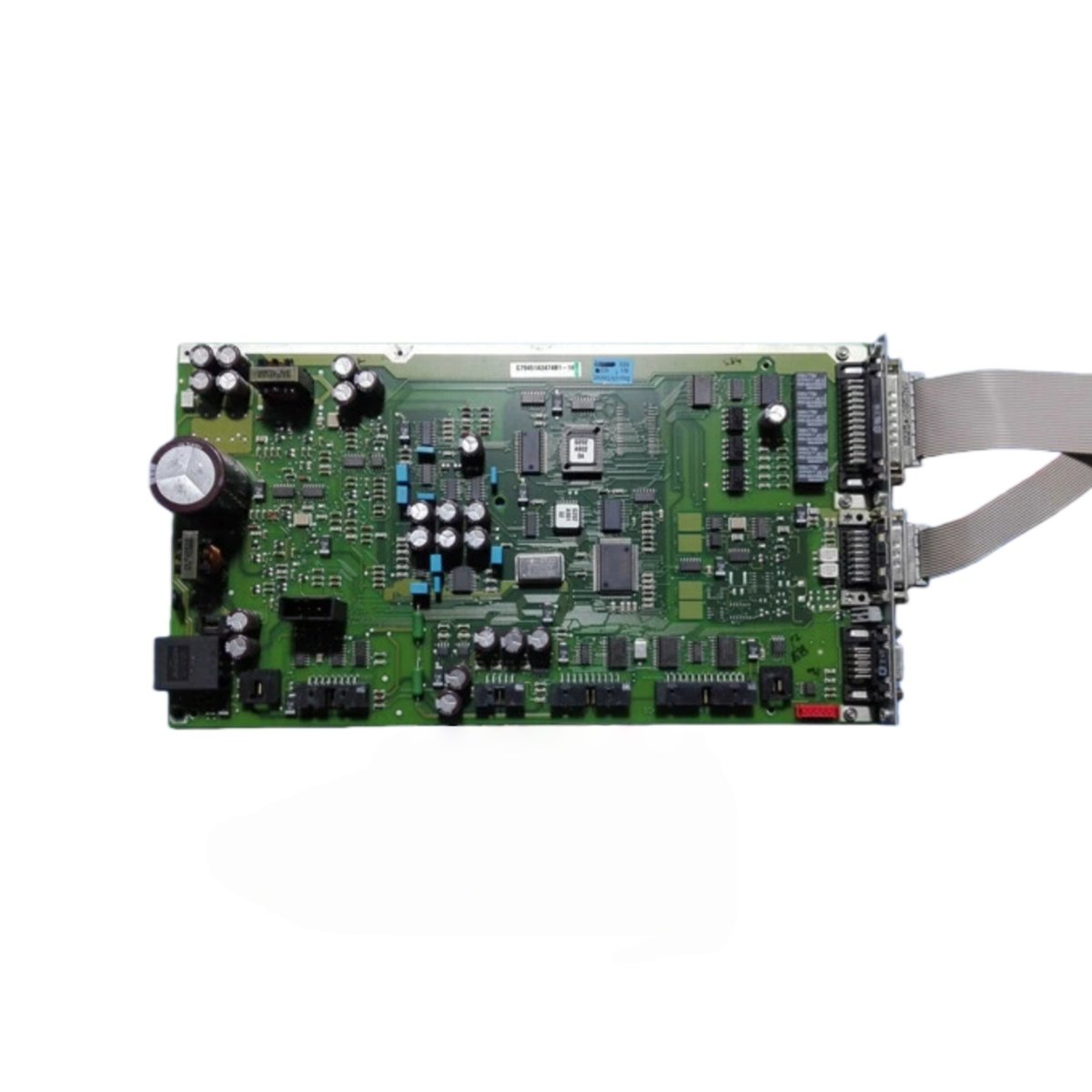

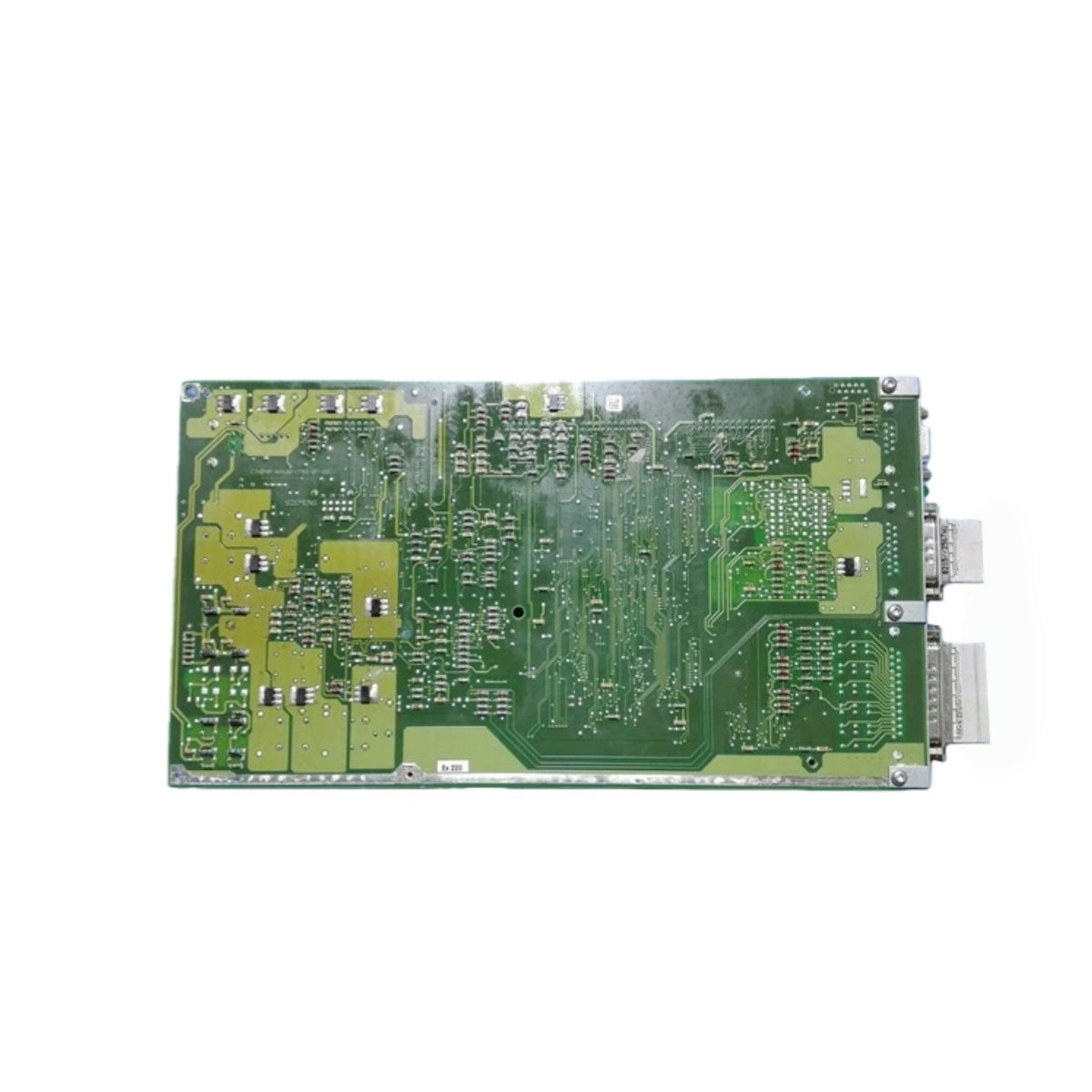

The Siemens C79451A3474B1-14 serves as a dedicated accessory module for industrial gas analyzer systems. This unit measures 165 mm in height, 60 mm in width, and 140 mm in depth for compact cabinet installation. It weighs approximately 0.55 kilograms, which enables easy handling during setup or replacement procedures. The unit draws 0.3 A from a 24 V DC power supply, consuming roughly 7.2 W under normal operating conditions. It features one RS-232 serial interface for communication with the host analyzer. The module also includes two analog inputs for auxiliary sensor signal integration.

It contains 32 KB of EEPROM for calibration and configuration data storage. The unit provides a relay output for alarm or status indication purposes. It includes a precision voltage reference for accurate analog signal conditioning. The module supports sample gas temperature compensation through a built-in thermistor input. It offers a measurement accuracy of ±0.1% of full scale for connected sensors. The operating temperature range spans 0°C to 50°C for indoor analytical environments. Storage temperatures extend from -20°C to 65°C without causing component damage. Humidity tolerance covers 10% to 90% non-condensing conditions for consistent performance.

Signal Processing and Calibration Features

This accessory module conditions auxiliary sensor signals for the main analyzer system. It applies temperature compensation to maintain measurement stability across varying conditions. The Siemens C79451A3474B1-14 stores calibration coefficients in onboard EEPROM memory. It communicates measured values via RS-232 to the host analyzer processor. The unit provides an isolated relay contact for remote alarm notification. It includes LED indicators for power and communication status at a glance. The module performs continuous self-monitoring to detect fault conditions quickly. It supports factory calibration through a dedicated maintenance interface.

Installation and Operational Details

The C79451A3474B1-14 mounts onto a DIN rail or directly to panel surfaces. It requires 20 mm clearance above and below for adequate ventilation. The module delivers a mean time between failures of 150,000 hours. It carries CE certification for European market deployment. The unit passes vibration testing at 10 to 55 Hz with 0.15 mm amplitude. It withstands shock loads up to 5 g for 30 ms duration. The accessory contains approximately 50 discrete components on a single PCB. This design ensures straightforward servicing and reliable field performance.
