Product Overview

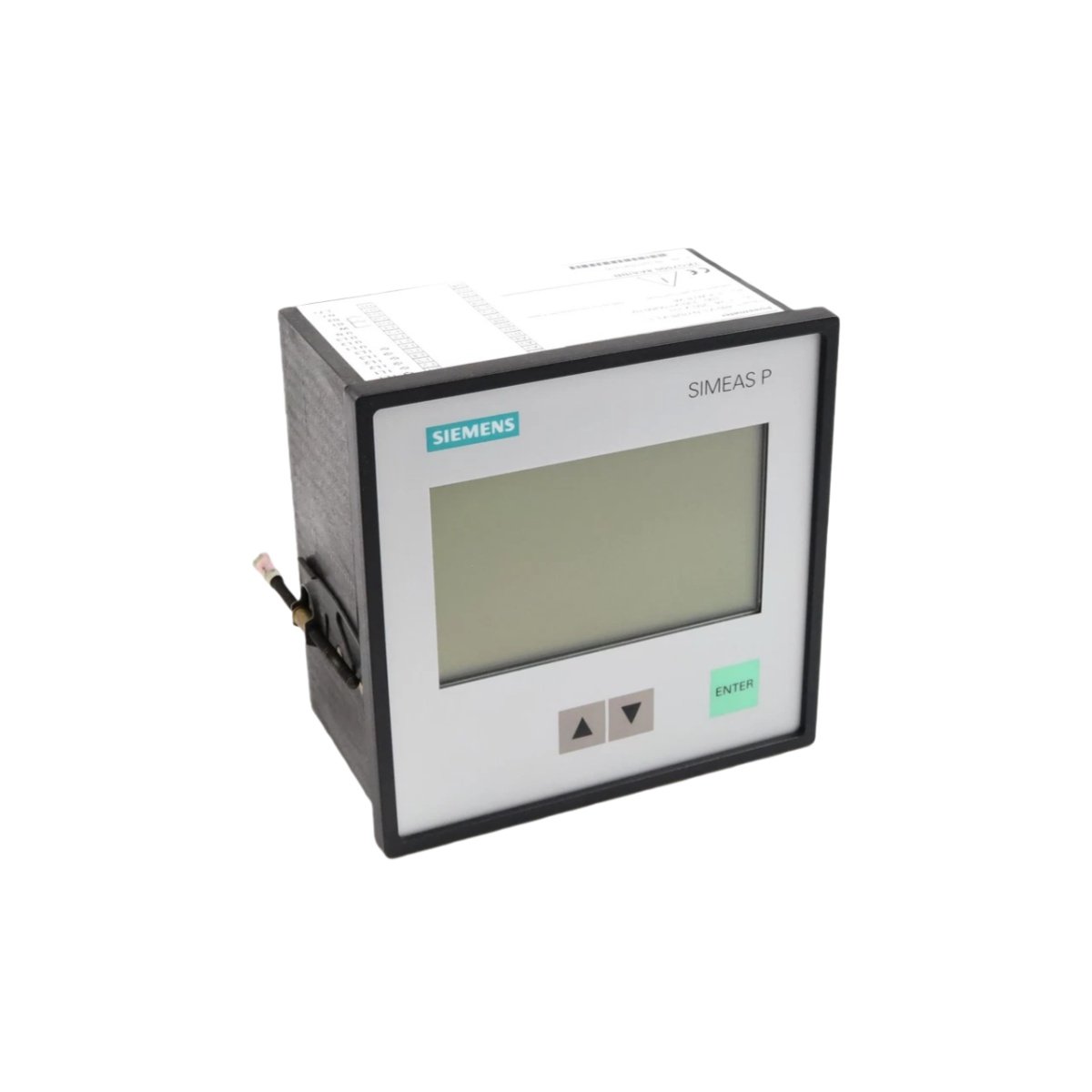

The Siemens 7KG7000-8AA/BB PLC Power Meter provides accurate electrical energy measurement for industrial automation and power management systems. Moreover, the device combines advanced monitoring functions with reliable communication, allowing engineers to optimize equipment performance efficiently. Its compact housing fits standard control panels while supporting continuous operation in demanding industrial environments. Additionally, the intelligent measurement platform delivers stable data for energy analysis, process optimization, and preventive maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 7KG7000-8AA/BB |
| Product Category | PLC Power Meter |
| Meter Type | Multifunction Power Meter |
| Measured Parameters | Voltage, Current, Active Power, Reactive Power, Apparent Power, Frequency, Power Factor, Energy |
| Rated Voltage | Up to 690 V AC |
| Current Input | 1 A / 5 A CT Input |
| Frequency Range | 45–65 Hz |
| Accuracy Class | Class 0.5S (Energy) |
| Communication Interface | RS-485, Modbus RTU |
| Display | LCD Digital Display |
| Mounting Method | Panel-mounted |
| Dimensions | Approx. 96 × 96 × 77 mm |
| Weight | Approx. 0.45 kg |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Power Consumption | ≤10 VA |
Key Features
The 7KG7000-8AA/BB measures multiple electrical parameters simultaneously, enabling comprehensive monitoring across industrial power distribution networks. Furthermore, the integrated processor calculates energy consumption, power quality, and electrical performance with excellent measurement accuracy. Engineers can connect the meter through the RS-485 communication interface for reliable data exchange with PLC and SCADA systems. Consequently, operators gain real-time energy information while improving equipment efficiency and reducing operating costs.
The compact enclosure measures approximately 96 × 96 × 77 mm and weighs around 0.45 kg for convenient panel installation. Additionally, the high-contrast LCD displays electrical values clearly, allowing technicians to review operating conditions without additional diagnostic equipment. The multifunction design eliminates unnecessary measuring devices while simplifying electrical cabinet layouts. Therefore, the meter improves installation efficiency and reduces overall system complexity.
Typical Applications
The 7KG7000-8AA/BB supports factory automation, building management systems, power distribution panels, water treatment facilities, manufacturing plants, and energy monitoring applications. Meanwhile, engineers use the meter to monitor electrical loads, optimize energy consumption, and improve equipment reliability. Its communication capability also supports centralized monitoring and industrial data collection systems.
Advantages
- Measures voltage, current, power, frequency, and energy simultaneously.
- Supports RS-485 communication with Modbus RTU protocol.
- Delivers Class 0.5S energy measurement accuracy.
- Compact panel-mounted design saves installation space.
- LCD display provides clear real-time operating information.
- Supports continuous industrial energy monitoring applications.
- Simplifies integration with Siemens PLC and SCADA systems.
Technical Highlights
| Feature | Benefit |
|---|---|
| Multifunction Measurement | Monitors complete electrical system performance |
| RS-485 Interface | Enables reliable industrial communication |
| Class 0.5S Accuracy | Supports precise energy management |
| LCD Display | Provides clear operational visibility |
| 96 × 96 × 77 mm Housing | Fits standard electrical panels |
| ≤10 VA Power Consumption | Improves overall energy efficiency |
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
