Product Overview
The Siemens 6XV1440-2AH32 provides a pre-assembled connection cable for industrial automation networks. This plug-in cable facilitates reliable data transmission between PLC components and field devices. Factory floor installations benefit from its robust construction and standardized connector terminations.
Technical Specifications

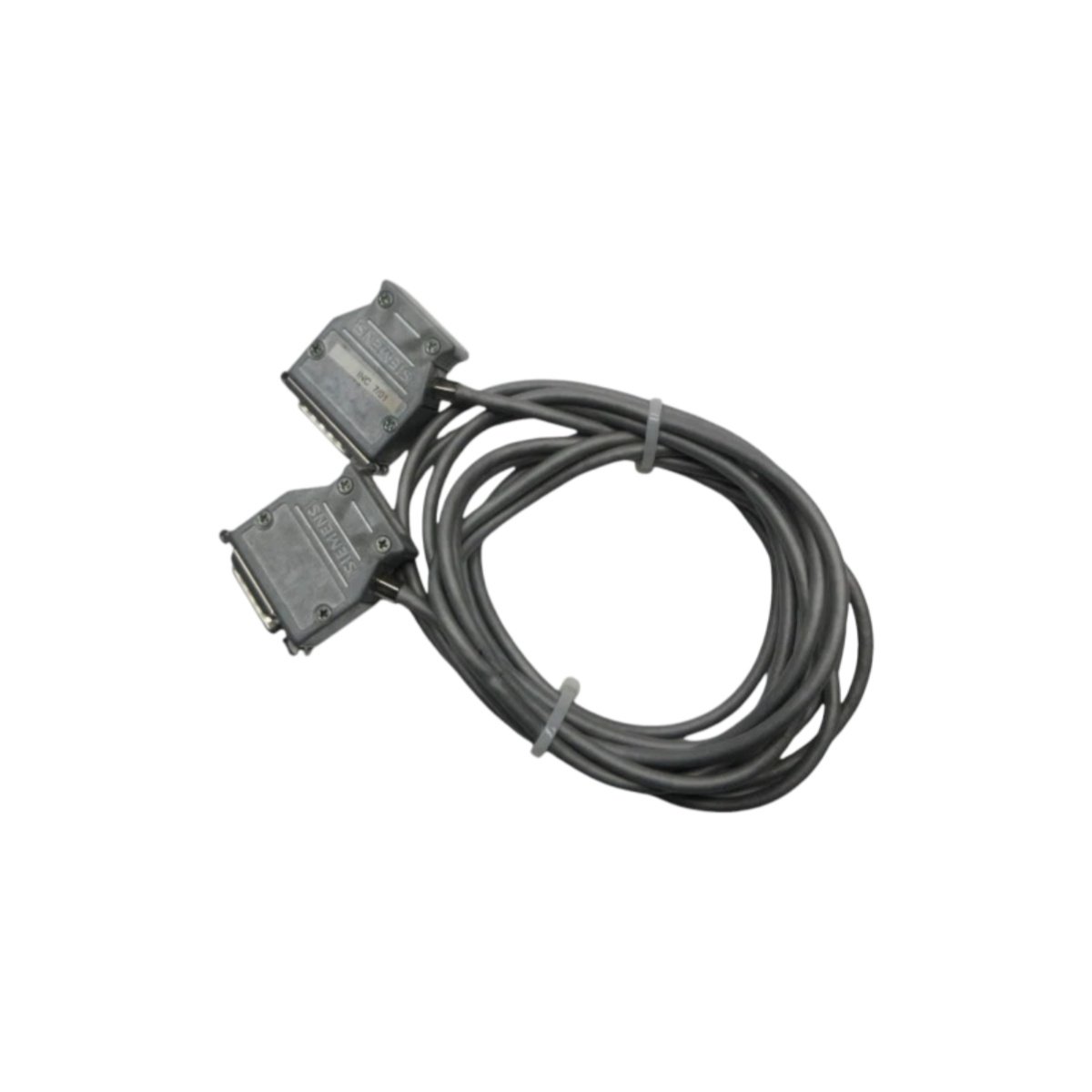

This cable assembly features molded connectors at both ends for immediate deployment. The Siemens 6XV1440-2AH32 uses shielded twisted-pair conductors to minimize electromagnetic interference in noisy environments. Its flexible jacket material allows easy routing through cable ducts and tight machine spaces. The cable’s strain-relief design prevents conductor fatigue at connection points.
| Parameter | Specification |
|---|---|
| Product Type | Plug-in Cable / Pre-assembled Connection Cable |
| Cable Length | 2.0 meters |
| Connector Type (End 1) | 9-pin D-sub male connector |
| Connector Type (End 2) | 9-pin D-sub female connector |
| Cable Construction | Shielded twisted-pair (2 core pairs) |
| Conductor Cross-section | 0.25 mm² per conductor |
| Number of Conductors | 4 cores plus overall shield |
| Cable Outer Diameter | Approximately 6.5 mm |
| Jacket Material | PVC, oil-resistant and flame-retardant |
| Characteristic Impedance | 150 ohms at 1 MHz |
| Maximum Data Rate | 187.5 kbps (supports RS-485) |
| Operating Voltage | 24 V DC maximum |
| Energy Storage | None (passive cable assembly) |
| Connector Housing | Metallic shielding for EMC protection |
| Operating Temperature | -20°C to +80°C |
| Bending Radius | Minimum 5x cable diameter (static installation) |
Connection Details
This cable uses a 9-pin D-sub pinout that conforms to standard serial communication interfaces. The Siemens 6XV1440-2AH32 provides full pin-to-pin continuity for transparent signal transmission. Its metallic connector shells provide 360° shielding coverage for enhanced noise immunity.
Application Scenarios
Engineers commonly employ this cable for connecting programming devices to S5 and S7 PLCs. Furthermore, it suits point-to-point communication links between operator panels and control units. The Siemens 6XV1440-2AH32 works effectively in both RS-232 and RS-422/RS-485 network configurations.
Installation and Handling
Users simply plug both connectors into compatible ports without any termination work. The Siemens 6XV1440-2AH32 eliminates the need for field-crimped connectors or soldered joints. Its flexible PVC jacket withstands oil, coolants, and mechanical abrasion in workshop environments.
Quality and Reliability
Siemens manufactures this cable under strict quality control procedures. The Siemens 6XV1440-2AH32 therefore delivers consistent performance across its entire service life. Internal shielding combines with robust overmolding to protect signal integrity. The cable’s flame-retardant rating enhances safety in critical industrial settings.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 295 × 200 × 85 mm |
