Product Overview

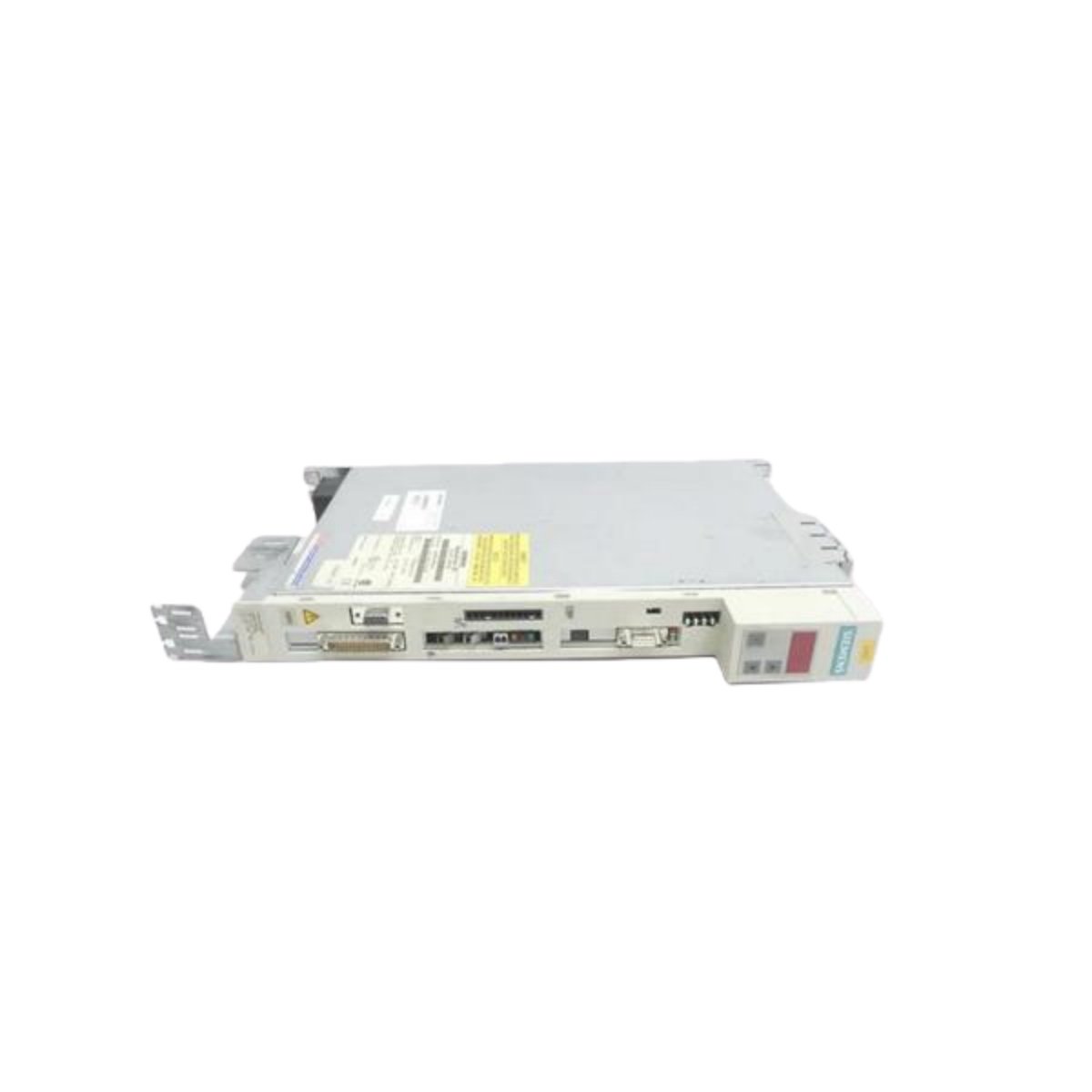

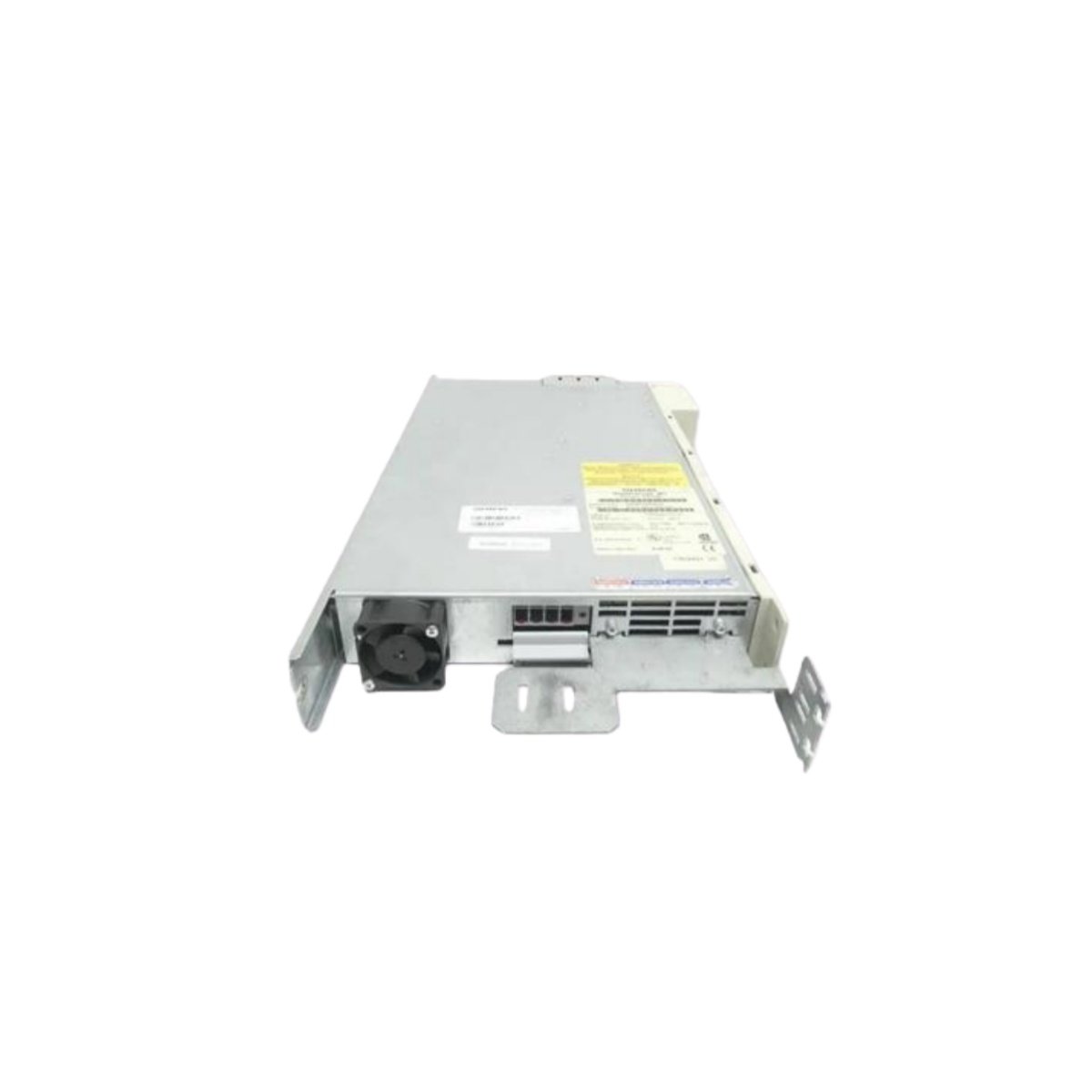

The Siemens 6SE7012-0TP50 drives three-phase AC motors with variable speed and torque control. This air-cooled Compact Plus inverter delivers 0.75 kW output power for light-duty applications. It provides precise motor control for pumps, fans, and conveyor systems. The unit integrates seamlessly into Siemens SIMOVERT MASTERDRIVES installations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 6SE7012-0TP50 |
| Product Type | Compact Plus Inverter |
| Cooling Method | Air-cooled with integrated fan |
| Output Power | 0.75 kW (1.0 HP) |
| Input Voltage | 380–480 VAC, 3-phase |
| Input Frequency | 47–63 Hz |
| Output Voltage | 0–480 VAC, 3-phase |
| Output Frequency | 0–300 Hz |
| Rated Output Current | 2.1 A continuous |
| Overload Capacity | 150% for 60 seconds |
| Protection Class | IP20 |
| Efficiency | 96% typical |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | –25°C to 70°C |
| Humidity Range | 5% to 95% non-condensing |
Physical Dimensions and Mounting
This inverter measures 200 mm in height, 95 mm in width, and 175 mm in depth. The unit weighs approximately 1.8 kg. It mounts vertically on a flat panel or backplate using four screws. The enclosure includes an integrated cooling fan for forced air circulation. The front panel features LED indicators for power, run, and fault status.
Electrical Interface and Connectivity
The 6SE7012-0TP50 includes screw terminals for power input and motor output connections. A 9-pin D-sub connector provides the control signal interface. The control terminals accept digital inputs, analog inputs, and relay outputs. The inverter also includes a built-in brake chopper for dynamic deceleration. The fan provides active cooling to maintain safe operating temperatures.
Performance and Motor Control Features
This inverter operates with a 96% efficiency for energy-saving performance. It delivers 150% overload capacity for 60 seconds during demanding conditions. The drive uses pulse-width modulation for smooth motor torque and quiet operation. It supports linear and square-law V/f control profiles. Moreover, the unit includes adjustable acceleration and deceleration ramps.
Installation and System Integration
You can install this inverter inside a control cabinet with adequate ventilation. Mount the unit vertically and maintain clearances for airflow around the enclosure. Connect the power cables to the appropriate terminals and tighten securely. Always use shielded motor cables to comply with EMC requirements. Configure the parameters using the onboard keypad or a programming tool.
Environmental Compliance
This inverter carries CE marking and UL recognition for industrial use. It complies with RoHS and WEEE environmental directives. The IP20 protection suits standard control cabinet installations.
Details
| Weight | 0.58 kg |
|---|---|
| Dimensions | 45 × 230 × 140 mm |
