Core System Monitoring and Reset Function

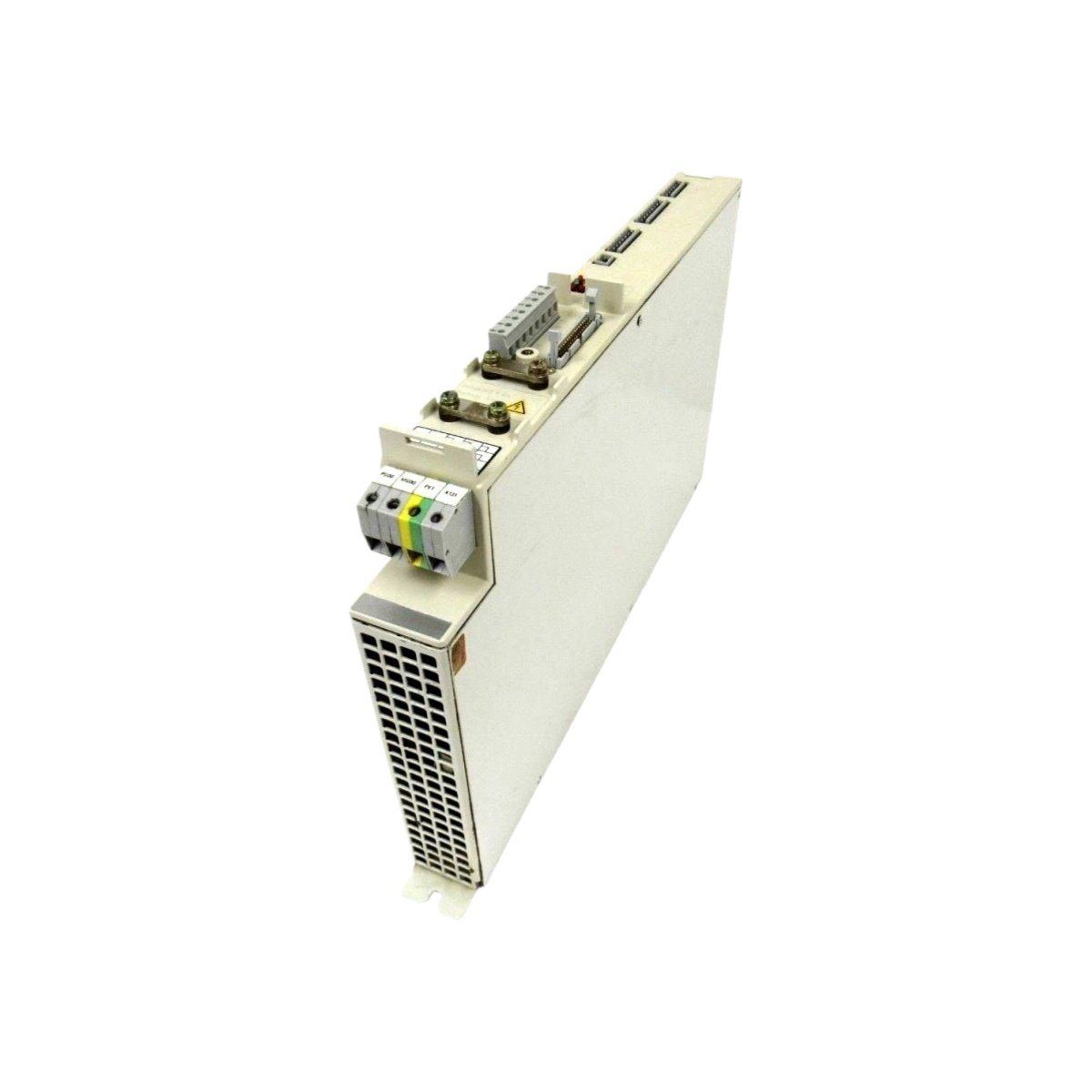

The Siemens 6SC6110-0GA01 is a dedicated watchdog module within the SIMODRIVE 611 modular drive system . This unit actively monitors the drive’s operational status and system bus communication . In the event of a software crash, deadlock, or communication fault, it triggers a system reset to restore normal operation . Consequently, this module is essential for maintaining the safety and reliability of CNC machine tools, robotics, and other high-performance motion control applications.

Integration in the SIMODRIVE 611 Architecture

The 611 system employs a modular design, where a common 600 V DC bus links the power supply and drive modules . The 6SC6110-0GA01 mounts directly into the rack and provides the critical diagnostic and logic interface between the higher-level PLC/CNC controller and the power modules . It supervises the DC link voltage and ensures the operational integrity of servo and spindle drives .

Legacy Status and Technical Specifications

Siemens has discontinued this component as part of the SIMODRIVE 611 lifecycle transition . However, it remains a critical spare for maintaining thousands of existing installations worldwide .

Application in Legacy System Support

Plant engineers and maintenance personnel need this module to keep legacy CNC machines and production lines operational. It is a vital component in the lifecycle management of classic Siemens automation platforms. The Siemens 6SC6110-0GA01 enables continued reliable operation of proven equipment. Therefore, sourcing tested units from specialized suppliers is crucial for supporting these legacy installations.
