System Integration Overview

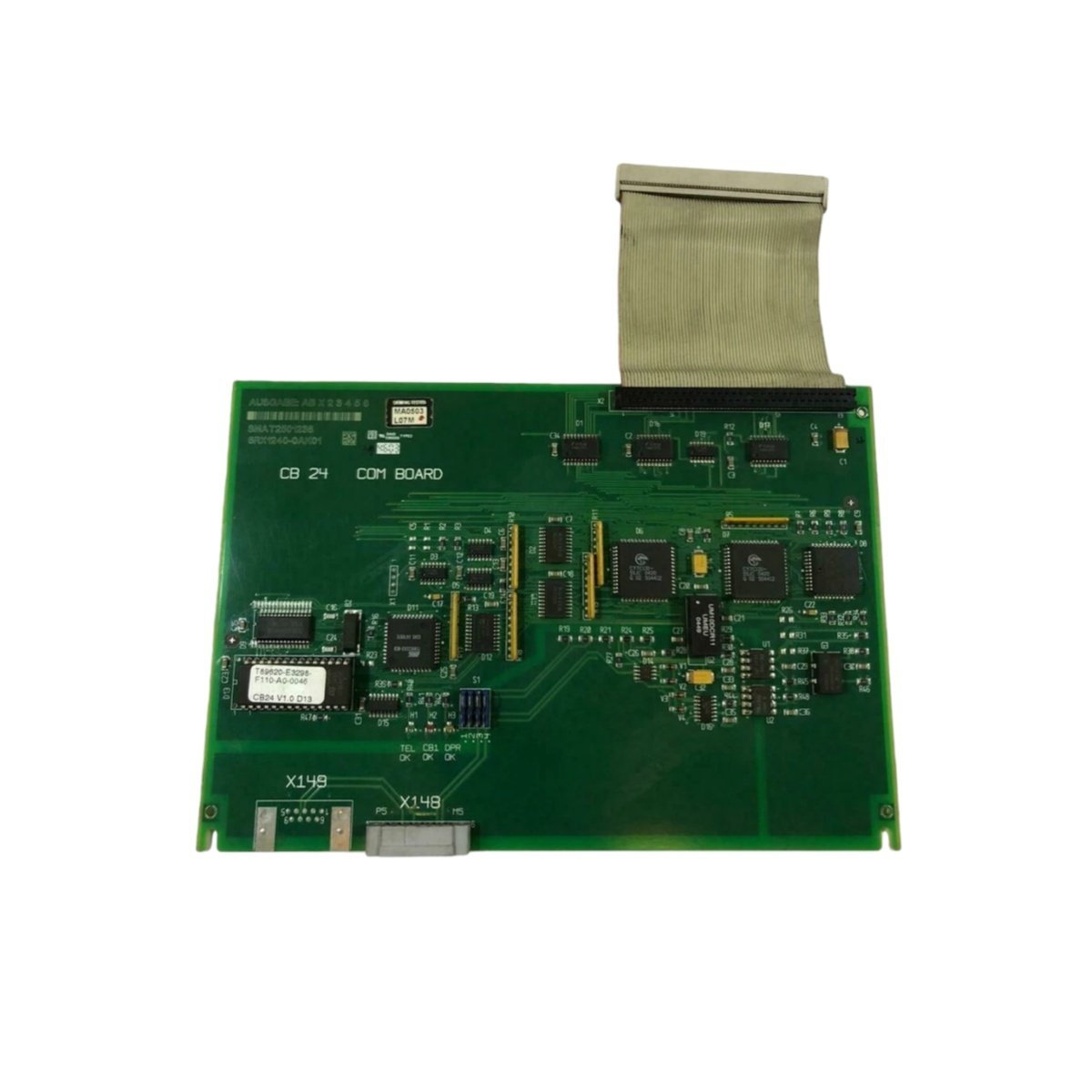

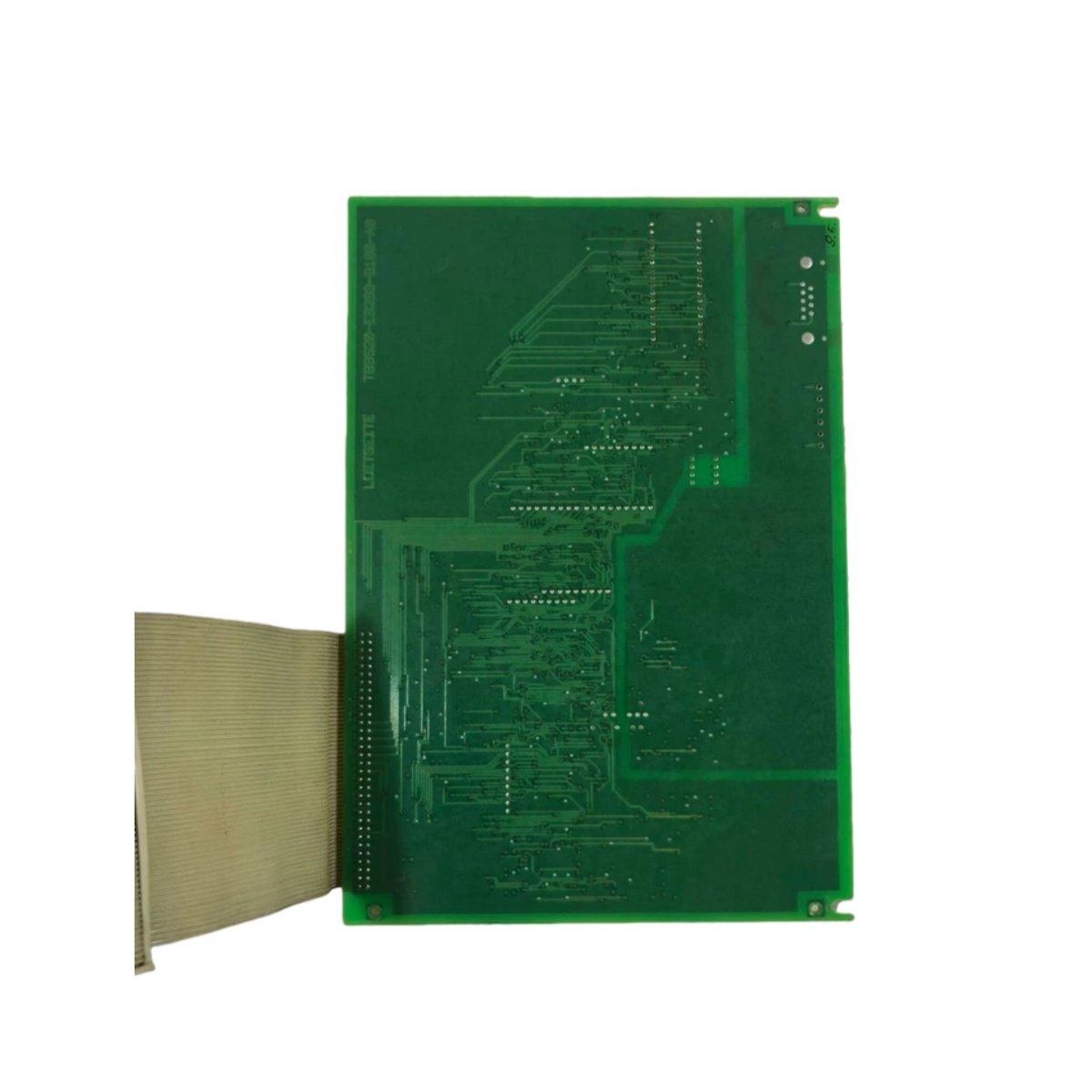

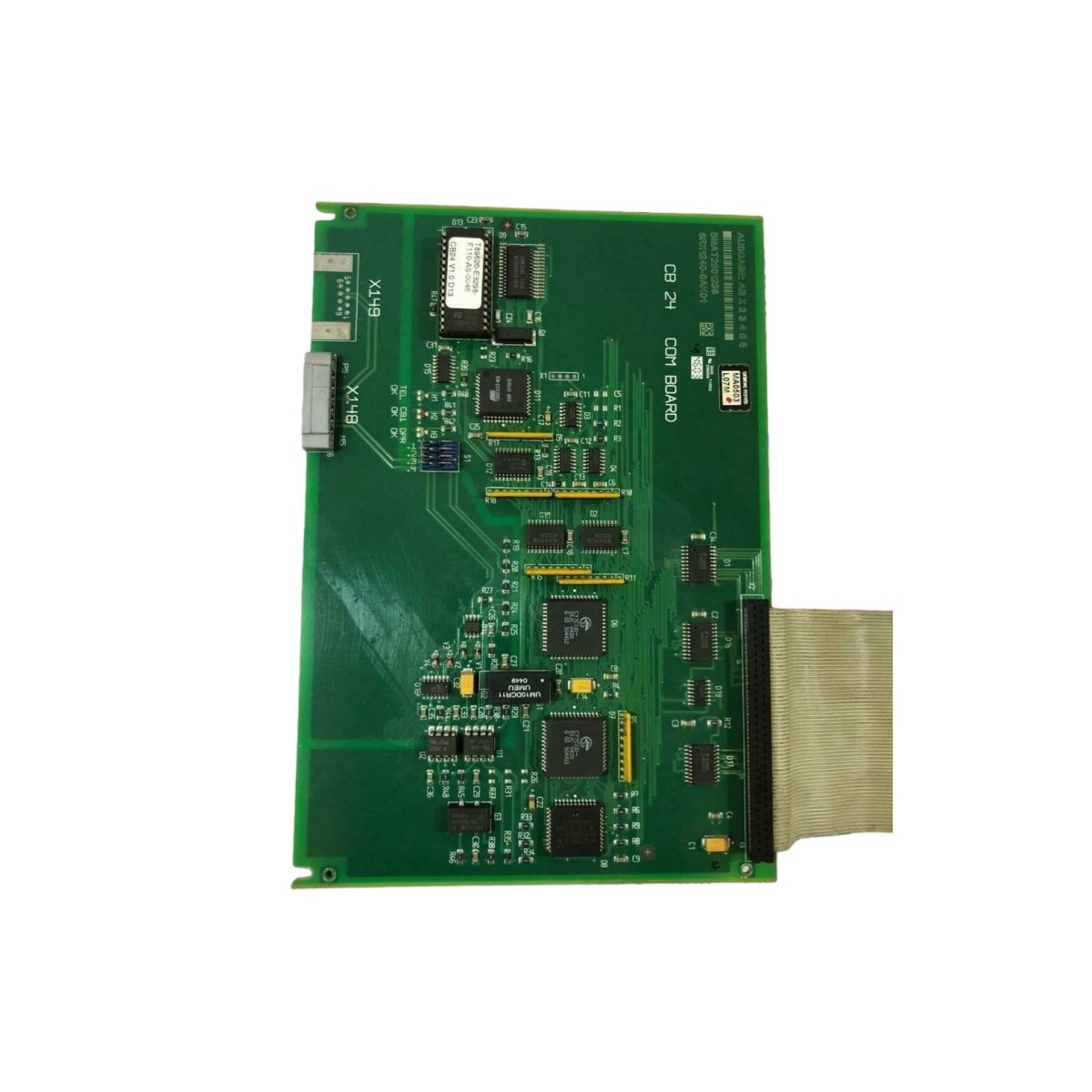

The Siemens 6RX1240-0AK01 functions as a dedicated communication module for the SIMOREG DC-MASTER drive family. This module establishes a reliable data link between the drive unit and higher-level automation networks. It supports both PROFIBUS DP and serial interface protocols. Many DC drive applications depend on this module for seamless process data exchange.

Technical Specifications

The 6RX1240-0AK01 measures 160 mm in height and 80 mm in width. Its compact Eurocard format fits standard SIMOREG drive racks. The module weighs approximately 0.25 kilograms. It draws 200 mA from the 24V DC auxiliary supply.

Communication Architecture

This module features two independent serial ports for flexible connectivity. The first port supports PROFIBUS DP with baud rates up to 12 Mbps. The second port handles USS and 3964R protocols for legacy system integration. An onboard microcontroller manages all protocol translations and data buffering. Two optocouplers provide galvanic isolation for the PROFIBUS interface. This isolation protects the drive electronics from network ground loops. The module acts as a slave device on the PROFIBUS network.

Interface Design and Connectivity

The Siemens 6RX1240-0AK01 uses two standard 9-pin D-sub connectors. One connector handles the PROFIBUS DP interface with dedicated shielding pins. The other connector supports the RS-485 serial link for point-to-point communication. The module connects directly to the drive’s expansion slot. A 10 μF capacitor maintains stable operation during momentary power dips. Two LED indicators show the module’s readiness and communication activity.

Installation and Configuration

Installing the 6RX1240-0AK01 requires a free expansion slot in the SIMOREG drive. The module slides into the drive housing and locks securely. You must set the PROFIBUS address using the onboard DIP switches. Configuration parameters reside in the drive’s parameter set. The module automatically synchronizes with the drive’s clock cycle. It operates reliably across a 0°C to 55°C temperature range. Proper grounding of the cable shield ensures error-free transmission.

Reliability and Diagnostic Features

The Siemens 6RX1240-0AK01 delivers robust performance in industrial environments. Its galvanically isolated interface prevents electrical damage from potential differences. The module stores communication parameters in non-volatile memory. Routine checks of the LED indicators confirm normal operation. The microcontroller performs continuous self-diagnostics during operation.
