RFID Connectivity for Industrial Identification Systems

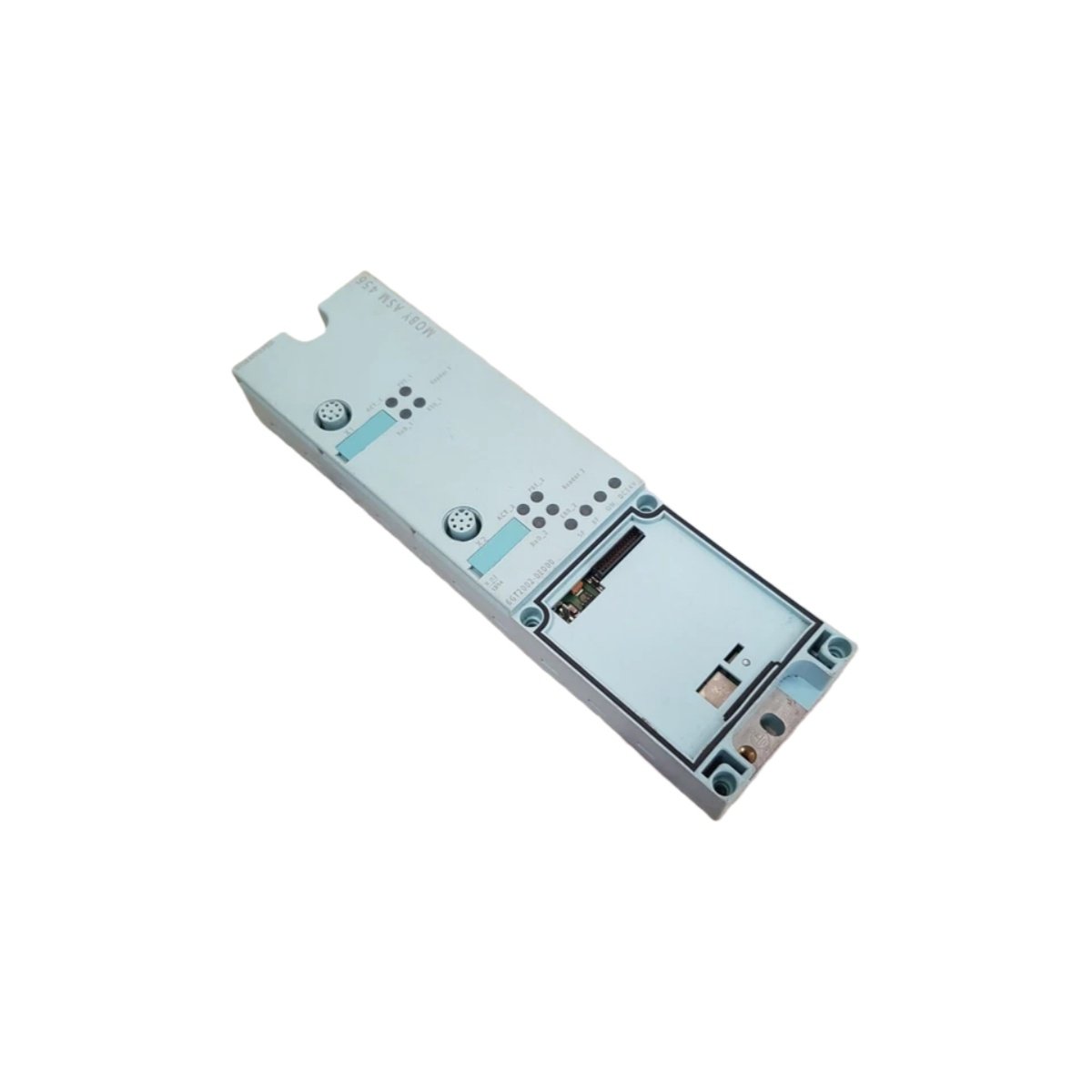

The Siemens 6GT2002-0ED00 serves as a communication module for the SIMATIC RF200 RFID system. This module connects RFID readers and transponders to the higher-level automation network. It handles data exchange between the identification system and the PLC or host computer. Its compact design supports both industrial and logistics applications.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | Siemens 6GT2002-0ED00 |
| Brand | Siemens |
| Category | RFID Communication Module |
| Product Family | SIMATIC RF200 |
| Interface | RS-232 (serial communication) |
| Transmission Rate | Up to 115,200 baud |
| Supply Voltage | 24 VDC |
| Current Consumption | Approx. 100 mA |
| Connection Type | Sub-D connector |
| Antenna Connection | Integrated antenna or external option |
| Read/Write Distance | Dependent on transponder type |
| Operating Frequency | 13.56 MHz (HF band) |
| Dimensions | Compact housing for DIN rail mounting |
| Weight | Approx. 0.15 kg |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Protection Class | IP20 |
Communication Capabilities and Data Exchange
The communication module facilitates reliable data transfer between RFID readers and control systems. It supports standard RS-232 serial communication with adjustable baud rates up to 115,200 bps. The module processes read and write commands from the host controller efficiently. It handles multiple transponder types within the RF200 family seamlessly.
Physical Design and Installation
The Siemens 6GT2002-0ED00 features a compact housing suitable for DIN rail mounting. Its lightweight construction simplifies installation in control cabinets and junction boxes. The Sub-D connector provides a secure interface for serial communication cables. LED indicators display power and communication status for troubleshooting.
System Integration and Compatibility
This module integrates with SIMATIC S7 and other automation systems through standard serial interfaces. It works with all RF200 read/write devices and transponders. The configuration occurs through parameter assignment software. Users can implement the module in both new and existing identification systems.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
