Technical Specifications and Termination Features

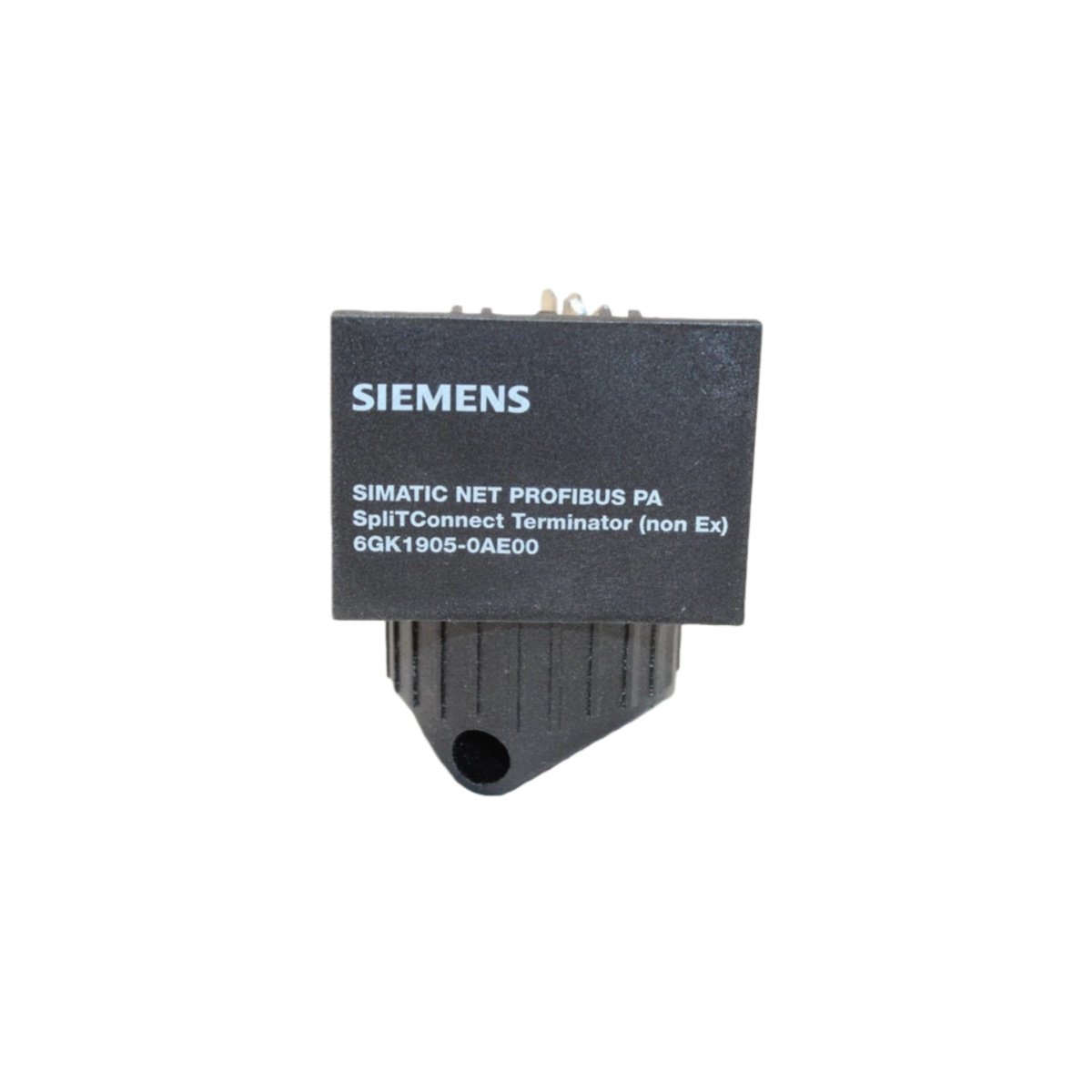

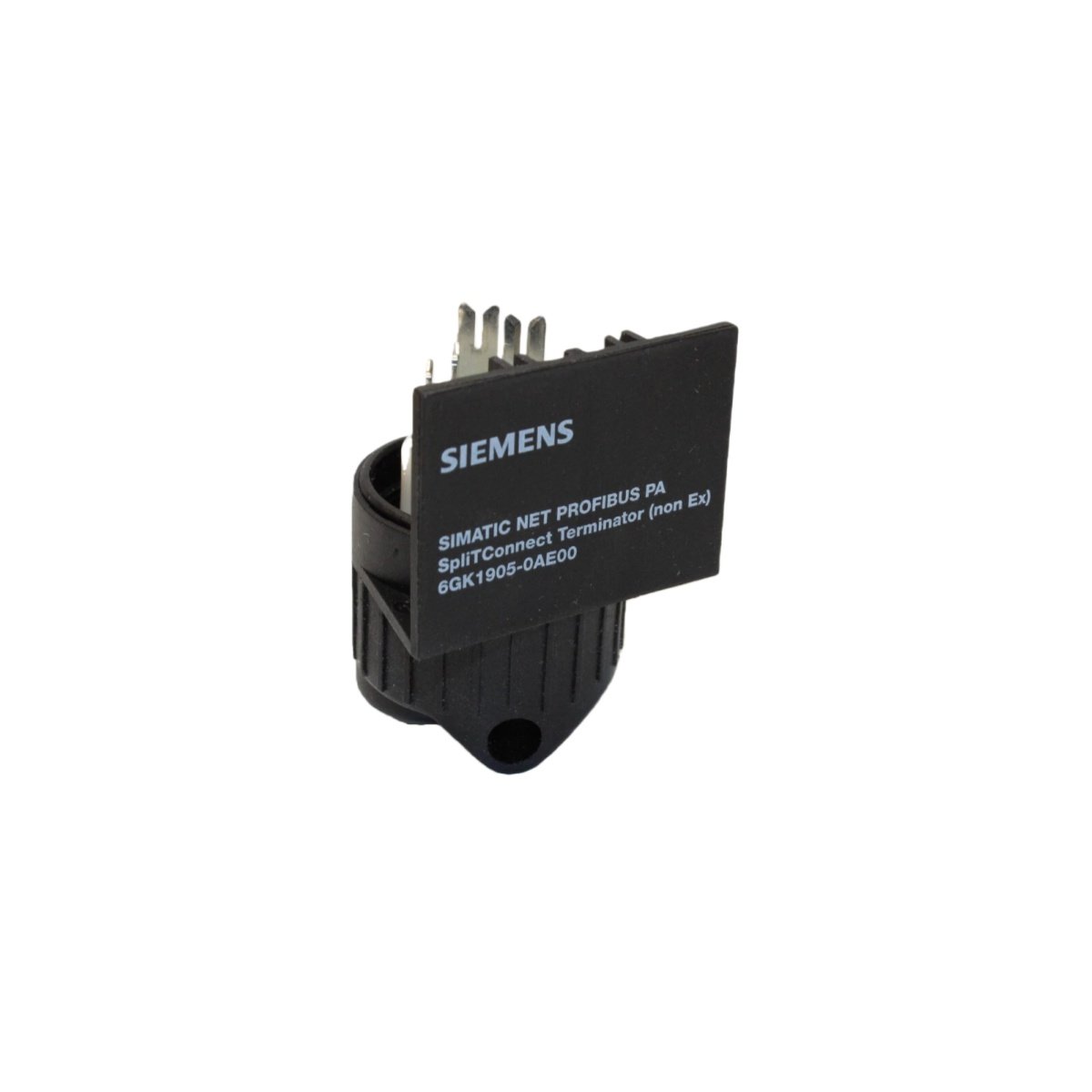

The Siemens 6GK1905-0AE00 SpliTConnect Terminator belongs to the PROFIBUS PA product family and serves as a termination device for PA segments . This module prevents signal reflections by providing proper bus termination at the end of network segments. The terminator comes in a pack of 5 units and features an M12 connector type for easy installation . Its compact design ensures straightforward integration into PROFIBUS PA networks. The device carries a net weight of approximately 0.235 kg per unit .
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model Number | 6GK1905-0AE00 |
| Product Family | SpliTConnect |
| Network Compatibility | PROFIBUS PA |
| Connector Type | M12 plug |
| Packaging Quantity | 5 units per pack |
| Net Weight (per unit) | 0.235 kg |
| Packaging Dimensions | 13.90 x 20.70 x 5.30 cm |
| Protection Rating | IP67 (dust-tight, waterproof) |
| Operating Temperature | -25°C to +70°C |
| Hazardous Area Use | Not permitted |
| RoHS Compliance | Yes (since 2005) |
| Country of Origin | Germany |
Functional Capabilities
The 6GK1905-0AE00 actively terminates PROFIBUS PA segments to ensure signal integrity. It minimizes signal reflections that can degrade communication reliability. The M12 connector provides robust and secure connections in industrial settings. Its IP67 rating ensures reliable operation in dusty and wet environments . This terminator supports high-speed data transmission for demanding automation tasks.
Application Scenarios
This terminator suits PROFIBUS PA networks requiring reliable segment termination. It works in various industrial environments such as factories and process plants. The 6GK1905-0AE00 integrates seamlessly into existing PROFIBUS PA installations. Many automation professionals use this device during network setup and maintenance.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
