Product Overview

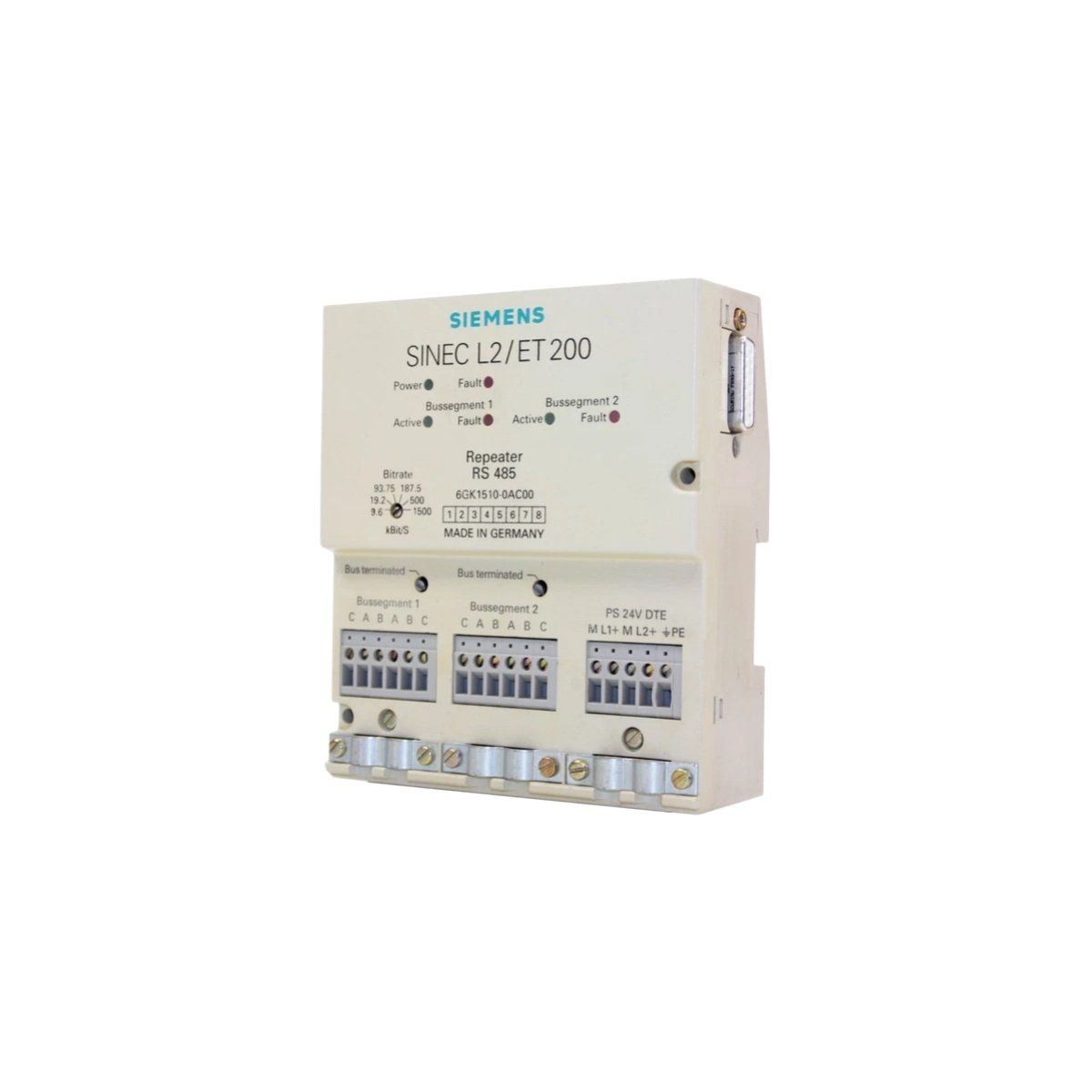

The Siemens 6GK1510-0AC00 regenerates and amplifies PROFIBUS DP signals over extended network distances. This repeater module restores signal integrity on long trunk lines or branched segments. Industrial networks rely on this unit to maintain reliable communication across large factory floors.
Technical Specifications
This repeater module installs directly onto a standard DIN rail within control cabinets. The Siemens 6GK1510-0AC00 features two electrically isolated segments for network partitioning. Its automatic data rate detection simplifies configuration and reduces setup errors. The module’s diagnostic LEDs indicate segment status and fault conditions clearly.
| Parameter | Specification |
|---|---|
| Product Type | PROFIBUS Repeater Module |
| Network Compatibility | PROFIBUS DP (RS-485) |
| Transmission Rate | 9.6 kbps to 12 Mbps (automatic detection) |
| Number of Segments | 2 isolated segments |
| Number of Connectors | 2 x 9-pin D-sub sockets (female) |
| Maximum Segment Length | 1,200 m at 93.75 kbps; 100 m at 12 Mbps |
| Repeater Delay | Approximately 11 bit times per segment |
| Electrical Isolation | 1,500 V AC between segments |
| Supply Voltage | 24 V DC (nominal) |
| Supply Range | 20.4 V to 28.8 V DC |
| Current Consumption | Maximum 0.2 A at 24 V DC |
| Energy Storage | 220 µF capacitor buffers for brief voltage dips |
| Dimensions (W x H x D) | 45 mm x 115 mm x 110 mm |
| Weight | Approximately 0.25 kg |
| Mounting Method | DIN rail (35 mm) |
| Protection Class | IP20 |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
Signal Regeneration Function
This repeater receives incoming signals and retransmits them with refreshed amplitude. The Siemens 6GK1510-0AC00 thus compensates for cable attenuation and electromagnetic interference effects. Its edge shaping circuitry restores sharp signal transitions for accurate data decoding. The module regenerates both the data signal and the corresponding reference potentials.
Network Partitioning and Diagnostics
The Siemens 6GK1510-0AC00 electrically isolates its two segments to protect against ground loops. This isolation prevents fault propagation from one network section to another. Each segment includes independent termination resistors for proper bus behavior. The module signals short circuits and broken wires via front-panel LEDs.
Installation and Configuration
Users mount this repeater on standard 35 mm DIN rails without additional hardware. The Siemens 6GK1510-0AC00 automatically detects the network baud rate upon power-up. Manual configuration switches allow users to set segment termination and grounding options. The module’s compact width saves valuable rail space in crowded cabinets.
Application Scenarios
System integrators deploy this repeater when connecting multiple control cabinets across large sites. It also extends PROFIBUS networks into remote outdoor equipment enclosures. The Siemens 6GK1510-0AC00 provides a cost-effective solution for network topology challenges.
Details
| Weight | 0.25 kg |
|---|---|
| Dimensions | 45 × 115 × 110 mm |
