Communication Processor for SIMATIC S5 Networks

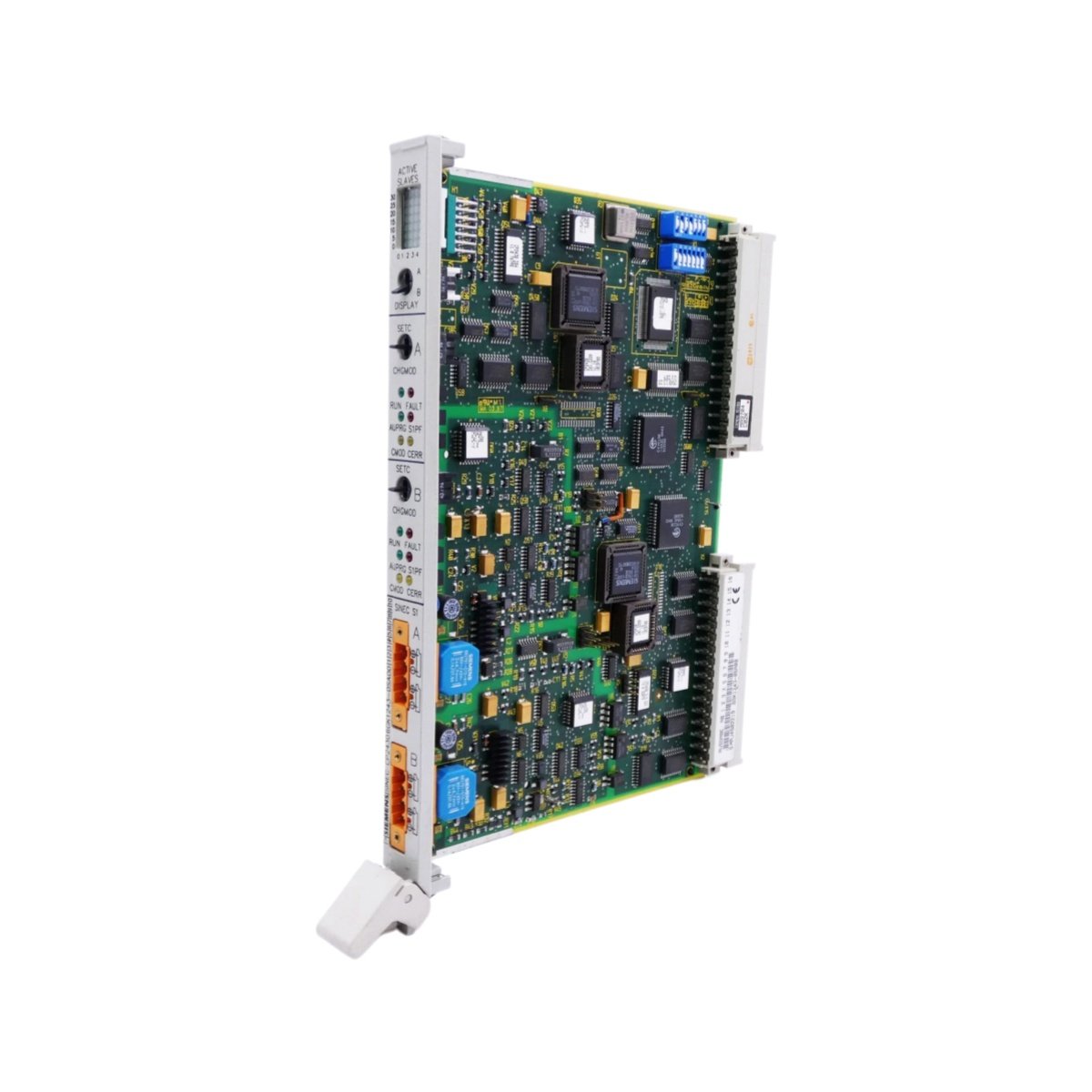

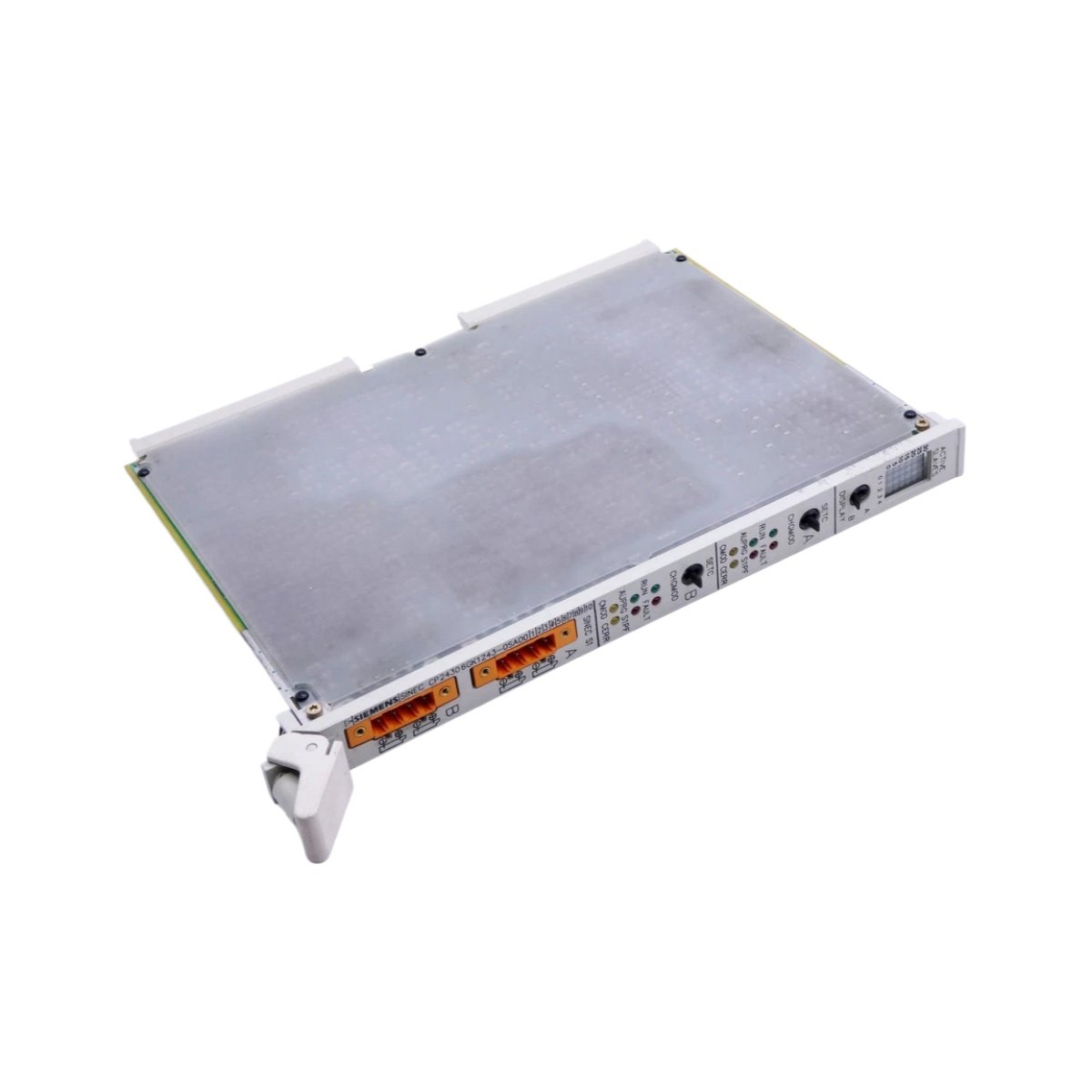

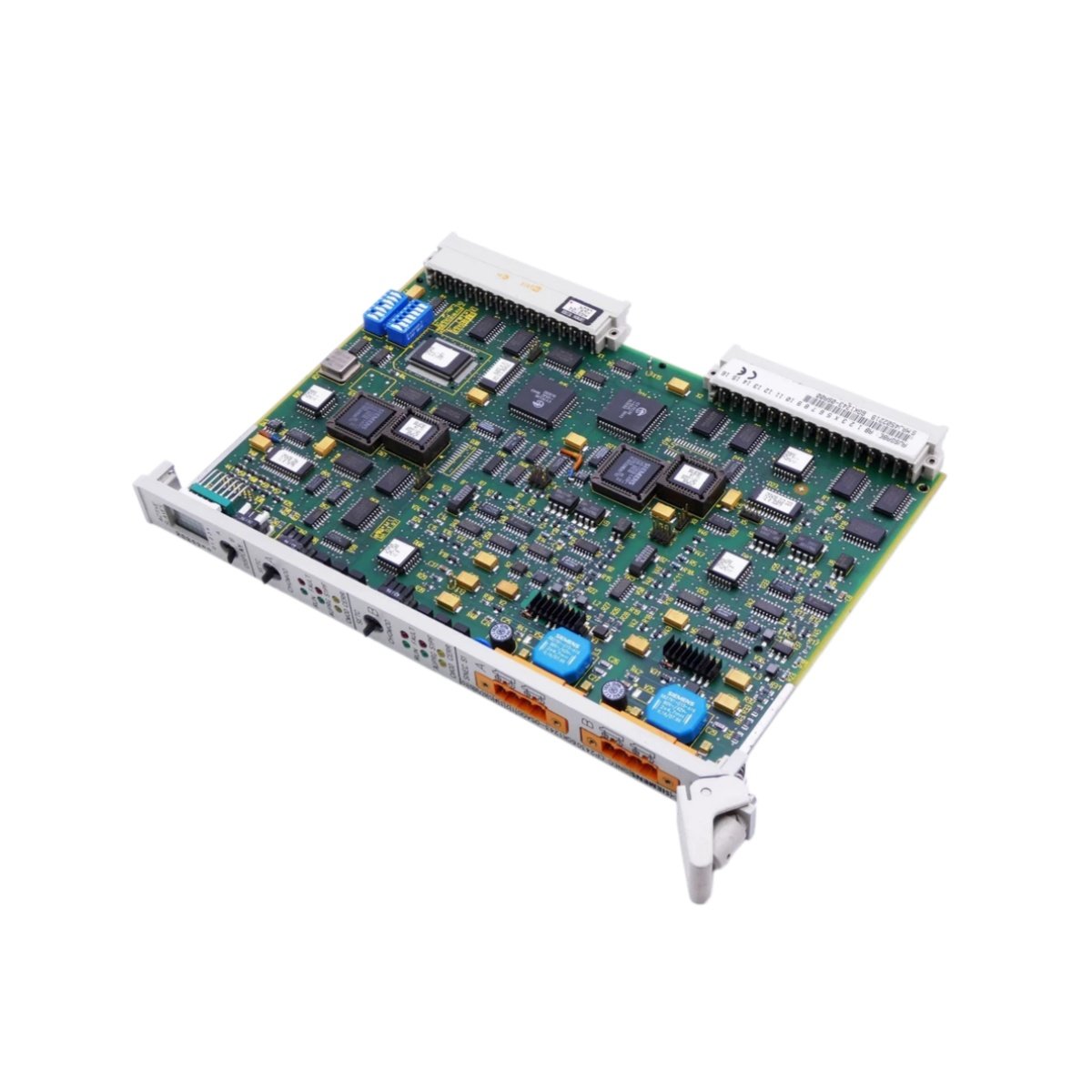

The Siemens 6GK1243-0SA00 functions as a communication processor for the SIMATIC S5 automation platform. This module enables connectivity between S5 controllers and industrial Ethernet networks. Its design supports data exchange with higher-level systems and field devices.

Network Connectivity and Protocol Support

This communication processor provides an Ethernet interface for network integration. A built-in processor manages protocol handling and data packet routing. The module supports ISO and TCP/IP protocols for flexible connectivity. Moreover, this interface enables seamless integration with plant-wide automation networks. Consequently, operators can access S5 data from supervisory systems.

Hardware Integration and Physical Specifications

The 6GK1243-0SA00 fits directly into the standard SIMATIC S5 rack. Its module dimensions comply with S5 form factor requirements for straightforward installation. The module draws power from the S5 backplane for normal operation. Additionally, front-panel LEDs provide clear link and activity status indication. For this reason, maintenance personnel can quickly diagnose network issues.

Environmental Ratings and System Compatibility

This communication processor operates reliably from 0 °C to 60 °C ambient temperature. Its robust design withstands typical industrial environmental conditions. The module integrates seamlessly with S5 processors and power supplies. Furthermore, it supports legacy S5 systems requiring Ethernet connectivity. Consequently, this module extends the useful life of existing S5 installations.
