Product Overview
The Siemens 6GK1100-0BA00 serves as a dedicated ITP plug-in transceiver for Industrial Ethernet networks. This component connects data terminal equipment without an integrated twisted-pair transceiver to Industrial Twisted Pair networks . The unit belongs to the established SIMATIC NET product family and ensures reliable physical layer conversion .
Technical Specifications
This transceiver plug operates as a physical layer adapter for industrial communication applications. We designed the 6GK1100-0BA00 for straightforward installation directly onto the AUI interface of your terminal equipment.
| Parameter | Specification |
|---|---|
| Product Type | ITP Plug-in Transceiver |
| Connector Type | 15-pin (male and female) |
| Network Compatibility | Industrial Ethernet (H1 / SINEC H1) |
| Mounting | Plug-in / Direct connection |
| Weight | Approx. 0.09 kg |
| Application | DTE connection to Industrial Twisted Pair networks |
Key Features and Design

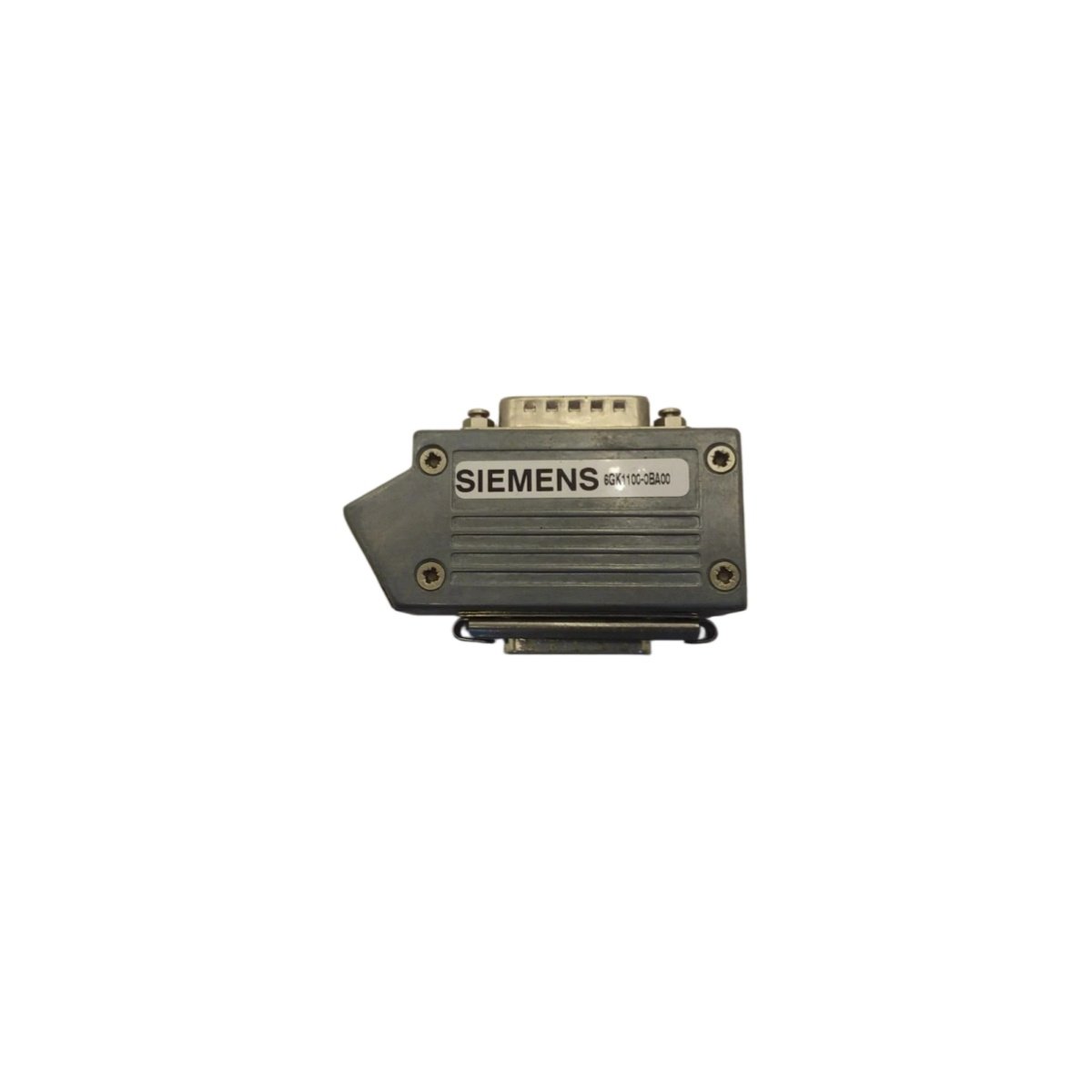

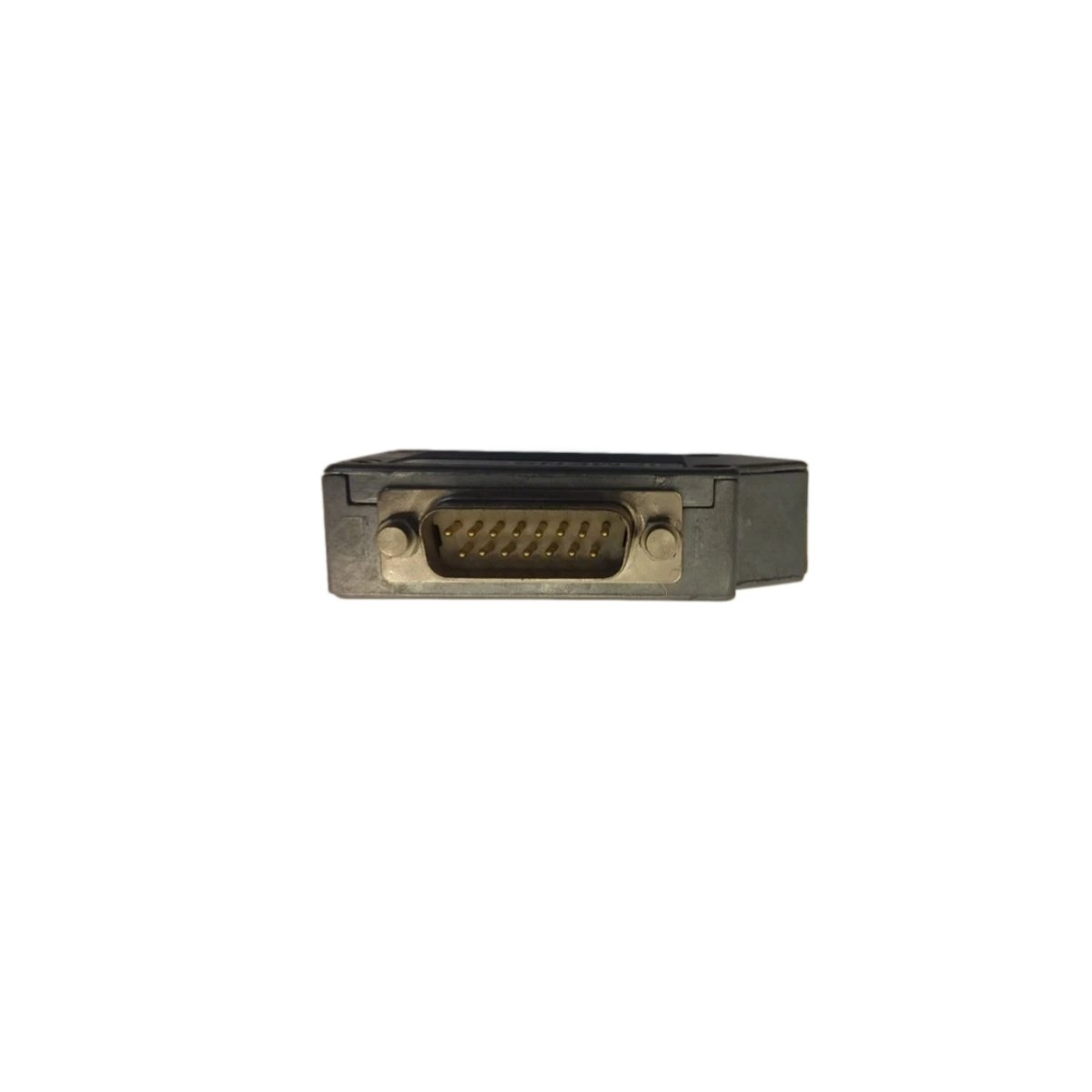

This transceiver provides a straightforward solution for integrating devices lacking a built-in TP interface into your Industrial Ethernet infrastructure. The 6GK1100-0BA00 features a 15-pin male connector on one end and a 15-pin female connector on the opposite side, which facilitates secure and simple connections . Furthermore, the device supports connection to Industrial Twisted Pair (ITP) cabling systems for reliable data transmission .
Application and Integration
This transceiver proves essential for connecting older or specialized devices to modern industrial network topologies. The 6GK1100-0BA00 integrates effectively into SIMATIC NET environments and other compatible industrial control systems . Consequently, this product enables seamless network communication between various automation components.
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 25 × 130 × 100 mm |
