WF 725 B Positioning Control for Absolute and Incremental Encoders

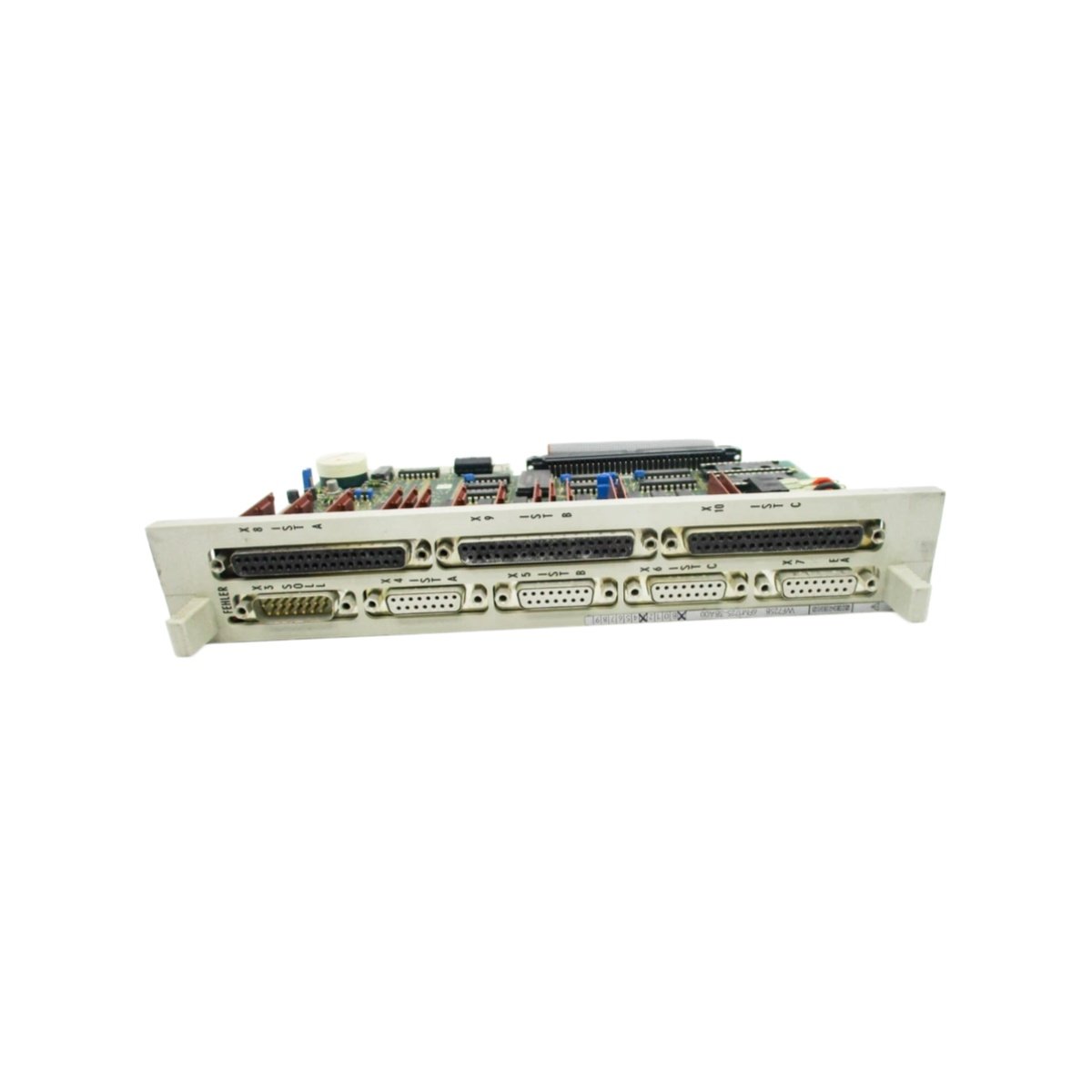

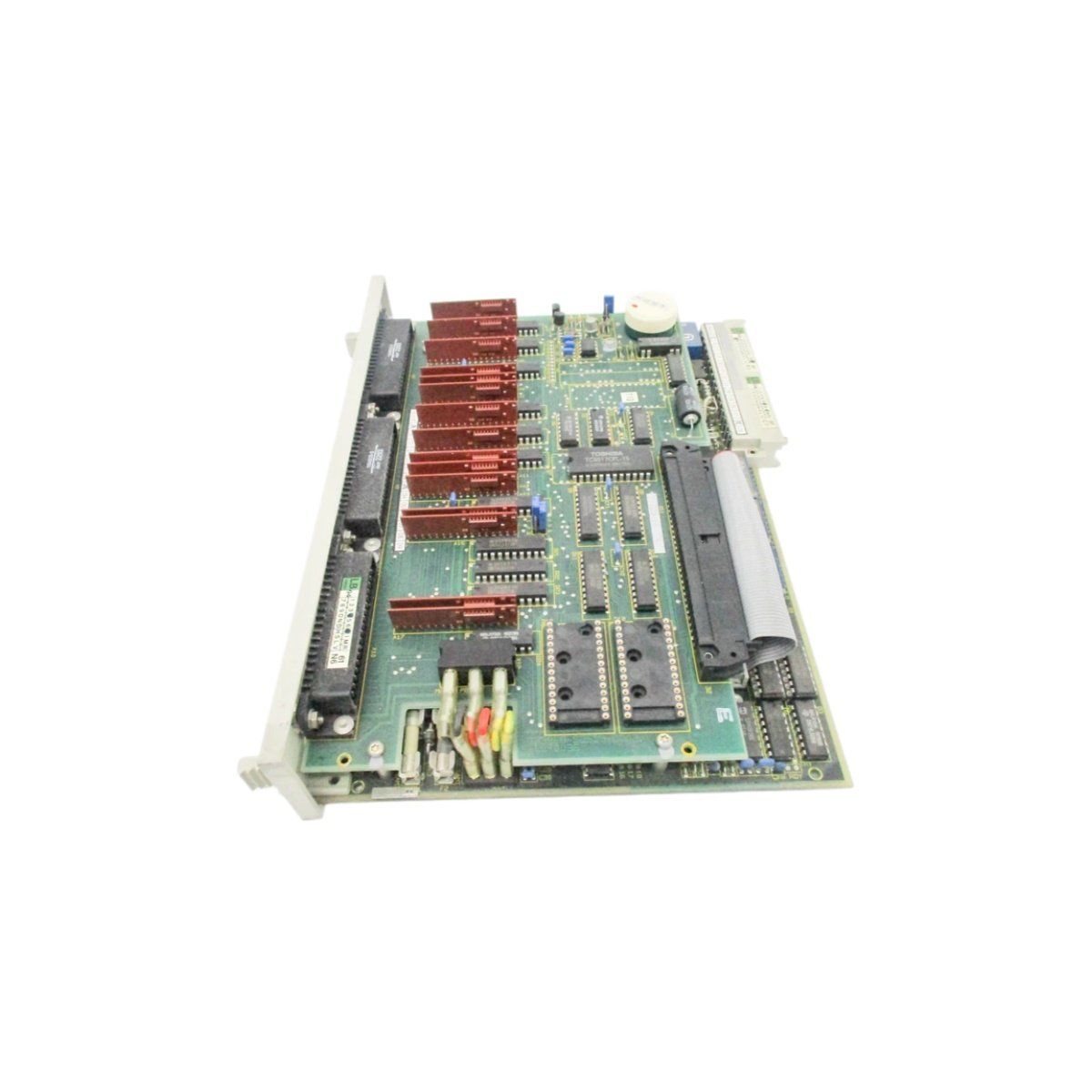

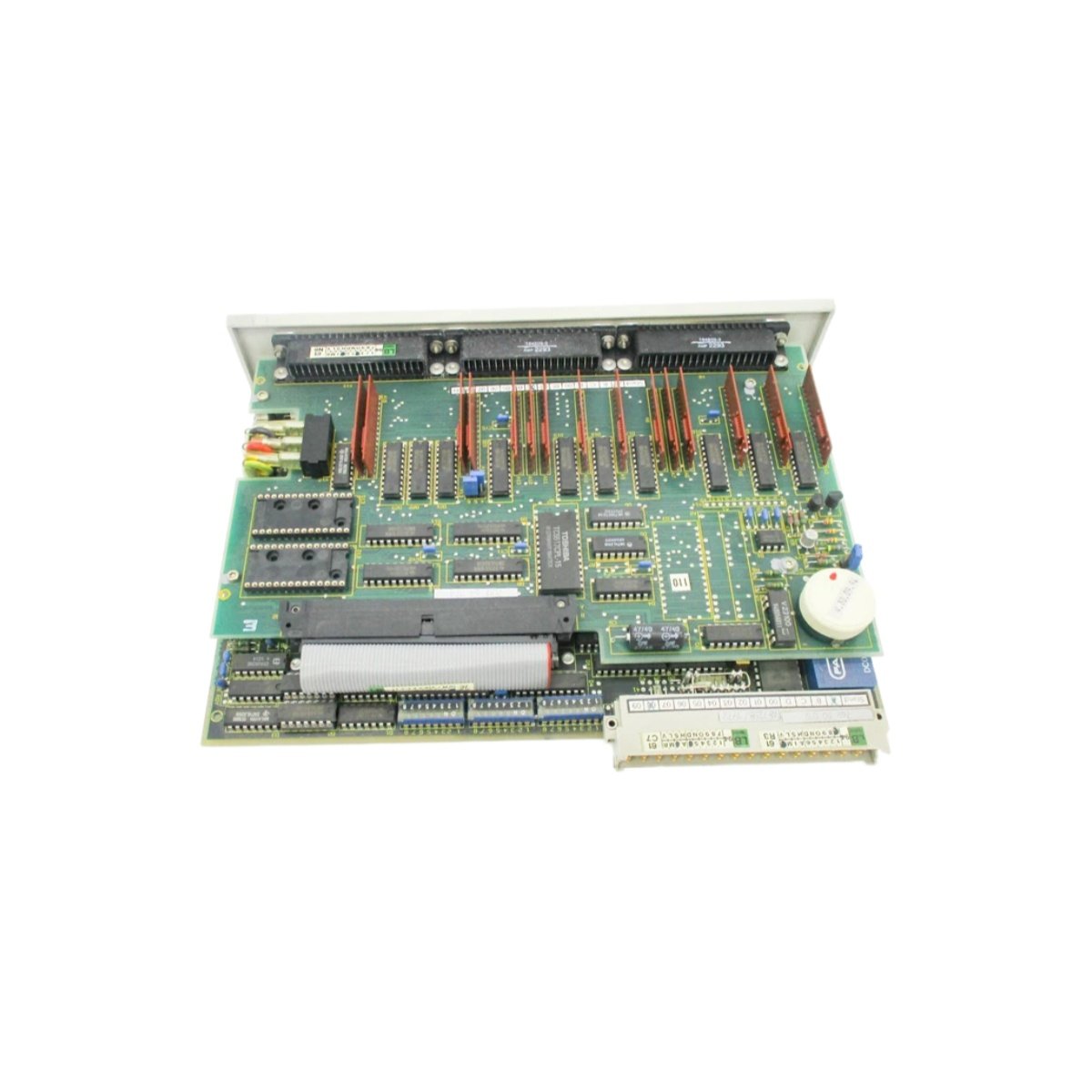

The 6FM1725-3BA00 serves as a dedicated positioning module within the Siemens SIMATIC S5 automation family. Engineers deploy this WF 725 B unit to execute precise motion control tasks across manufacturing, robotics, and automotive applications. Consequently, the module enables accurate position feedback and smooth operation for demanding industrial processes.

Technical Specifications

Positioning Performance

The module delivers exceptional accuracy with a positioning tolerance of just ±0.01 millimeters. This precision suits tasks requiring exact tool placement and repeatable motion sequences. Therefore, the 6FM1725-3BA00 handles applications where even minor deviations would compromise product quality.

Communication and Integration

Engineers connect this module to S5 controllers through RS232, Profibus, or Ethernet interfaces. The flexible communication options simplify integration with existing automation architectures. Additionally, the user-friendly interface allows operators to monitor parameters and adjust settings with minimal training.

Environmental Durability

The compact form factor measuring 160 × 120 × 40 millimeters fits installations with limited cabinet space. An operating temperature range of -10°C to +55°C supports deployment in varied industrial settings. Furthermore, the IP20-rated enclosure protects internal components from dust and debris.
