Product Overview
The Siemens 6FM1706-3AB10 combines high-speed counting and single-axis positioning within one compact module. This dual-function unit serves motion control and frequency measurement applications simultaneously. Production lines use this module for precise product counting and synchronized movement tasks. The integrated design reduces slot requirements and simplifies system architecture.
Technical Specifications

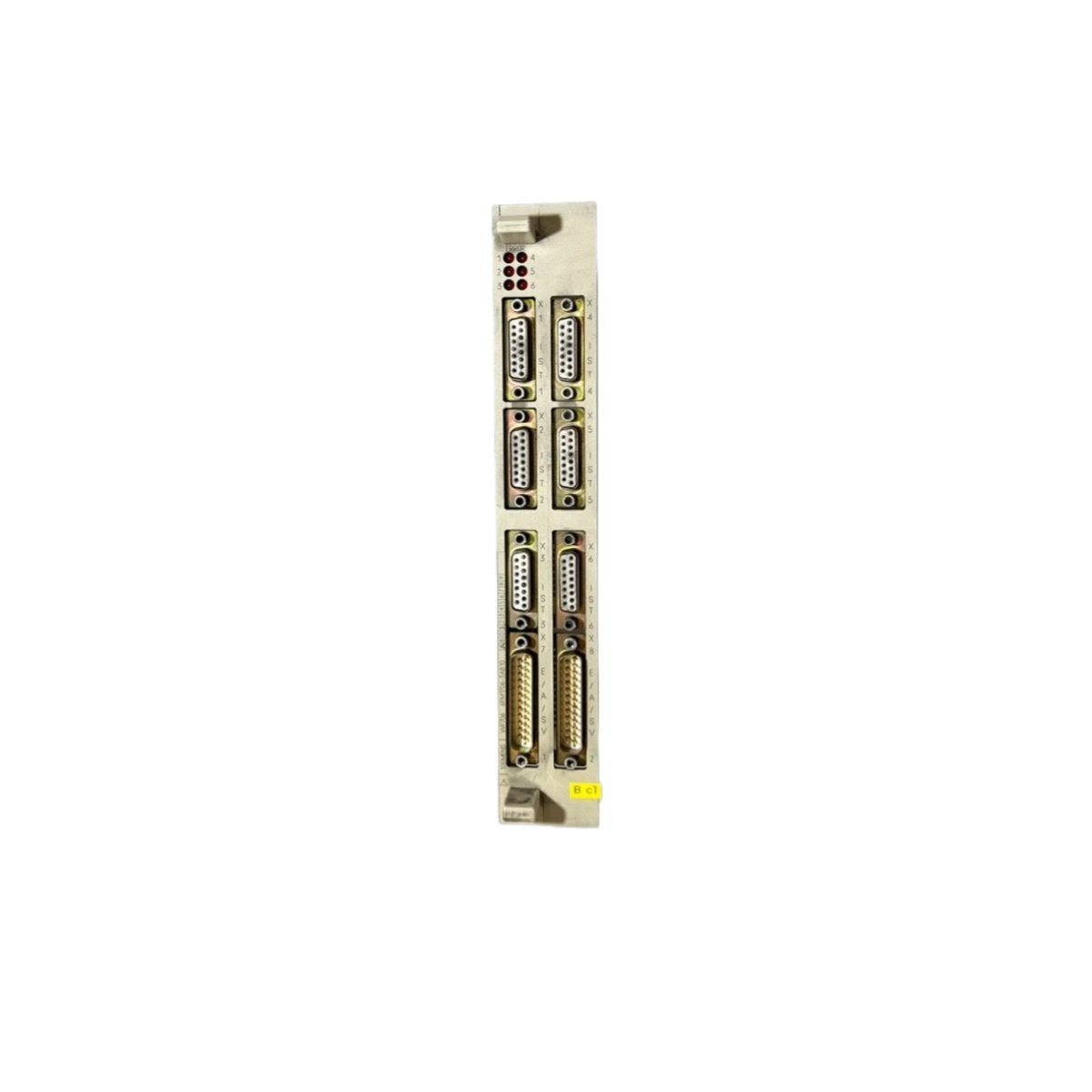

This multifunction module fits into any standard S5 series rack slot. The Siemens 6FM1706-3AB10 incorporates two independent 16-bit counters and a positioning controller. Its hardware handles encoder signals up to 100 kHz without CPU intervention. The module’s front panel provides LED indicators for status and diagnostics.
| Parameter | Specification |
|---|---|
| Product Type | Positioning and Counter Module |
| Series Compatibility | Siemens SIMATIC S5 |
| Dimensions (W x H x D) | 25 mm x 290 mm x 210 mm |
| Weight | Approximately 0.70 kg |
| Number of Counters | 2 independent 16-bit counters |
| Maximum Count Frequency | 100 kHz per channel |
| Counter Resolution | 16-bit (0 to 65,535) |
| Number of Positioning Axes | 1 axis |
| Pulse Output Frequency | Up to 50 kHz (RS-422) |
| Encoder Input | Incremental encoder (5 V or 24 V) |
| Encoder Resolution | Up to 5,000 pulses/revolution |
| Input Channels | 4 digital inputs for sensors and limit switches |
| Output Channels | 2 digital outputs for motor enable and direction |
| Memory | 4 KB RAM for positioning data and counter values |
| Energy Storage | 470 µF capacitor for data retention (72 hours) |
| Supply Voltage | 5 V DC from backplane |
| Current Consumption | Maximum 0.50 A |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
Counter Functionality
The Siemens 6FM1706-3AB10 performs frequency measurement and totalizing operations effectively. Its dual counters operate independently with individual gate and reset controls. Users configure each counter for up-counting, down-counting, or quadrature decoding modes. The module captures count values at specific events for precise process control.
Positioning Capabilities
This module executes single-axis positioning tasks with integrated acceleration profiles. The Siemens 6FM1706-3AB10 supports absolute referencing and relative movement commands. Its closed-loop design monitors encoder feedback for accurate position verification. The module’s pulse output drives stepper motors or servo amplifiers directly.
Configuration and Integration
Engineers program this module using STEP 5 with dedicated function blocks. The Siemens 6FM1706-3AB10 stores configuration parameters in non-volatile memory. Users define limit values, scaling factors, and homing sequences through data blocks. The module exchanges counter values and position data with the CPU via I/O image.
Application Scenarios
Packaging lines deploy this module for container counting and synchronized cutter control. Textile machinery uses it for length measurement and fabric feeding applications. The Siemens 6FM1706-3AB10 also serves in conveyor tracking and parts indexing systems.
Details
| Weight | 0.70 kg |
|---|---|
| Dimensions | 25 × 290 × 210 mm |
