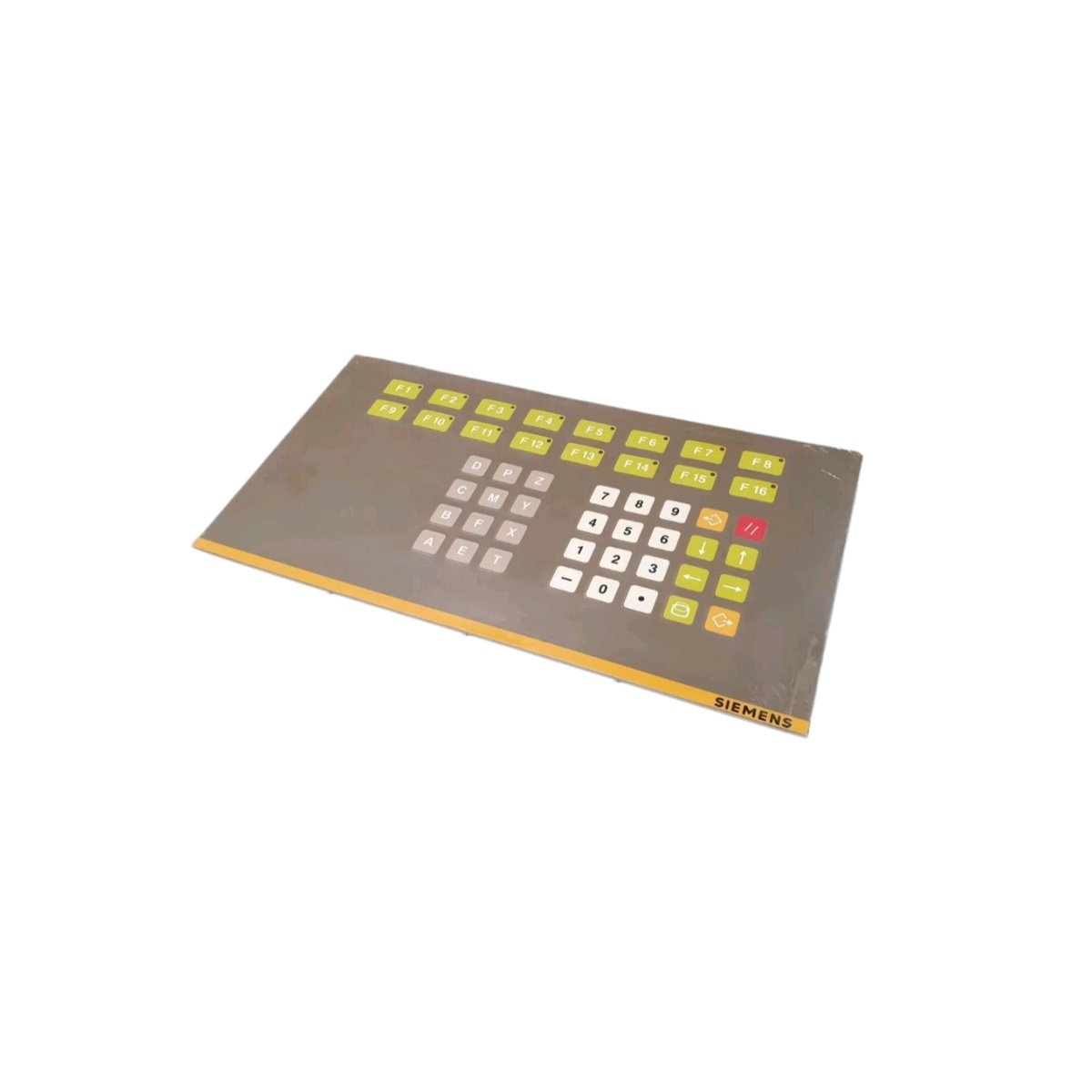

The 6FM1495-1BB10 delivers a compact control keypad system for Siemens operator interface applications. This unit combines tactile membrane keys with a durable front panel assembly. Consequently, machine builders gain a reliable input device for harsh production environments.

Technical Specifications Overview

The 6FM1495-1BB10 balances small footprint dimensions with robust industrial materials. Moreover, its parameter set helps engineers plan panel cutouts and wiring routes accurately.

Interface and Connection Details

The 6FM1495-1BB10 links to its host through a flat ribbon cable. Therefore, wiring remains simple inside crowded control cabinets. The 24-key membrane layout covers numeric entry, cursor movement, and function commands. In addition, the unit draws 5 V DC directly from the connected controller.

Physical Characteristics and Mounting

This keypad measures roughly 200 mm wide and 120 mm high. Furthermore, its 25 mm depth suits shallow panel enclosures. The 6FM1495-1BB10 weighs about 0.4 kg. Consequently, it adds negligible load to swinging door assemblies. Installation uses a standard panel cutout, then the front bezel snaps into place.

Operational Role and Maintenance

Operators use the 6FM1495-1BB10 for parameter entry and machine jogging tasks. Meanwhile, the sealed membrane surface resists dust, coolant, and light oils. The keypad contains no battery or capacitor for energy storage. Thus, it avoids periodic cell replacement work. Instead, it relies fully on the host controller for power.
