Product Overview

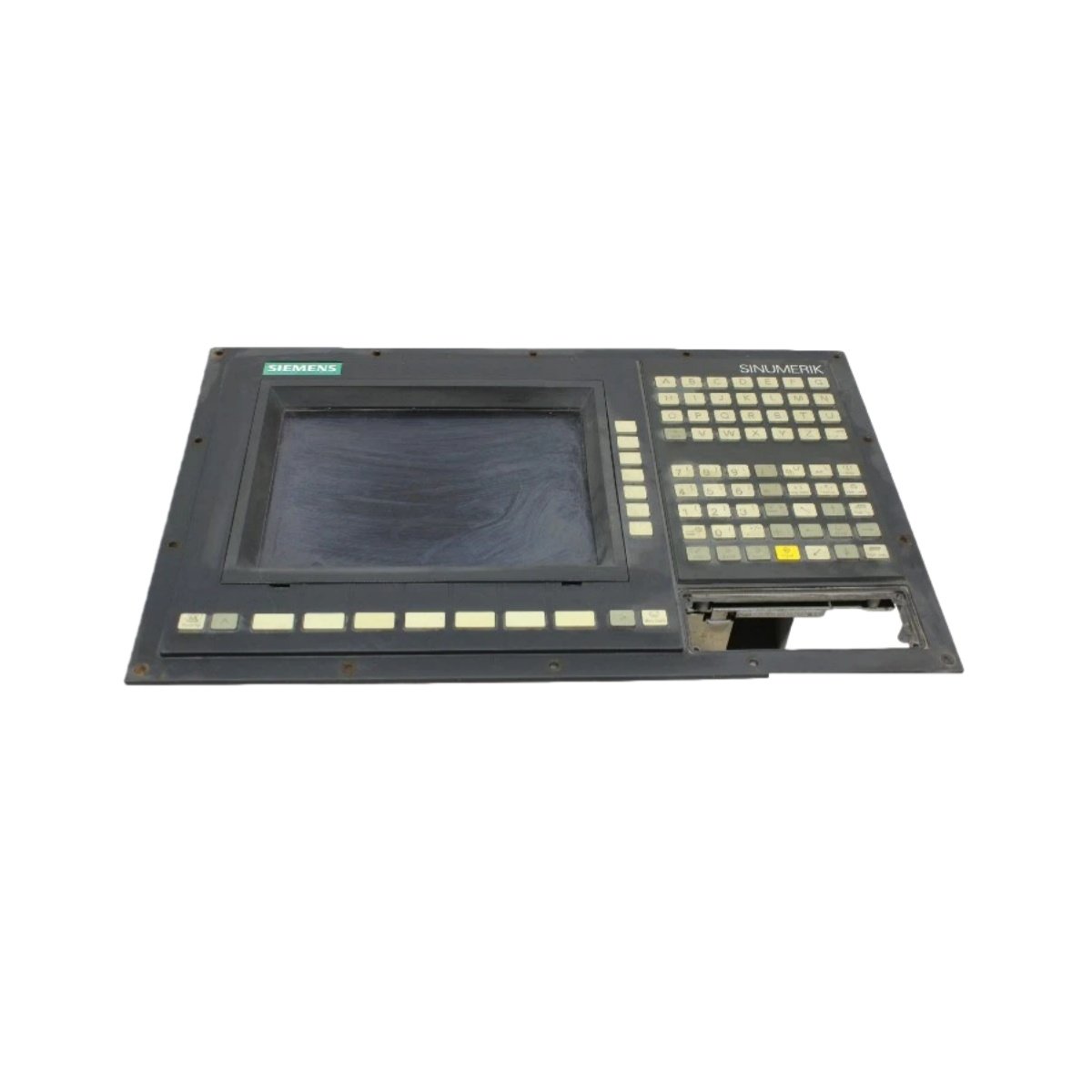

This operator interface provides centralized control and monitoring for Siemens CNC and automation systems. Machine operators rely on this panel for real-time process visibility and command execution. The 6FC5103-0AB03-0AA3 features a high-contrast display with dedicated function keys for rapid navigation. Its membrane keypad withstands repeated actuation in demanding shop-floor environments. Maintenance technicians appreciate the modular design for quick screen replacement. The unit connects through standard serial and fieldbus interfaces for flexible system integration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Display Type | Monochrome LCD with LED backlight |
| Display Size | 10.4 inches (diagonal) |
| Display Resolution | 640 x 480 pixels (VGA) |
| Keypad Type | Membrane with 48 tactile keys |
| Function Keys | 24 configurable soft keys |
| Communication Ports | RS-232, RS-422, MPI, PROFIBUS DP |
| Interface Connectors | 9-pin D-sub, 15-pin D-sub, RJ45 |
| Input Voltage | 24 VDC ±20% |
| Power Consumption | ≤15 W |
| Internal Memory | 2 MB Flash, 1 MB RAM |
| Data Retention | Battery-backed SRAM (3.6V lithium) |
| Operating Temperature | 0°C to +45°C |
| Storage Temperature | –20°C to +60°C |
| Protection Rating | IP54 (front panel) |
| Dimensions (W x H x D) | 310 mm x 230 mm x 65 mm |
| Cutout Dimensions | 285 mm x 205 mm |
| Weight | 2.8 kg |
| Mounting Type | Panel-mount with spring clips |
Display and Visual Feedback
The 6FC5103-0AB03-0AA3 delivers crisp text and graphics through its 10.4-inch VGA LCD panel. LED backlight technology ensures consistent brightness across the entire viewing surface. The display shows machine status, axis positions, program data, and alarm messages simultaneously. Adjustable contrast and brightness accommodate various ambient lighting conditions. A screen-saver mode extends the backlight’s operational lifespan during idle periods.
Keypad Layout and User Interaction
Forty-eight tactile membrane keys provide positive feedback for every user press. Twenty-four soft keys adapt their functions based on the current operating screen. Dedicated emergency-stop and machine-start buttons enable rapid safety responses. The keypad’s spill-resistant design protects against coolant and oil exposure. Numeric keypad facilitates quick data entry of offset values and program parameters.
Communication and Connectivity
Multiple serial interfaces support connections to CNC controllers, PLCs, and programming devices. RS-232 and RS-422 ports handle point-to-point communication with legacy equipment. PROFIBUS DP connectivity enables integration into modern distributed control networks. MPI port allows direct programming access without additional adapters. The unit acts as a data concentrator for machine-mounted sensors and actuators.
Memory and Data Persistence
Two megabytes of Flash memory store application screens and configuration files permanently. One megabyte of RAM supports dynamic data processing and screen caching. The battery-backed SRAM retains critical machine parameters during power outages. A replaceable 3.6-volt lithium cell preserves data for over five years. Firmware updates occur through the serial interface using standard Siemens download tools.
Mechanical Construction and Panel Installation
The sturdy metal housing weighs 2.8 kilograms and mounts securely with spring clips. The 310-millimeter width fits standard machine control panel cutouts. An IP54 front rating resists dust ingress and water splashes from washing operations. Rear-mounted connectors minimize cable strain and simplify routing. The unit’s shallow 65-millimeter depth allows installation in confined spaces.
Details
| Weight | 2.8 kg |
|---|---|
| Dimensions | 310 × 230 × 65 mm |
