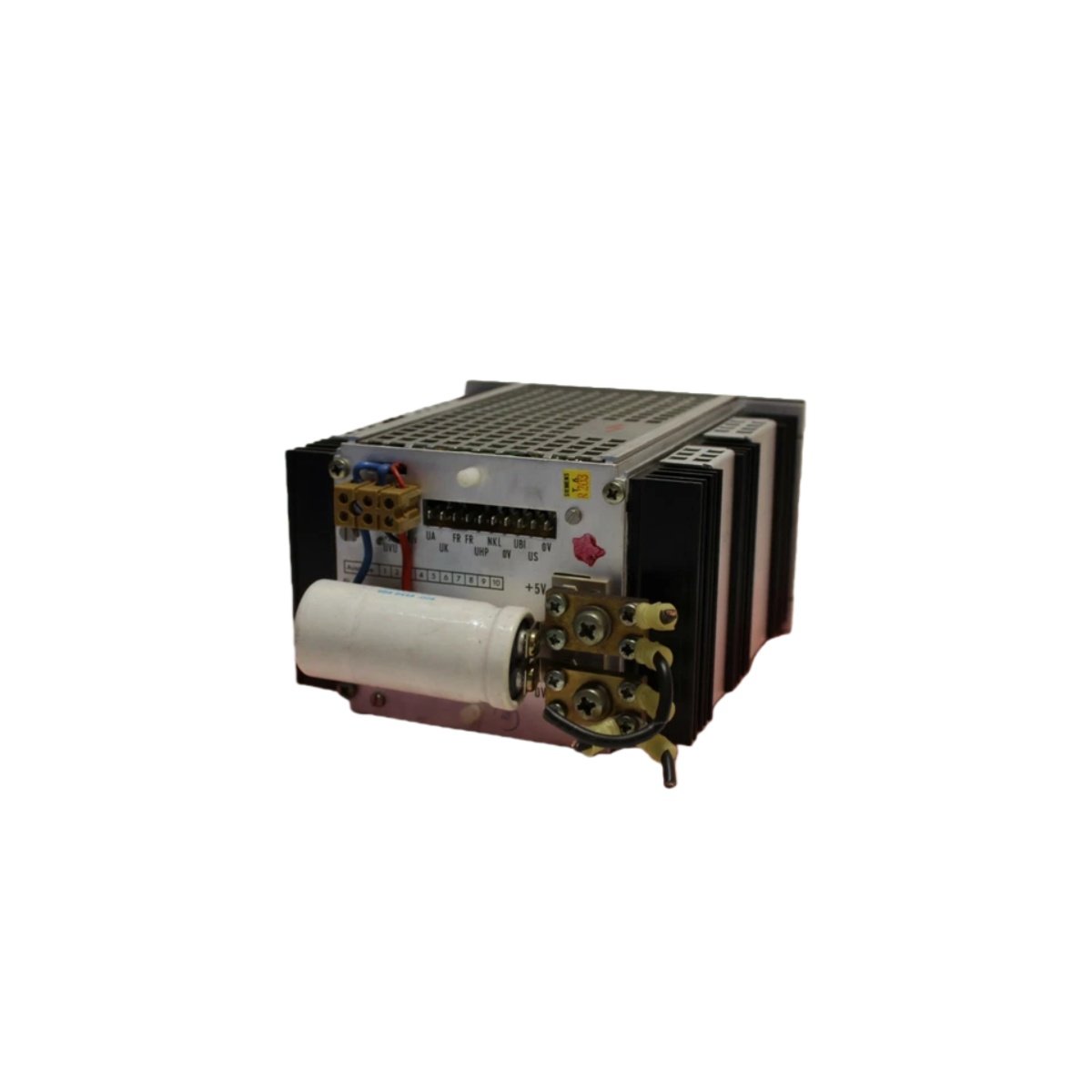

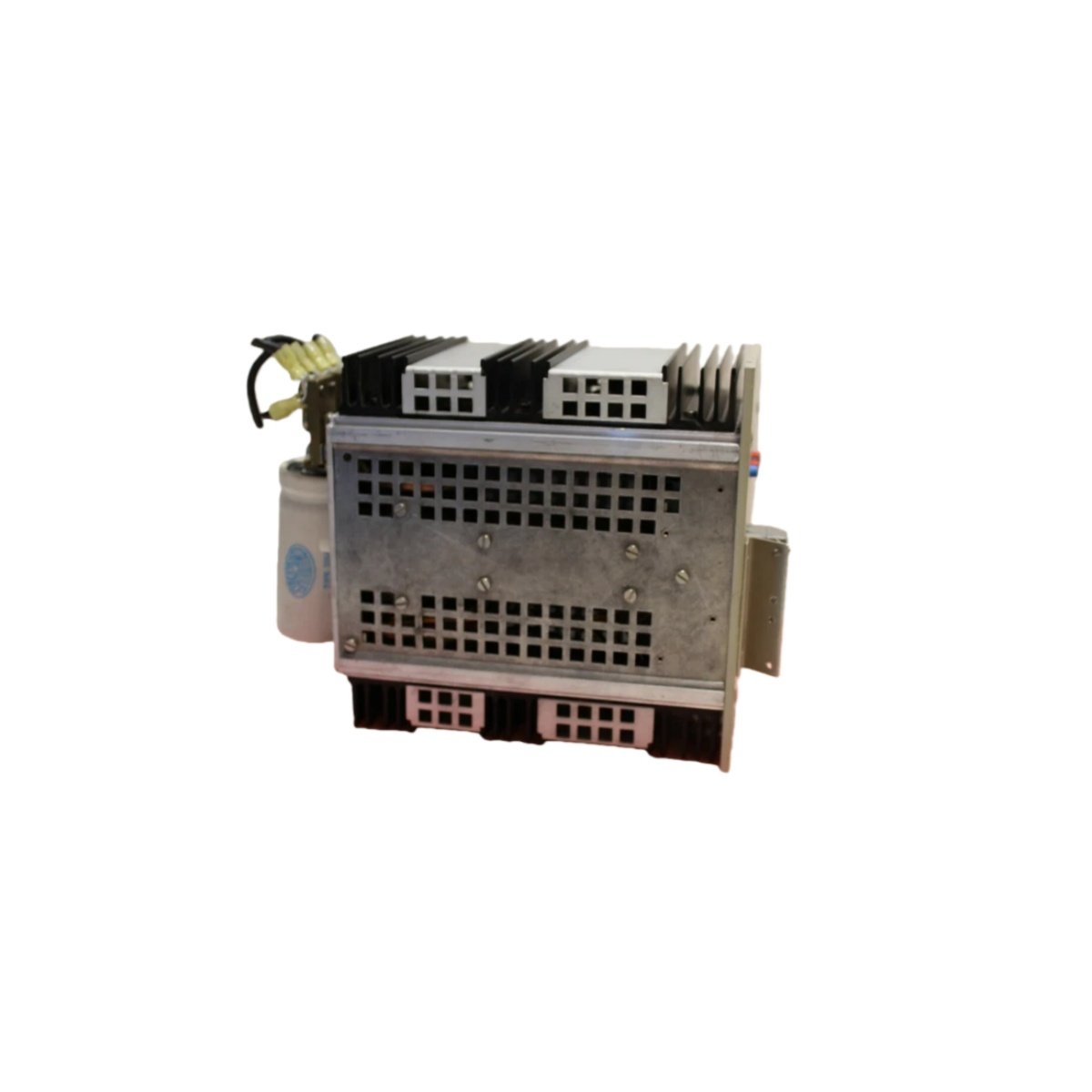

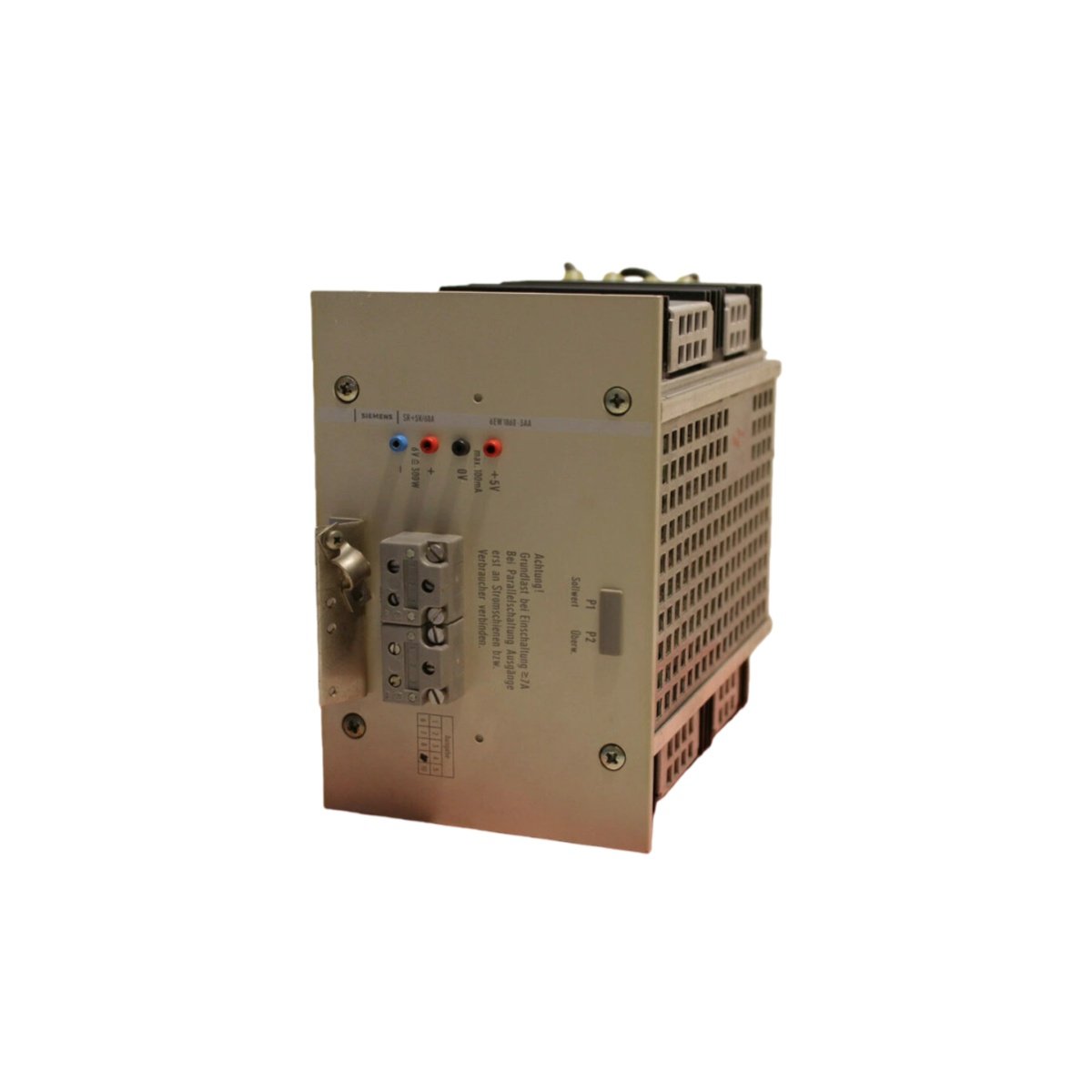

Industrial control systems demand precise voltage regulation to protect sensitive electronics and ensure consistent operation. The Siemens 6EW1860-3AA voltage regulator module delivers reliable power conditioning for demanding automation environments. This module maintains output stability within ±1% under varying load conditions.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage Range | 85–264V AC (47–63 Hz) |
| Output Voltage | 24V DC (adjustable ±10%) |
| Output Current | 20A continuous |
| Efficiency | 90% typical at full load |
| Ripple & Noise | ≤50 mV peak-to-peak |
| Dimensions (W x H x D) | 160 x 100 x 50 mm |
| Weight | 1.2 kg |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Protection Features | Overvoltage, overcurrent, short-circuit, overtemperature |
| Cooling Method | Natural convection |
| MTBF | >500,000 hours |
| Internal Energy Storage | 680 µF electrolytic capacitor bank |
| Terminal Type | Screw-type clamping terminals (6 positions) |
| Number of Power Semiconductors | 8 x MOSFETs in parallel configuration |
| Control Interface | Analog 0–10V for remote voltage adjustment |
Robust Protection Circuitry for System Safety
The Siemens 6EW1860-3AA integrates comprehensive fault protection to safeguard connected loads. Overvoltage clamping activates at 28.5V DC to prevent damage from output surges. Current limiting circuitry reduces output current to 22A during overload events. Thermal sensors trigger shutdown when internal temperatures exceed 85°C. These protective measures automatically reset after fault conditions clear, minimizing system downtime.
Efficient Thermal Management and Mechanical Design
Natural convection cooling eliminates the need for moving parts, significantly improving long-term reliability. The extruded aluminum heatsink provides optimal heat dissipation across the entire operating temperature range. Six screw-type terminals accommodate wire gauges from 0.5 mm² to 6 mm² for secure field connections. The compact 160x100x50 mm form factor fits standard 19-inch rack systems or DIN rail mounting configurations. At 1.2 kg, this module offers excellent power density for space-constrained control cabinets.
Advanced Energy Storage and Filtering
The internal 680 µF capacitor bank stores sufficient energy to bridge transient power interruptions up to 20 milliseconds. This energy reserve ensures continuous 24V DC output during momentary AC input dips. Low-ESR electrolytic capacitors minimize output ripple to less than 50 mV peak-to-peak, making this module ideal for analog sensor supplies and precision measurement circuits. The input filter stage attenuates conducted EMI to comply with EN 61000-6-2 immunity standards.
Flexible Application Integration
This voltage regulator supports remote voltage adjustment via an analog 0–10V control interface. Users can fine-tune the output from 21.6V to 26.4V DC to match specific load requirements. Eight parallel-connected MOSFETs share current evenly, ensuring reliable operation even under fluctuating load conditions. The module operates efficiently from 85V to 264V AC, accommodating global power grids without manual voltage selection switches. Screw-type terminals provide reliable field wiring connections for both input and output circuits.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
