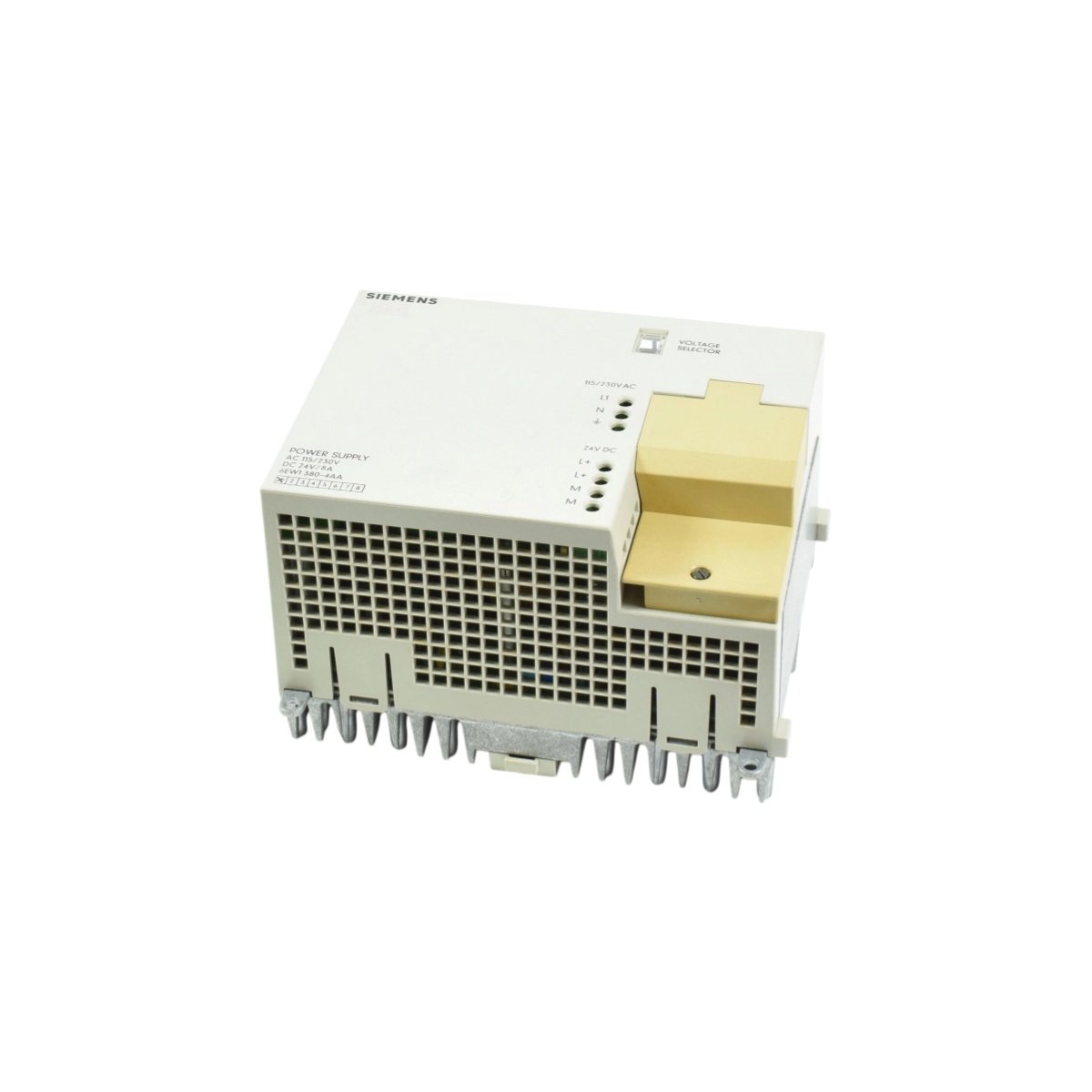

This power supply module provides reliable DC power to SIMATIC S5 system components. It converts AC mains voltage into stable DC outputs for logic circuits. The unit supports both the CPU rack and expansion rack configurations. Its high-efficiency design minimizes heat generation and energy consumption.
Input and Output Specifications
The module accepts a wide range of AC input voltages for global compatibility. It delivers regulated DC outputs to power all connected modules. The main output provides 5 V DC at 20 A for logic circuits. An auxiliary output supplies 24 V DC at 1.5 A for field devices.
| Parameter | Specification |
|---|---|
| Model | 6EW1380-4AA |
| Input Voltage | 120/230 V AC selectable |
| Input Frequency | 47-63 Hz |
| Input Current | 4.0 A at 120 V AC, 2.0 A at 230 V AC |
| Main Output | 5 V DC, 20 A (100 W) |
| Auxiliary Output | 24 V DC, 1.5 A (36 W) |
| Total Output Power | 136 W maximum |
| Output Ripple | ≤100 mV peak-to-peak |
| Line Regulation | ±0.2% for 5 V output |
| Load Regulation | ±1.0% for 5 V output |
| Efficiency | 80% typical at full load |
| Hold-Up Time | 20 ms minimum |
| Inrush Current | 30 A peak, cold start |
| Isolation Voltage | 3000 V AC input to output |
Physical Dimensions and Rack Mounting
This power supply measures 230 mm in height, 27 mm in width, and 210 mm in depth. Its rugged enclosure weighs approximately 1.5 kg. You can mount the unit in the first slot of the SIMATIC S5 rack. The module locks securely with the built-in retention mechanism.
Connector Interface and Field Wiring
The 6EW1380-4AA features a 3-position terminal block for AC input connections. A separate connector handles all DC output terminations. Each terminal accepts wire sizes from 1.0 mm² to 4.0 mm². The unit includes a ground terminal for functional earth connection.
Protection Features and Safety Systems
This power supply incorporates over-voltage protection on all output channels. It also includes over-current limiting with automatic recovery. A thermal shutdown circuit protects against excessive internal temperatures. The module meets UL and VDE safety standards for industrial equipment.
Status Indication and Monitoring
A green LED indicates normal operation and correct output voltage. A red LED illuminates when the unit enters protection mode. The module provides a DC OK relay contact for external monitoring. This contact changes state when the output falls below 90%.
Application Scenarios and System Integration
This power supply suits SIMATIC S5-115U and S5-135U systems. It works with both single-rack and multi-rack configurations. The unit supports hot-swapping for maintenance without system shutdown. You can use it as a primary power source in any S5 installation.
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 250 × 25 × 210 mm |
