Core Specifications of the Power Supply

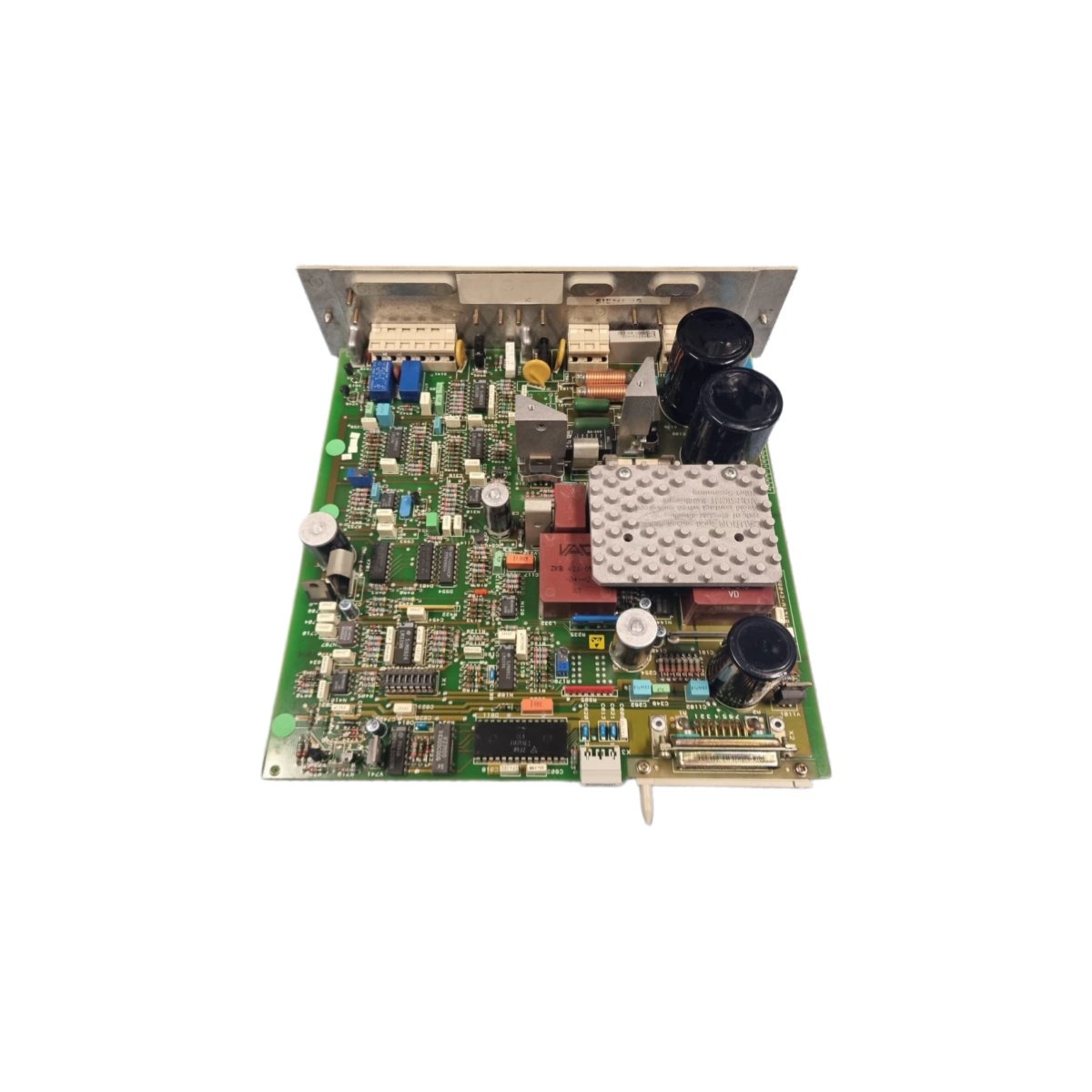

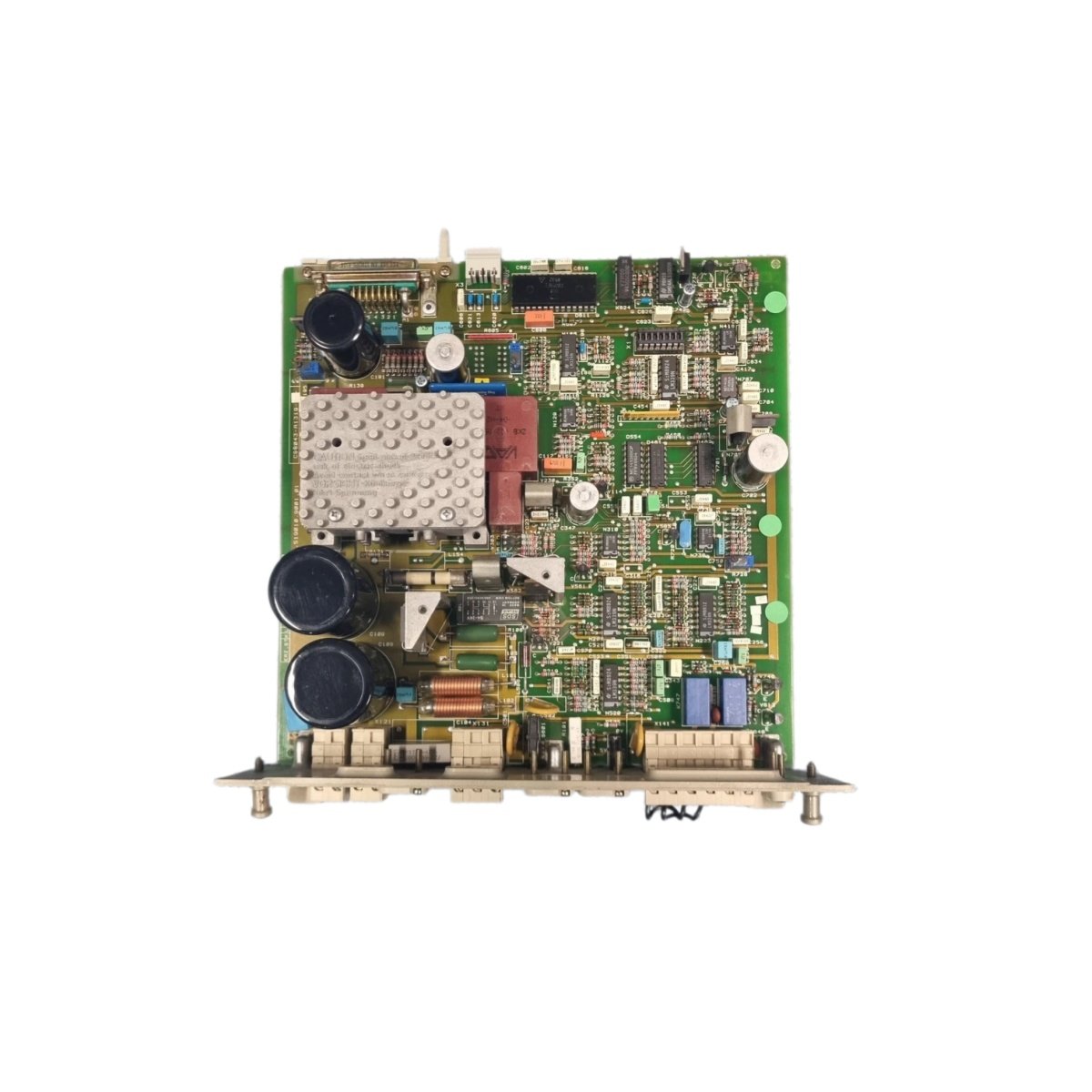

The 6EV3050-0BC belongs to the Siemens family of industrial power supply units for control cabinets. This module converts AC mains input into a regulated DC output for automation hardware. Moreover, it delivers stable power to sensors, relays, and small controller racks.
Each unit weighs roughly 1.10 kg with its mounting bracket attached. Additionally, the housing measures 90 mm in width and 140 mm in height. The 0BC suffix defines the input voltage range and output configuration.
| Parameter | Value |
|---|---|
| Function | Industrial Power Supply |
| Weight | ~1.10 kg |
| Width | 90 mm |
| Height | 140 mm |
| Input Voltage | 120/230 V AC |
| Output Voltage | 24 V DC |
| Output Current | 5 A |
| Rated Power | 120 W |
| Connection Type | Screw terminal |
| Operating Temperature | -20°C to +70°C |
| Energy Storage | Internal filter capacitors |
| Component Count | 1 unit |
Interface and Mounting Details

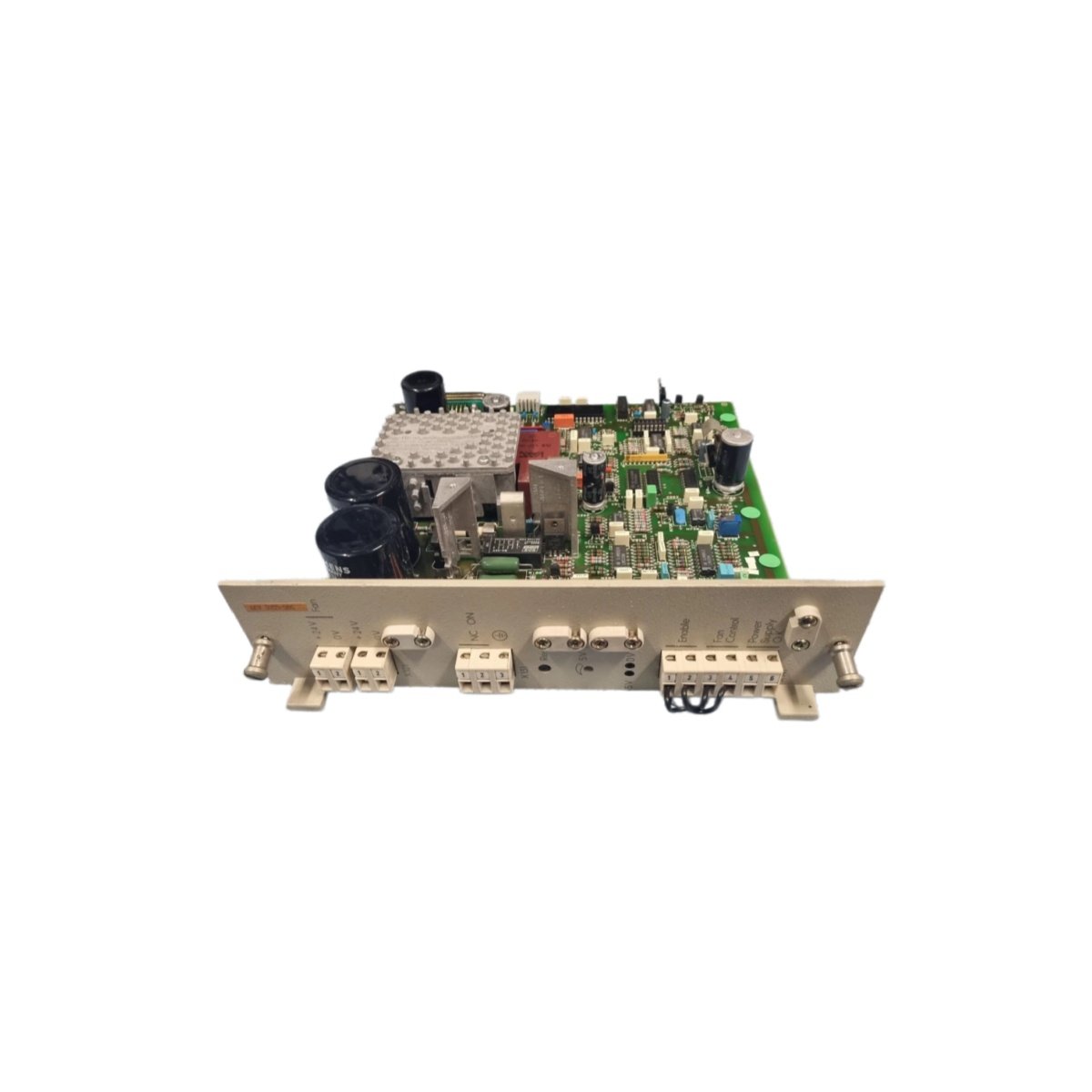

The 6EV3050-0BC mounts directly onto a standard DIN rail inside control cabinets. Consequently, technicians complete installation without drilling additional holes. This unit accepts input power through screw terminals on the front face. Therefore, it simplifies wiring for both mains and load circuits.
The output stage delivers 24 V DC at up to 5 A continuously. Meanwhile, internal filter capacitors smooth ripple and absorb short load surges.
Performance and Application Notes
Panel builders choose the 6EV3050-0BC for dependable power in industrial environments. Furthermore, the wide input range handles both 120 V and 230 V AC mains. Its 120 W output supports larger sensor arrays and relay banks. Meanwhile, the compact housing fits tight cabinet layouts.
The unit stores energy in its internal filter capacitors, since it holds no battery. As a result, output voltage decays quickly after mains disconnection.
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 250 × 25 × 210 mm |
