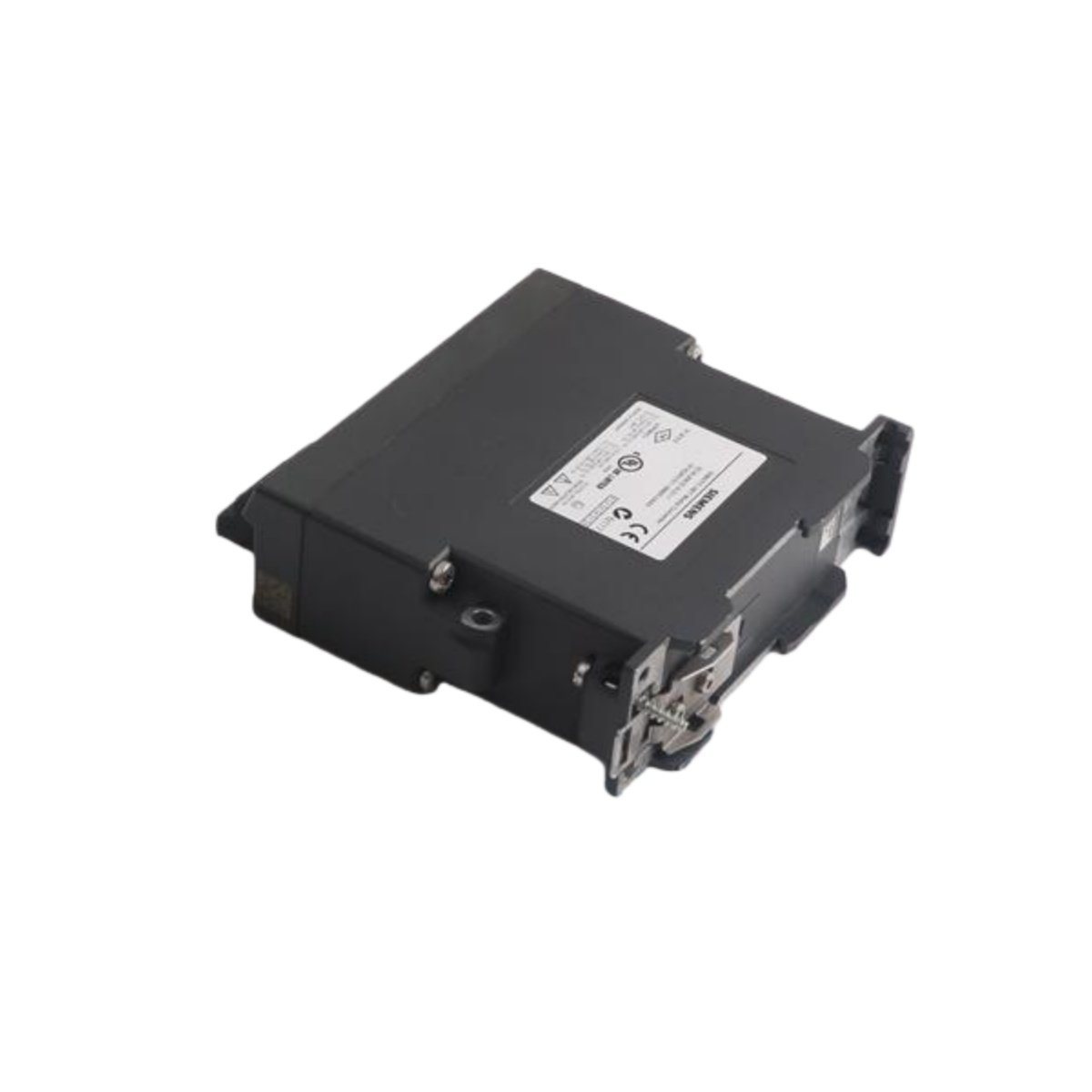

This RS485 repeater regenerates signals for reliable data transmission over long PROFIBUS networks. It integrates seamlessly into the Siemens SIMATIC DP distributed I/O system. The unit connects PROFIBUS segments to extend cable length and add network nodes. Users can overcome distance limitations and increase device count on existing PROFIBUS installations.

Signal Regeneration and Network Extension

This repeater receives and regenerates RS485 signals on the PROFIBUS network. It amplifies and retransmits signals for extended cable length. Users can connect PROFIBUS segments separated by up to 1,000 m with this repeater. The unit ensures signal integrity across large-scale installations. Consequently, engineers can reliably communicate with devices located far from the master.

Network Topology and Segment Linking

The 6ES7972-0AA01-0XA0 links two PROFIBUS segments into a single cohesive network. It provides electrical isolation between the connected segments for noise immunity. This galvanic isolation prevents ground loops from affecting communication quality. Users can connect up to 31 devices per segment. This design enables flexible network topologies for distributed automation architectures.

Transmission Speed and Signal Integrity

This repeater supports transmission speeds from 9.6 kbps to 12 Mbps automatically. It automatically detects the baud rate from the network traffic. The unit amplifies the signal to maintain data integrity over long distances. The signal regeneration removes pulse distortions and timing jitter. Consequently, users achieve reliable communication in electrically noisy environments.

Diagnostic Functions and Status Monitoring

Front-panel LEDs provide clear visual feedback for network diagnostics. A green “Power” LED confirms the presence of supply voltage. A red “Fault” LED signals segment errors or power issues. The unit also provides diagnostics through the PLC programming software. Users can monitor network traffic and error statistics. This visibility enables efficient troubleshooting and preventive maintenance.

Power Supply and Energy Efficiency

The module draws 100 mA at 24 V DC from an external power supply. Power dissipation remains below 2.5 W under normal operating conditions. The unit operates reliably between 0 °C and 60 °C ambient temperature. Humidity tolerance spans 5% to 95% without condensation issues. This efficient design ensures continuous and reliable operation.

Installation and Space-Saving Design

This repeater features a compact 45 mm width for high-density installation. Users can mount the unit on a standard DIN rail without tools. The module connects to PROFIBUS cables via standard 9-pin D-sub connectors. A removable power terminal block simplifies wiring and maintenance. The housing carries an IP20 rating for protection against solid objects. This robust design suits factory automation, process control, and material handling applications.
