Technical Specifications and System Integration

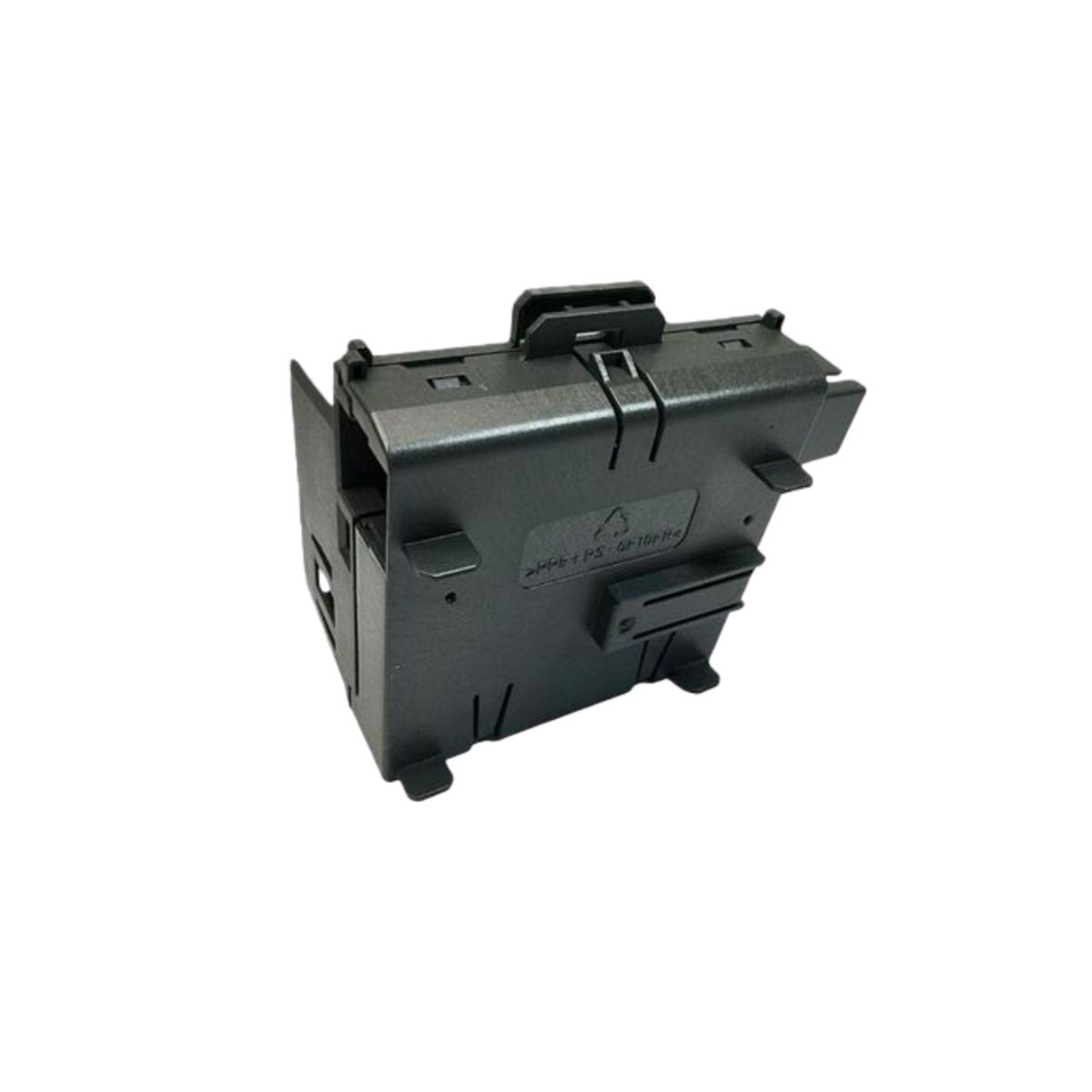

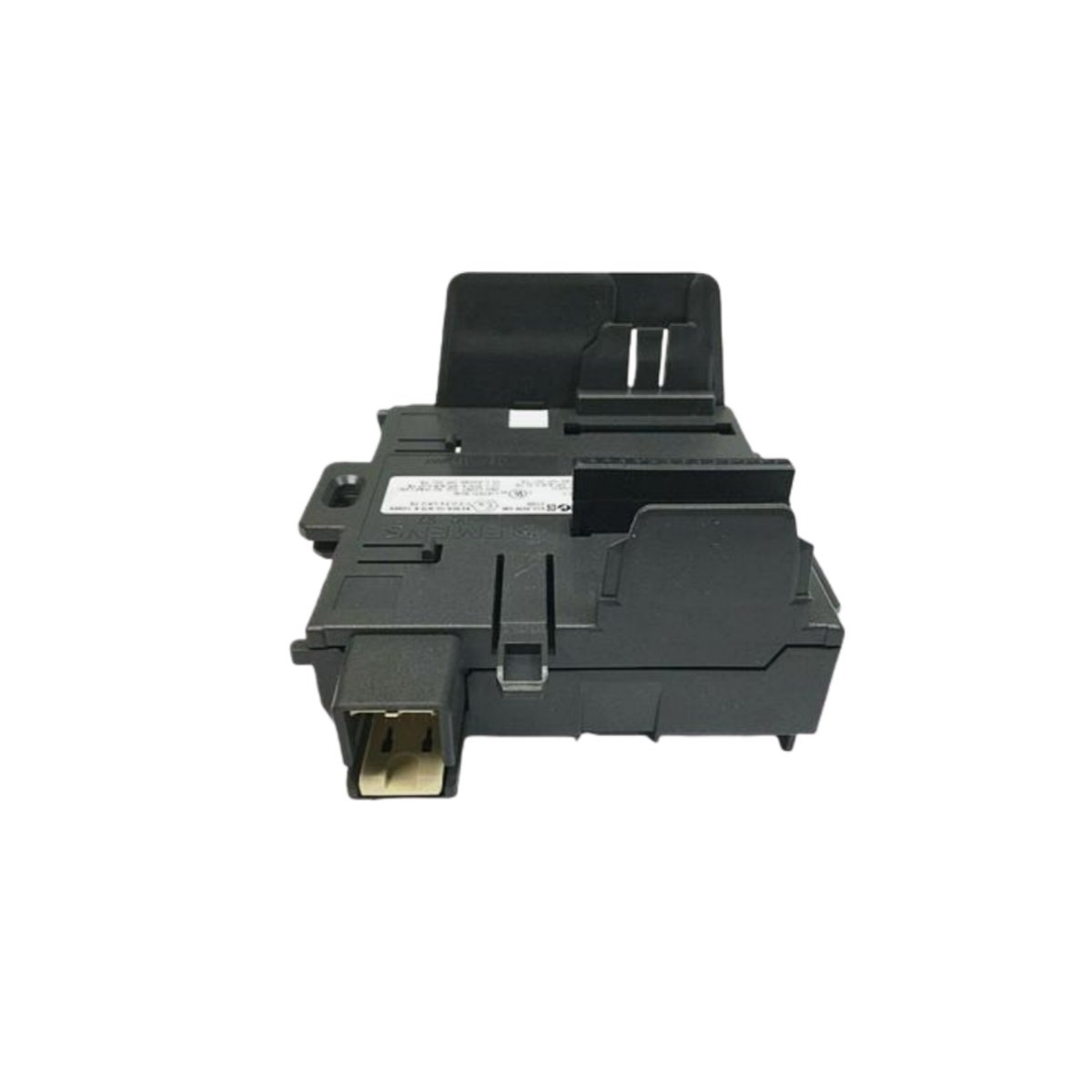

The Siemens 6ES7654-7HY00-0XA0 bus unit serves as a specialized connection module for integrating a Y-coupler within SIMATIC S7 and PCS 7 automation systems . This module forms an integral part of the Y-Link redundancy package, which enables the connection of redundant H-system controllers to single-ended PROFIBUS slave devices . Its compact dimensions measure 97 mm in width, 92 mm in height, and 30 mm in depth, with a lightweight construction of approximately 120 g . The robust design features a conformal coating for enhanced protection against environmental factors .

Functional Capabilities and Redundancy Architecture

The 6ES7654-7HY00-0XA0 bus unit actively provides the mechanical and electrical connection for a Y-coupler within the SIMATIC S7 system architecture . It works in conjunction with two IM153-2 interface modules and an IM/IM bus module to form the complete Y-Link solution . This configuration enables a redundant pair of H-system CPUs to communicate with standard PROFIBUS DP slaves through a single Y-coupler, ensuring high system availability . The module’s compact design facilitates straightforward installation in standard Siemens mounting rails, supporting efficient system maintenance and expansion.

Application Scenarios

This bus unit is an essential component for implementing redundant PROFIBUS communication in high-availability automation systems . It is designed to be used with the Y-coupler and is part of the Y-Link package, which is a certified solution for S7-400H and PCS 7 systems . With its wide operating temperature range, the Siemens 6ES7654-7HY00-0XA0 is suitable for use in diverse industrial environments, from production lines to process plants . For system integrators, this bus module provides a reliable and standardized foundation for building fault-tolerant control networks.
