Technical Overview of the Analog Output Module

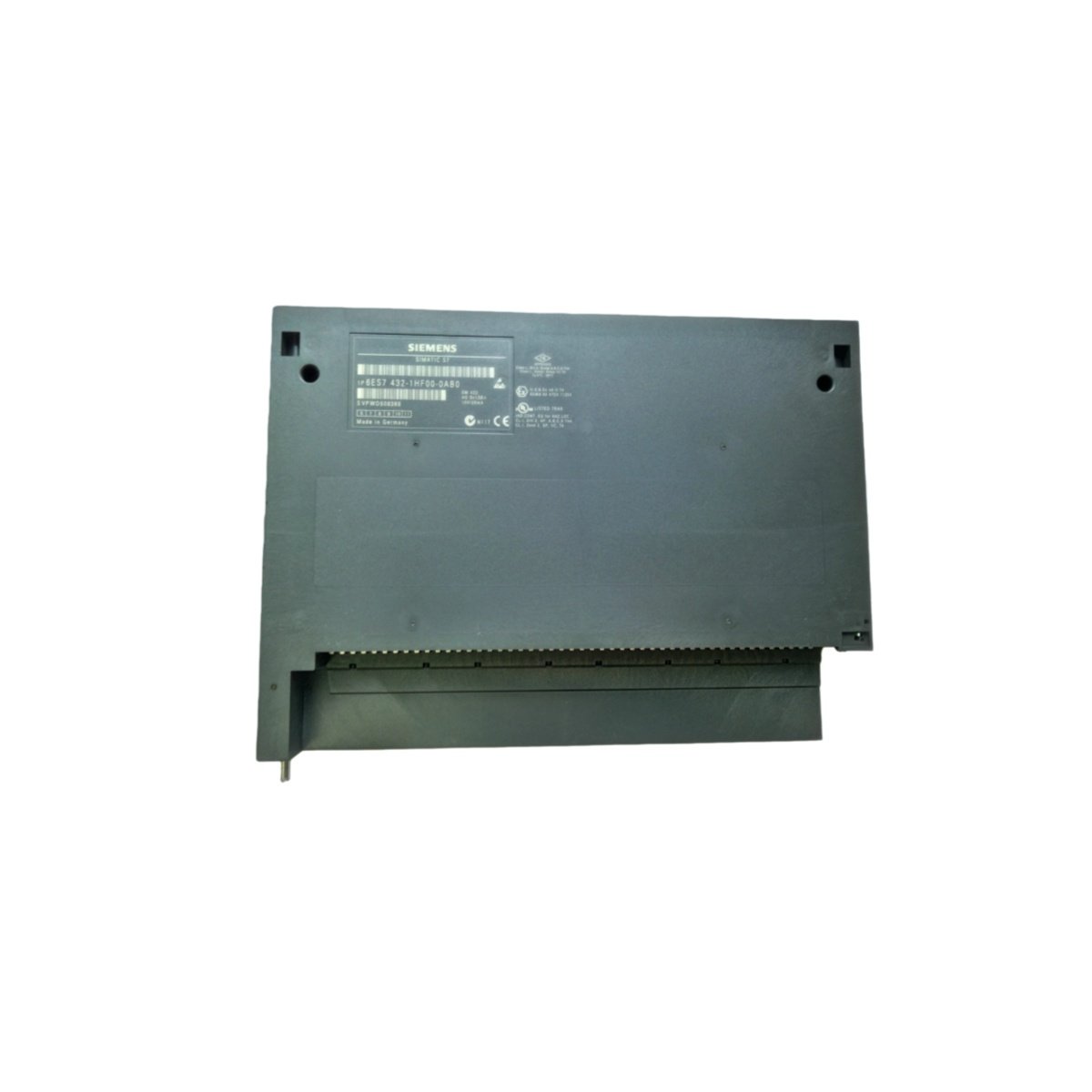

The Siemens 6ES7432-1HF00-0AB0 provides a high-density analog output module for the SIMATIC S7-400 PLC system. This module converts digital setpoints into proportional analog signals for process control. It drives actuators, valves, and variable frequency drives with precision. The design accommodates both voltage and current output configurations.
Key Technical Specifications
This section details the exact parameters for the Siemens 6ES7432-1HF00-0AB0 analog output module. Use these figures to ensure proper integration with your field devices.
| Parameter | Specification |
|---|---|
| Part Number | 6ES7432-1HF00-0AB0 |
| Type | Analog Output Module |
| Product Family | SIMATIC S7-400 |
| Number of Outputs | 8 Analog Outputs |
| Output Signal Range | 0-10V / ±10V / 0-20mA / 4-20mA |
| Resolution | 13 bits (voltage), 14 bits (current) |
| Accuracy | ±0.3% of full scale (voltage), ±0.5% (current) |
| Conversion Time | Approx. 3.5 ms per channel |
| Load Capacity | ≥ 2 kΩ (voltage), ≤ 600 Ω (current) |
| Isolation | Galvanic isolation between channels and backplane |
| Dimensions (W x H x D) | Approx. 250 x 25 x 210 mm |
| Weight | Approx. 0.7 kg |
| Compatibility | SIMATIC S7-400 racks |
Application and System Integration
This analog output module connects directly to the S7-400 backplane bus. It provides precise control signals for modulating valves and motor drives. The Siemens 6ES7432-1HF00-0AB0 supports field-selectable current or voltage output modes. Each channel offers high resolution for accurate process regulation. Consequently, operators can achieve fine control of industrial parameters.
Reliability and Performance Characteristics
The module features short-circuit protection on all analog outputs. This safeguard prevents damage from field wiring faults. Its robust construction withstands typical industrial vibrations and temperature variations. Engineers select the Siemens 6ES7432-1HF00-0AB0 for its proven accuracy and reliability in demanding applications.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
