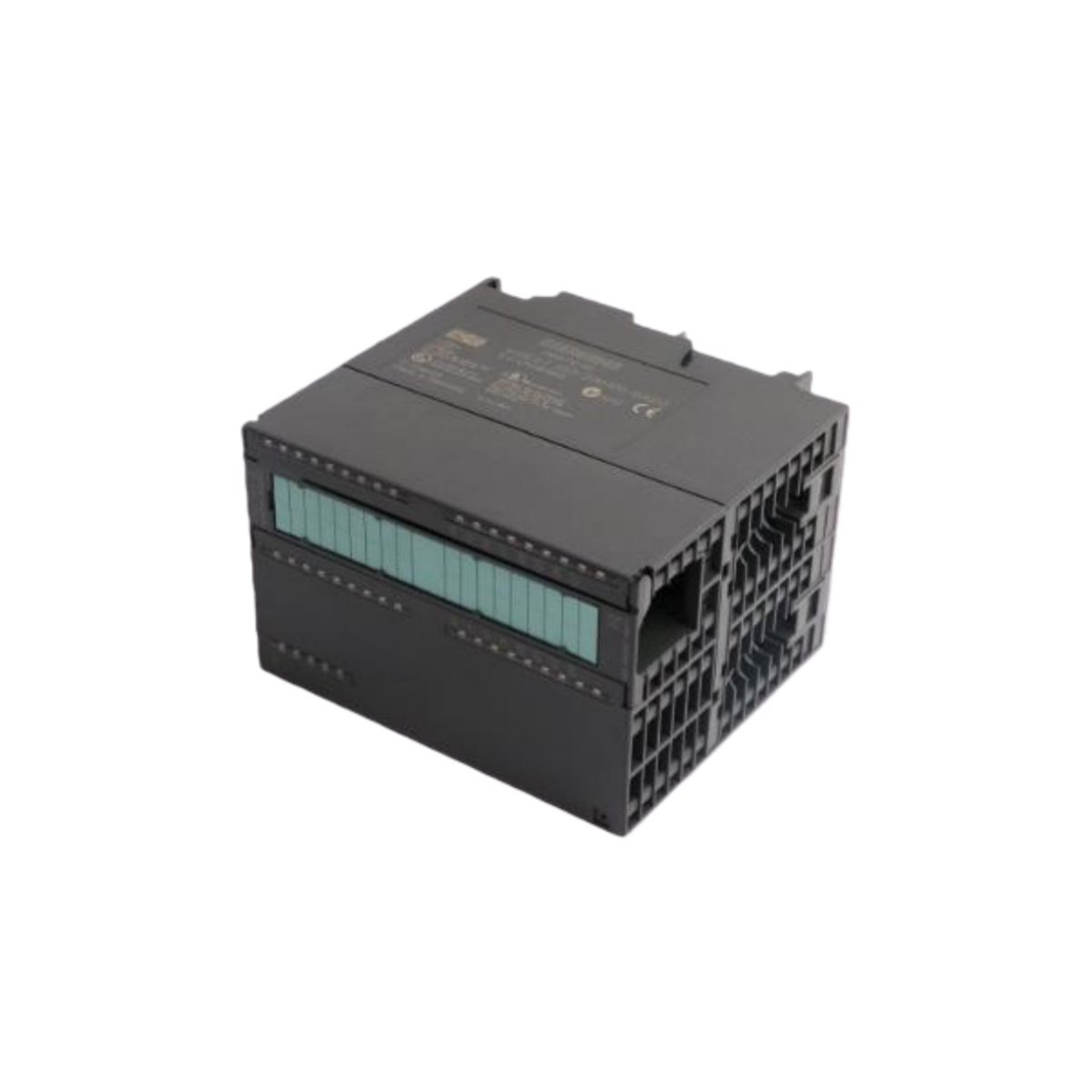

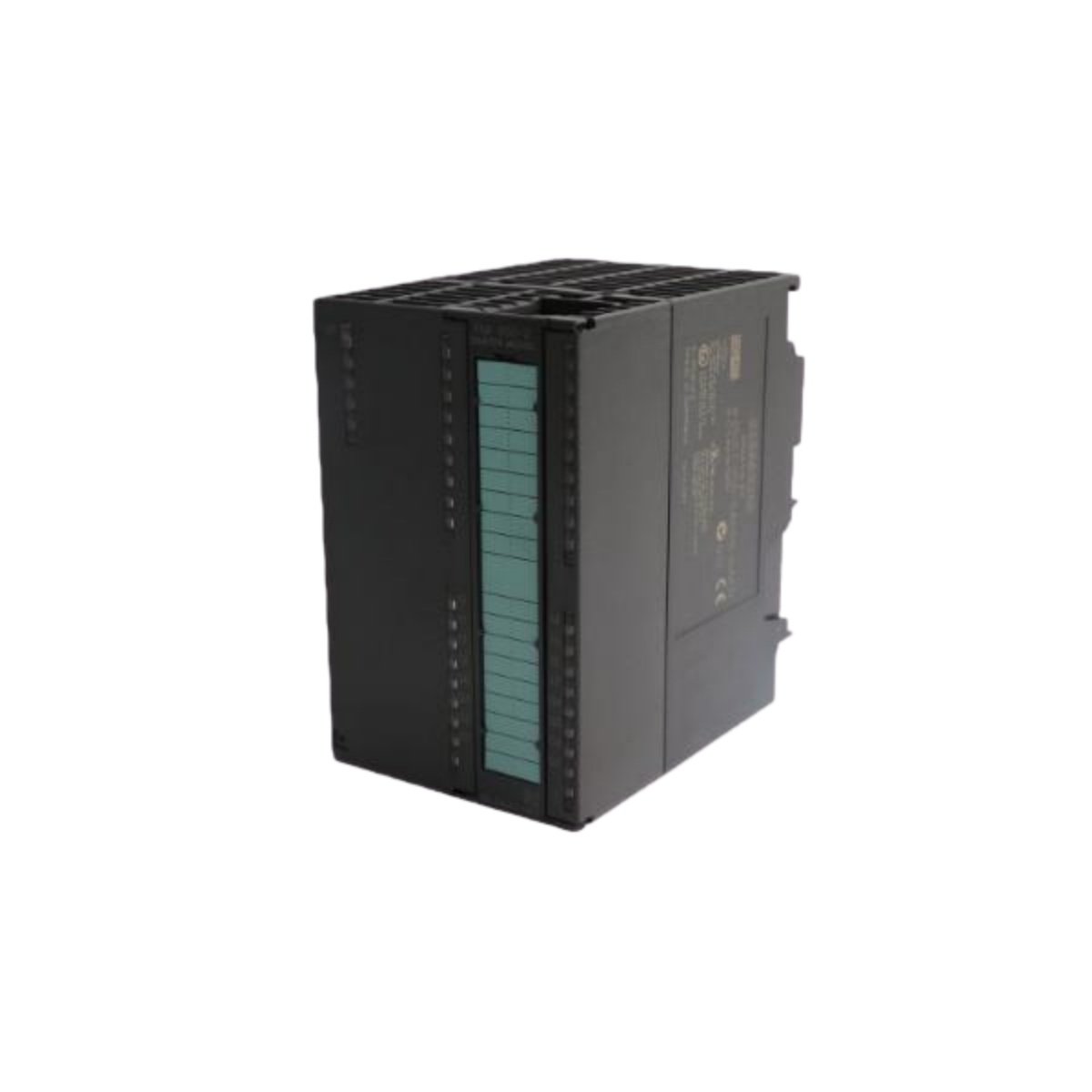

This high speed counter module delivers accurate counting and positioning for demanding applications. It integrates seamlessly into the Siemens SIMATIC S7-300 programmable controller platform. The unit performs high-speed counting, frequency measurement, and position detection tasks. Users can implement complex motion control and precision measurement with exceptional reliability.

Input Channel Configuration and Specifications

This module features two independent counter channels for versatile application support. Each channel accepts 24 V DC incremental encoder signals with RS-422 levels. The unit also supports 24 V DC directional and pulse inputs for flexible connectivity. Users can configure each channel for counting, measuring, or positioning modes. This flexibility accommodates diverse automation requirements.

Counting Modes and Measurement Functions

The 6ES7350-2AH00-0AE0 supports multiple counting and measurement modes for various applications. Users can configure the module for single, continuous, and period counting operations. It also provides frequency measurement and rotational speed detection capabilities. The unit performs pulse duration measurement for process monitoring and diagnostics. Consequently, engineers select the optimal mode for each specific application.

Position Detection and Output Comparison

This module includes configurable output switches for position detection and alarm functions. Users can set up to 4 compare values per channel for precise output control. The module activates outputs when the counter reaches the programmed compare values. It also supports zero marker detection for referencing and homing sequences. This functionality suits packaging, cutting, and indexing applications effectively.

Configuration and Parameterization

Users configure all module parameters through the STEP 7 software environment. The software provides intuitive tools for counter mode selection and parameter settings. Users can program count limits, comparison values, and input configurations easily. The module stores these settings in non-volatile memory for automatic loading. This configuration ensures consistent operation across power cycles and system reboots. Furthermore, users can save multiple configurations for different production batches.

System Integration and Interrupt Handling

The module communicates with the CPU through the S7-300 backplane bus. It maps counter data directly to the PLC memory for seamless access. The unit supports hardware interrupts for time-critical applications. This interrupt capability enables immediate reaction to counting events. Users can trigger specific functions when the counter reaches a compare value. Consequently, the system responds rapidly to critical process conditions.

Energy Consumption and Environmental Specifications

The module draws 100 mA at 5 V DC from the backplane power supply. Power dissipation remains below 4 W under full operational load. The unit operates reliably between 0 °C and 60 °C ambient temperature. Humidity tolerance spans 5% to 95% without condensation issues. This robust design suits conveyor systems, packaging machinery, and simple motion control applications.
