Core Redundancy Function for ET 200M

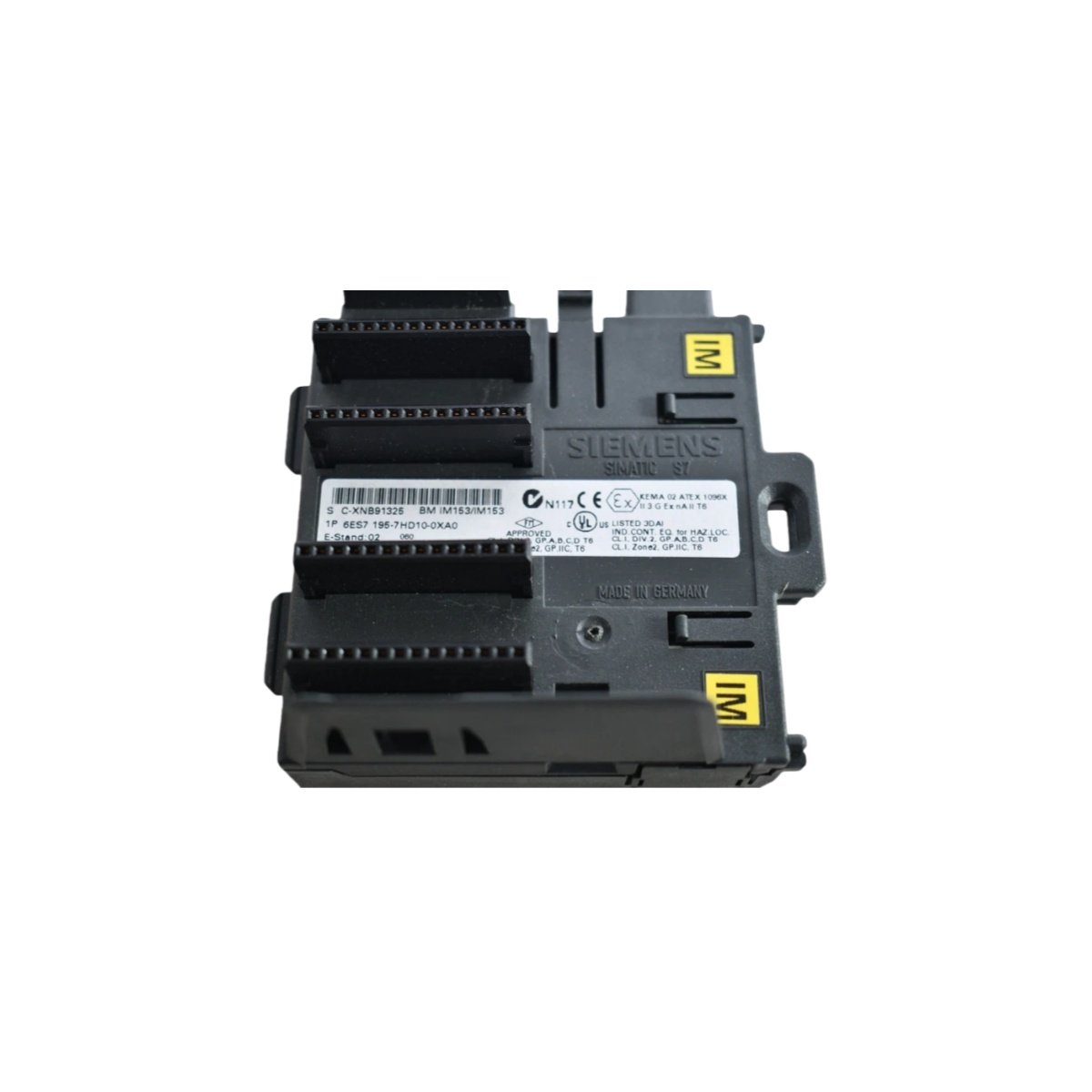

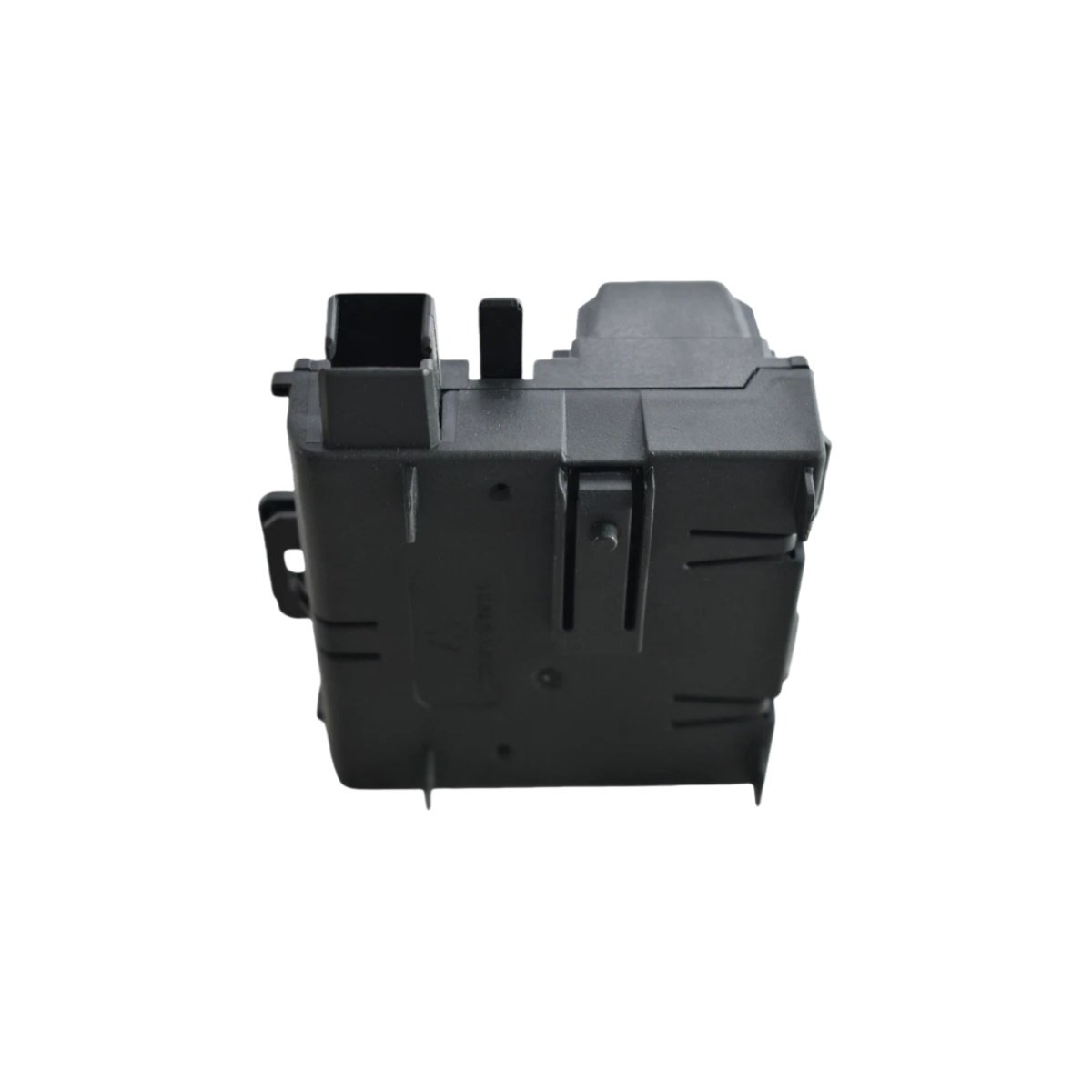

The Siemens 6ES7195-7HD10-0XA0 is an active bus module for the ET 200M distributed I/O system. This module provides the physical interface for installing two IM153-2 interface modules in a redundant configuration. It enables fault-tolerant PROFIBUS DP communication architectures essential for mission-critical applications. Consequently, this component maintains system availability during interface module replacement.

Redundant Architecture and System Integration

This bus module features a dedicated IM/IM slot configuration for dual interface modules. It supports the “removal and insertion function during RUN operating time” for hot-swap capability. The 6ES7195-7HD10-0XA0 requires an ET 200M mounting rail that supports active bus modules. Furthermore, it works exclusively with the HF (High Feature) version of IM153-2 modules.

Technical Specifications and Physical Details

Engineers designed this module with a slim 15mm width for space-efficient cabinet installation. Its construction complies with RoHS standards and ships with a net weight of approximately 0.126 kg. The following table details its key identification and compatibility parameters.

Application in High-Availability Systems

System integrators use this bus module to build redundant ET 200M stations for Siemens S7-400H systems. It ensures that the distributed I/O remains operational even during the failure of one interface module. The Siemens 6ES7195-7HD10-0XA0 is a key component for industries requiring continuous process availability. Therefore, sourcing genuine Siemens modules is essential for maintaining system integrity.
