Technical Specifications and Communication Features

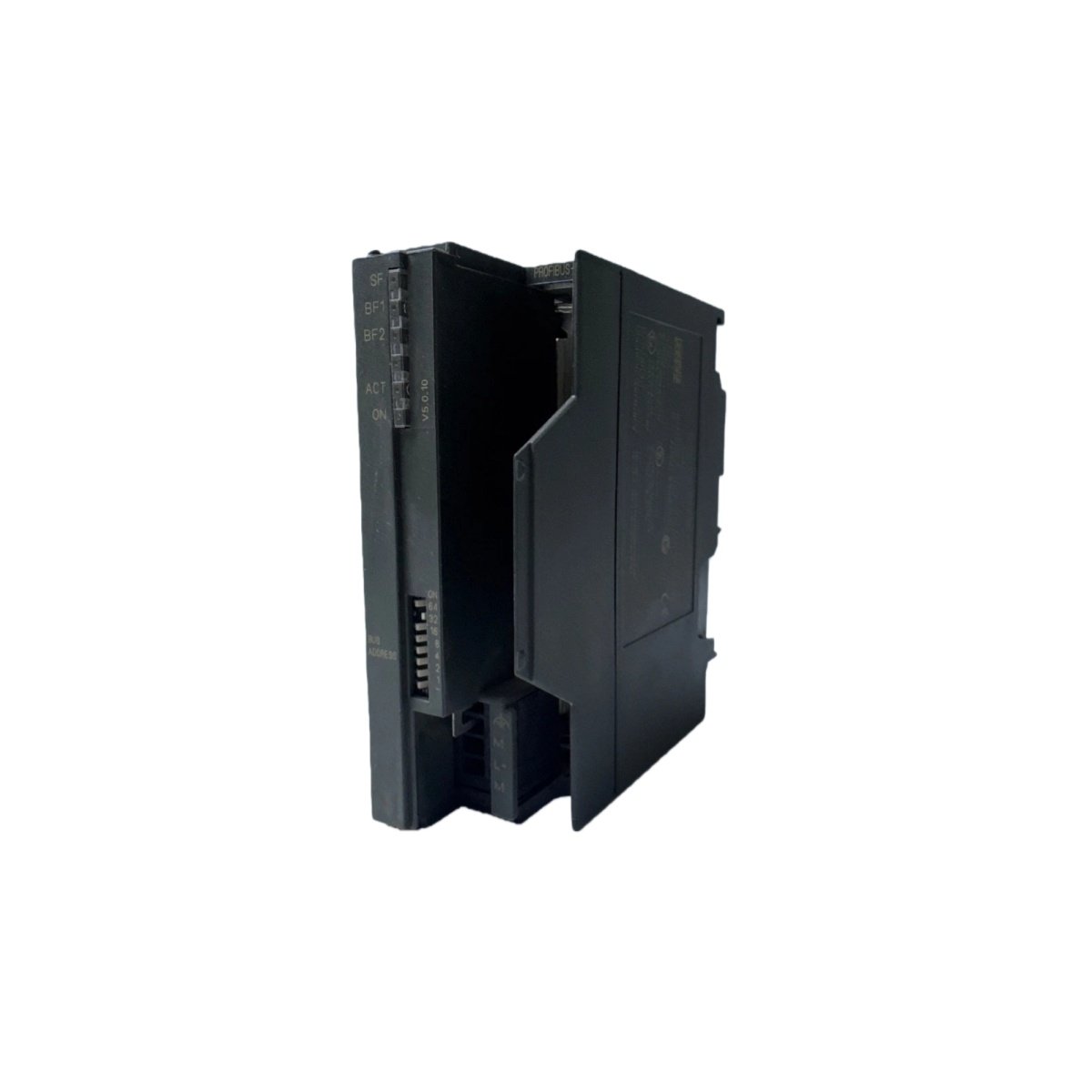

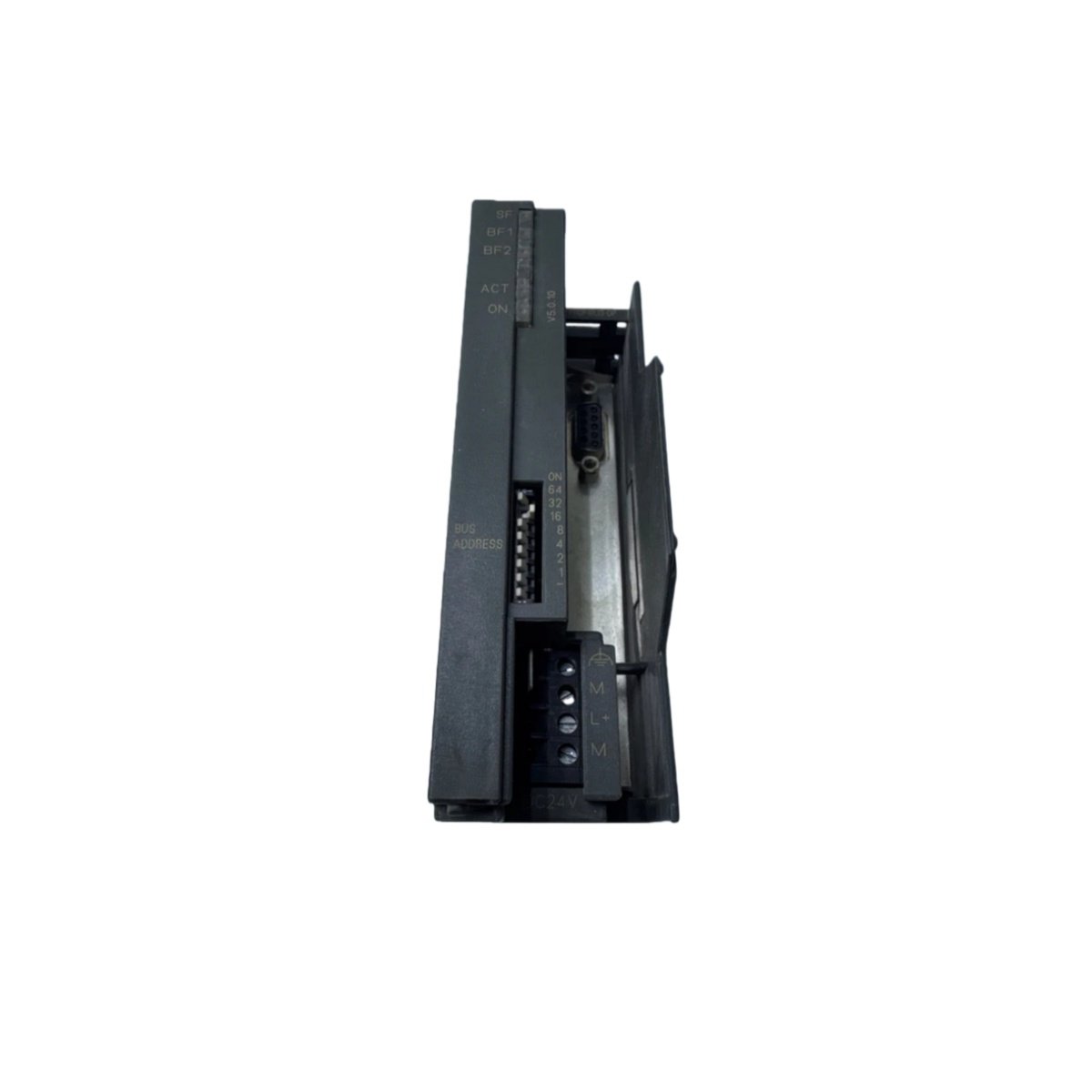

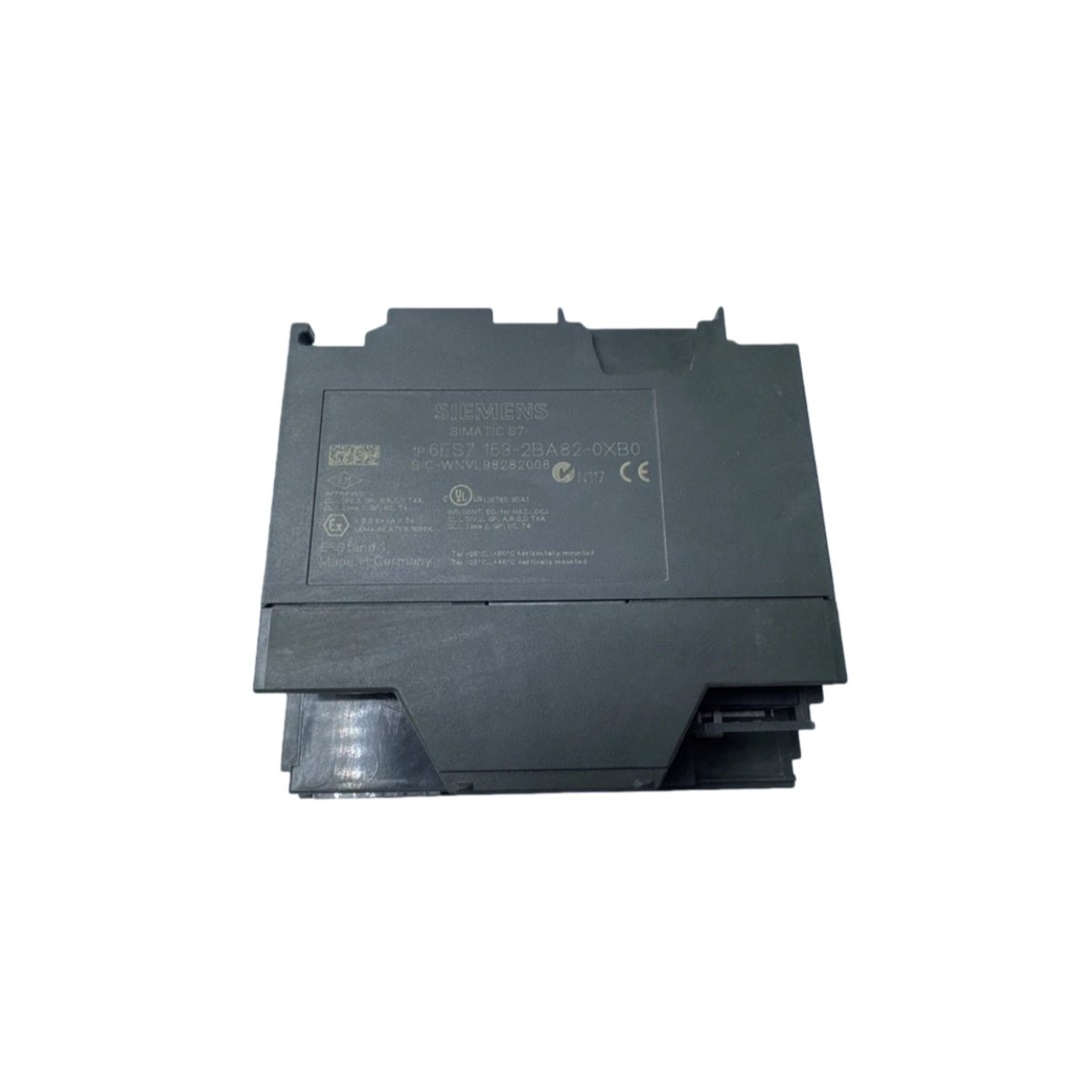

The Siemens 6ES7153-2BA82-0XB0 interface module belongs to the SIMATIC ET 200M product family and functions as an IM153-2 High Feature (HF) slave interface. This module connects distributed I/O stations to a PROFIBUS DP master system. It supports transmission rates from 9.6 kbps up to 12 Mbps with automatic baud rate detection. The module accommodates up to 12 S7-300 modules per station, expanding the previous limit of 8 modules . It features a 9-pin Sub-D connector for PROFIBUS DP interface . The module’s dimensions are 40 mm x 125 mm x 117 mm (W x H x D), and it weighs approximately 0.36 kg .
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model Number | 6ES7153-2BA82-0XB0 |
| Product Family | SIMATIC ET 200M |
| Module Type | IM153-2 HF (High Feature), Outdoor |
| Communication Protocol | PROFIBUS DP (Slave) |
| Transmission Rate | 9.6 kbps to 12 Mbps (automatic detection) |
| Max Modules per Station | 12 |
| I/O Address Range | 244 bytes input / 244 bytes output |
| Power Supply | 24V DC (20.4V to 28.8V) |
| Current Consumption | Max. 650 mA |
| Inrush Current | Typ. 3 A |
| Power Loss | Typ. 5.5 W |
| Backplane Bus Current (5V DC) | Max. 1.5 A |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 |
| Time Stamping Accuracy | 1 ms (up to 8 modules); 10 ms (up to 12 modules) |
| Max Signals with Time Stamp | 128 per station |
| Redundancy Support | Yes (S7-400H, Flying Redundancy) |
| Dimensions (W x H x D) | 40 x 125 x 117 mm |
| Weight | Approx. 0.36 kg |
| Product Status | Active |
Functional Capabilities
The 6ES7153-2BA82-0XB0 module establishes a high-speed connection between the ET 200M station and the PROFIBUS DP network. It supports isochronous mode for synchronized data processing in motion control applications . The module provides precise time stamping of digital input signals with 1 ms accuracy for up to 128 signals per station . It also supports redundant configurations for S7-400H systems, ensuring high system availability . The firmware update capability via PROFIBUS eliminates the need for an MMC card . Furthermore, this module supports slave-to-slave communication (direct data exchange) .
Application Scenarios
This interface module suits distributed I/O applications in the SIMATIC S7 environment, particularly within S7-400H redundant systems . Its wide temperature range makes it suitable for outdoor installations without climate-controlled cabinets . The 6ES7153-2BA82-0XB0 serves as a key component in DP/PA links and Y-Link gateways for connecting PROFIBUS PA field devices . Users can also integrate it into redundant and fault-tolerant automation architectures requiring high reliability . The module provides a practical solution for expanding and upgrading existing ET 200M installations.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
