Core Interface Function for Distributed I/O

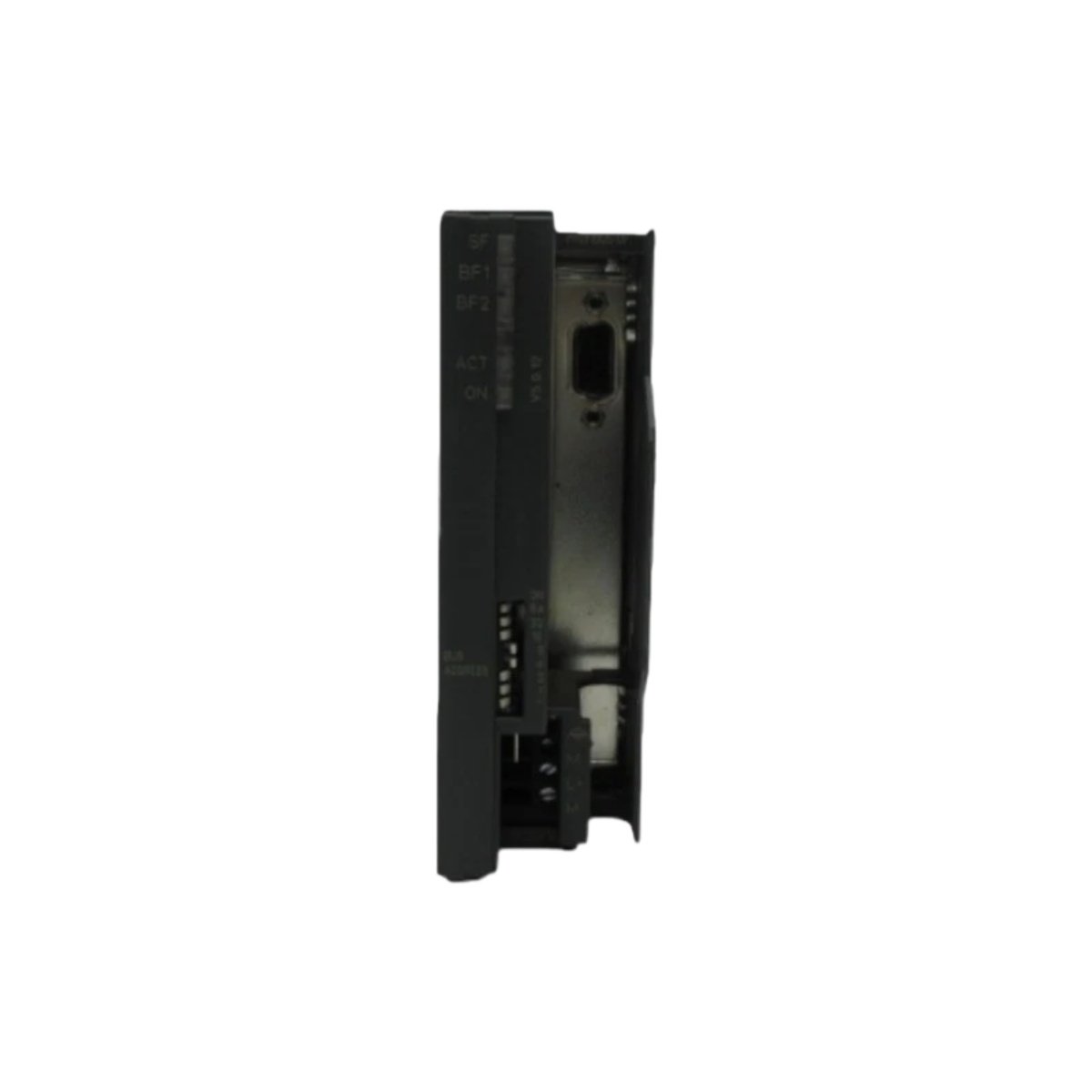

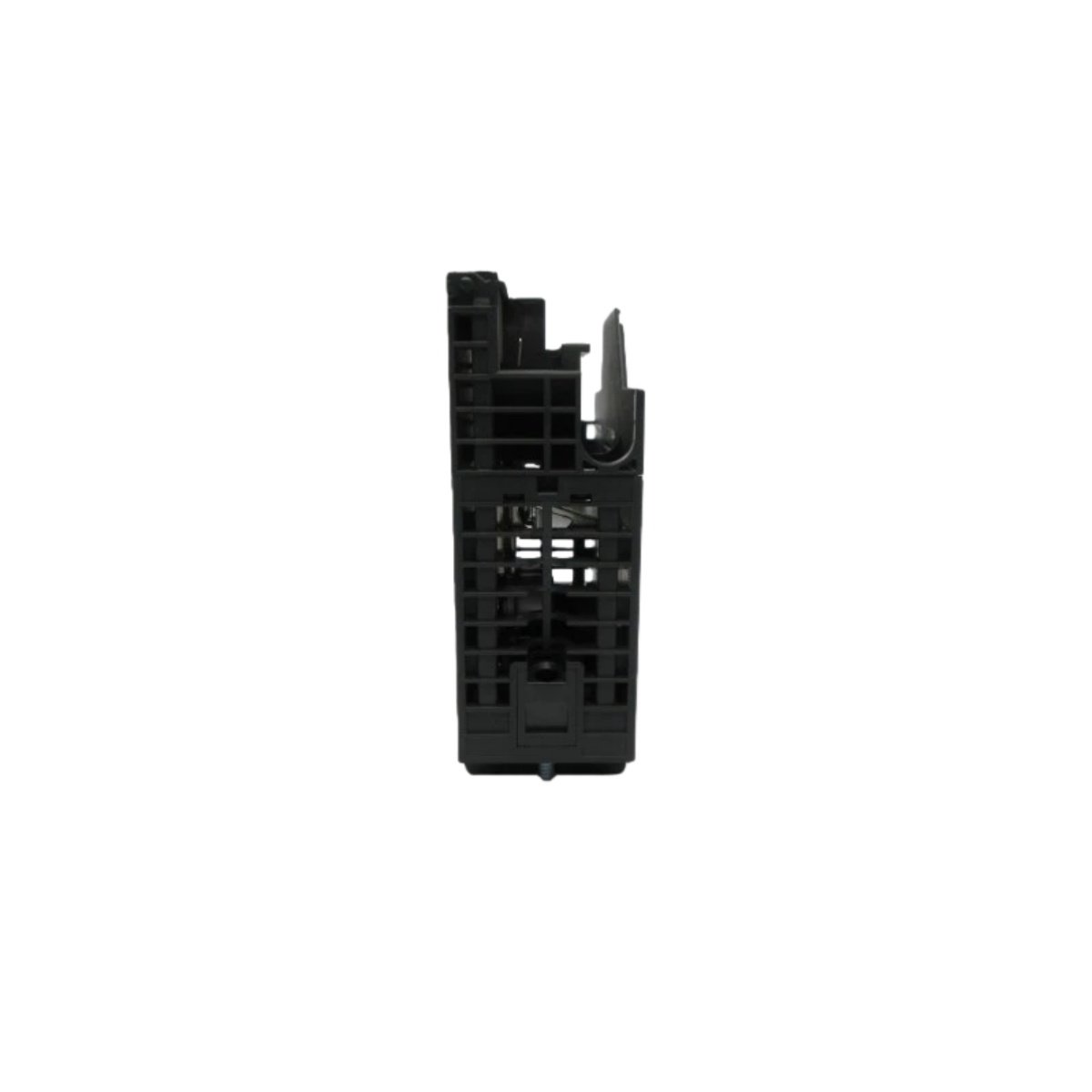

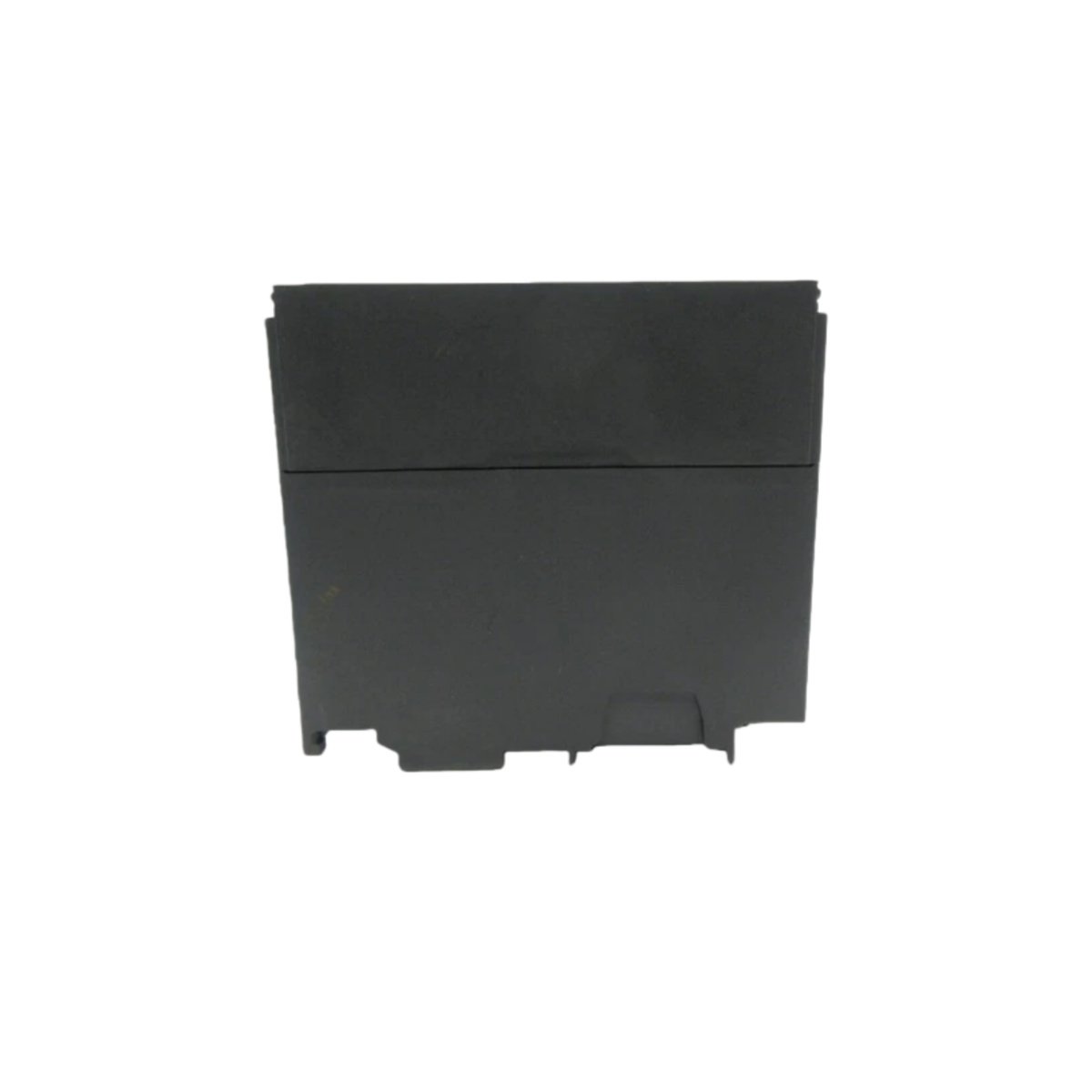

The Siemens 6ES7153-2BA02-0XB0 is an IM 153‑2 High Feature interface module for the ET 200M distributed I/O system. This module connects the ET 200M station to a PROFIBUS DP network, allowing up to 12 S7‑300 modules to operate as remote I/O. It supports redundancy capabilities and time stamping for isochronous mode operation. Consequently, it provides a robust solution for high‑speed, distributed control architectures .
Designed for High‑Performance Applications
This interface module supports slave initiative for Drive ES and Switch ES, enabling advanced drive control and switching functionalities . It operates with 64‑channel modules and processes 32 signals per slot, making it suitable for complex automation tasks. The 6ES7153-2BA02-0XB0 offers a maximum addressing volume of 244 bytes for both inputs and outputs . Furthermore, it supports time stamping with an accuracy of 1 ms for up to eight modules and 10 ms for up to twelve modules .
Technical Specifications and Hardware Details
The module provides reliable communication with its 9‑pin D‑sub PROFIBUS interface and supports transmission rates up to 12 Mbit/s . It operates on a 24 V DC power supply with a current consumption of 600 mA and a typical power loss of 5.5 W . The following table details its key physical and environmental parameters.
| Parameter | Specification |
|---|---|
| Manufacturer / Series | Siemens / SIMATIC DP |
| Product Model | 6ES7153-2BA02-0XB0 |
| Module Type | IM 153‑2 High Feature Interface Module |
| Compatible System | ET 200M Distributed I/O |
| Max. Connected Modules | 12 S7‑300 Modules |
| PROFIBUS Transmission Rate | Up to 12 Mbit/s |
| Power Supply | 24 V DC (20.4V – 28.8V range) |
| Current Consumption (max.) | 600 mA |
| Power Loss (typ.) | 5.5 W |
| Dimensions (W x H x D) | 40 mm x 125 mm x 117 mm |
| Protection Rating | IP20 |
| Weight | approx. 0.36 kg |
| Product Status | Discontinued |
Application and Lifecycle Considerations
Industrial automation engineers use this module to expand the I/O capacity of a PROFIBUS DP network through distributed ET 200M stations . Siemens discontinued the 6ES7153-2BA02-0XB0 on January 14, 2016 . The official successor model is 6ES7153-2BA10-0XB0, which users should consider for new installations . Nevertheless, this module remains a crucial component for maintaining and supporting existing ET 200M installations in manufacturing and process industries. Therefore, sourcing refurbished units from specialized suppliers is essential for lifecycle management of legacy Siemens automation platforms.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
