Technical Overview of the Digital Electronic Module

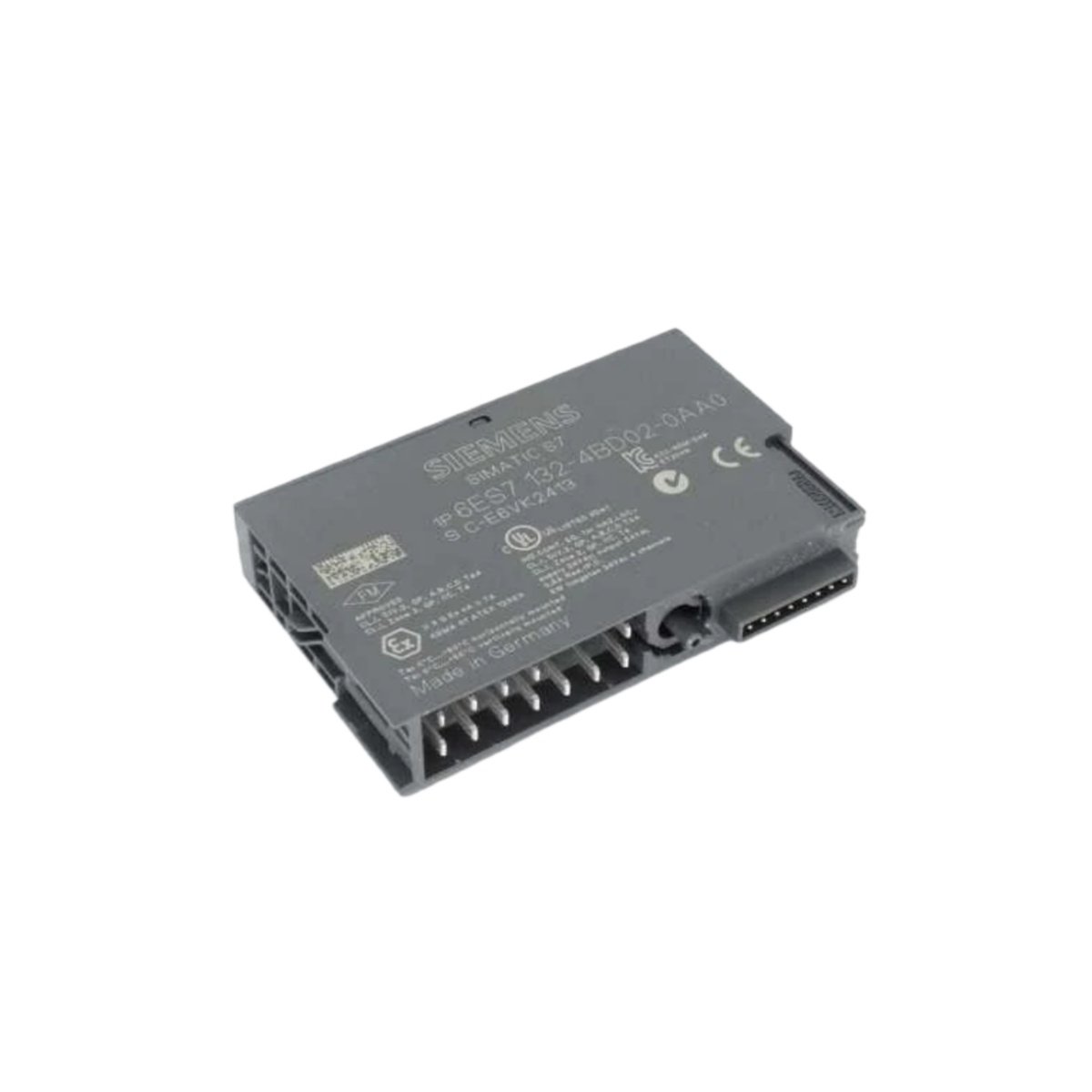

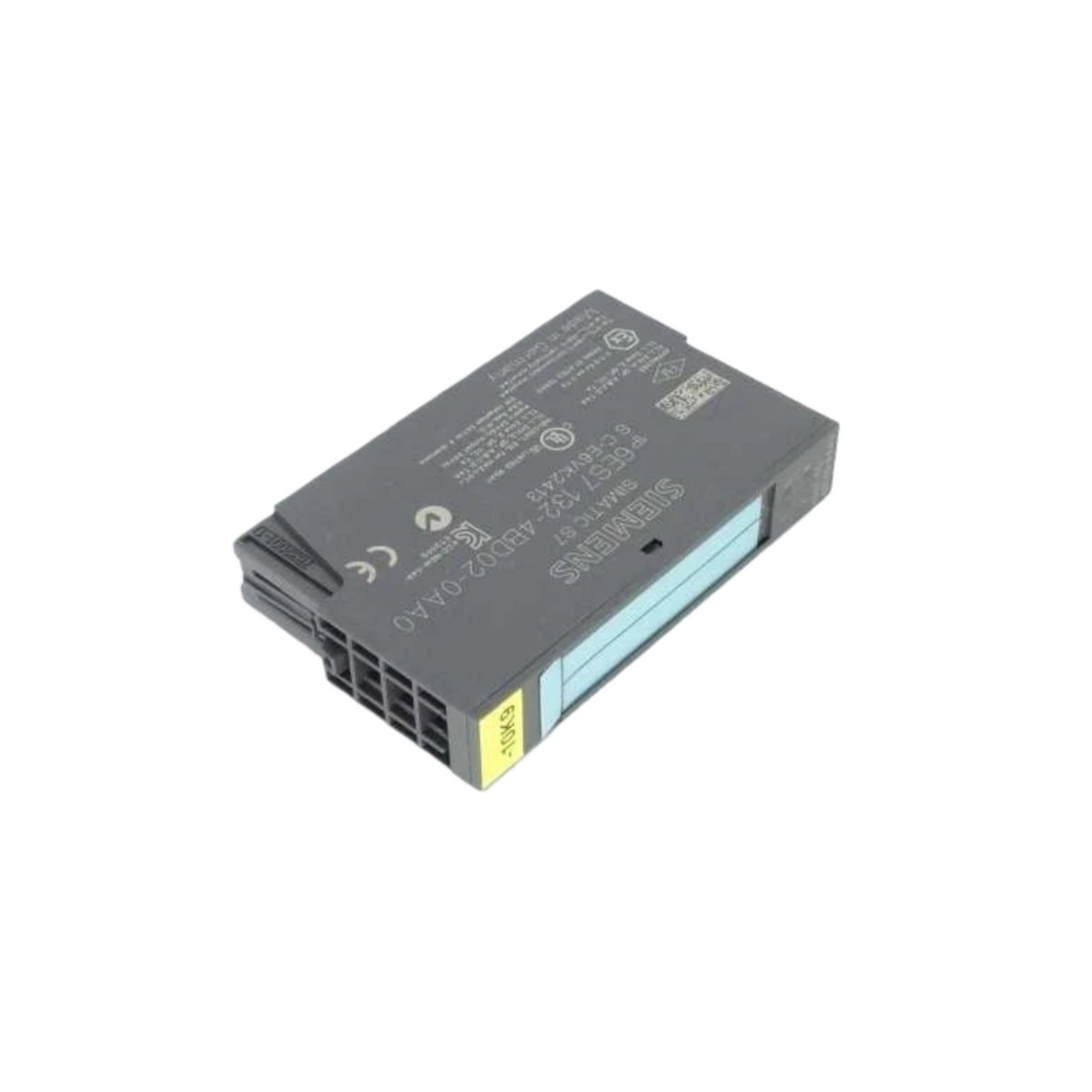

The Siemens 6ES7132-4BD02-0AA0 serves as a digital electronic module for the SIMATIC ET 200S distributed I/O system. This module provides digital outputs for controlling actuators and indicators in the field. It handles high-speed switching tasks with reliable precision. The design ensures seamless integration into PROFIBUS DP networks.
Key Technical Specifications
This section lists the exact parameters for the Siemens 6ES7132-4BD02-0AA0 digital electronic module. Use these figures to verify compatibility with your distributed I/O configuration.
| Parameter | Specification |
|---|---|
| Part Number | 6ES7132-4BD02-0AA0 |
| Type | Digital Electronic Module |
| Product Family | SIMATIC ET 200S |
| Outputs | 2 Digital Outputs |
| Output Voltage | 24V DC |
| Output Current | 2.0 A per channel |
| Short-circuit Protection | Electronic, per channel |
| Diagnostics | Wire-break and short-circuit detection |
| Dimensions (W x H x D) | Approx. 40 x 100 x 40 mm |
| Weight | Approx. 0.1 kg |
| Compatibility | ET 200S terminal modules |
Application and System Integration
This electronic module inserts into the ET 200S terminal base. It connects directly to the PROFIBUS DP network via the interface module. The Siemens 6ES7132-4BD02-0AA0 drives solenoids, contactors, and signal lamps. Each output includes an LED indicator for status monitoring. Consequently, maintenance teams can diagnose faults without additional tools.
Reliability and Performance Features
The electronic short-circuit protection prevents damage from wiring faults. This feature ensures stable operation in demanding field conditions. The module’s compact size saves space in distributed installations. Engineers choose the Siemens for reliable output control in ET 200S systems.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 50 × 290 × 217 mm |
