Operator Interface Module for SIMATIC S5 Systems

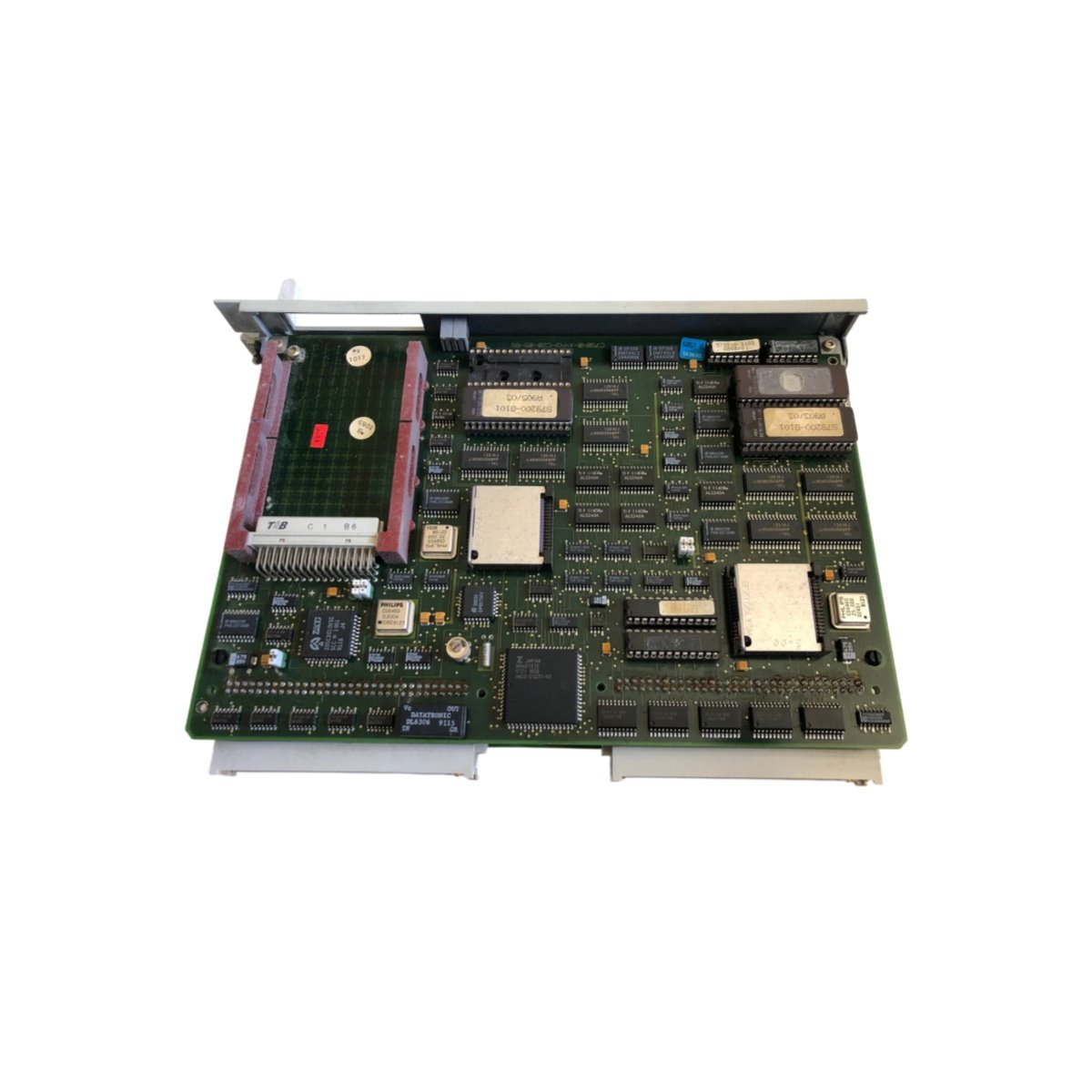

The Siemens 6ES5982-3UB11 functions as an operator interface module for the SIMATIC S5 automation platform. This module connects the PLC to external operator panels and display units. Its design enables clear visualization of process data for plant personnel.

Communication and Interface Capabilities

This HMI module provides a serial interface for connecting operator terminals. A built-in processor manages data exchange between the controller and display units. The module supports multiple communication protocols for flexible integration. Moreover, this interface simplifies system upgrades and maintenance tasks. Consequently, operators gain reliable access to machine status information.

Hardware Integration and Physical Specifications

The 6ES5982-3UB11 fits directly into the standard SIMATIC S5 rack. Its module dimensions comply with S5 form factor requirements for straightforward installation. The module draws power from the S5 backplane for normal operation. Additionally, front-panel LEDs provide clear communication status indication. For this reason, maintenance personnel can quickly diagnose connection issues.

Environmental Ratings and System Compatibility

This HMI interface operates reliably from 0 °C to 60 °C ambient temperature. Its robust design withstands typical industrial environmental conditions. The module integrates seamlessly with S5 processors and power supplies. Furthermore, it supports legacy S5 systems requiring operator interface connectivity. Consequently, this module extends the useful life of existing S5 installations.

Technical Specifications

Details
