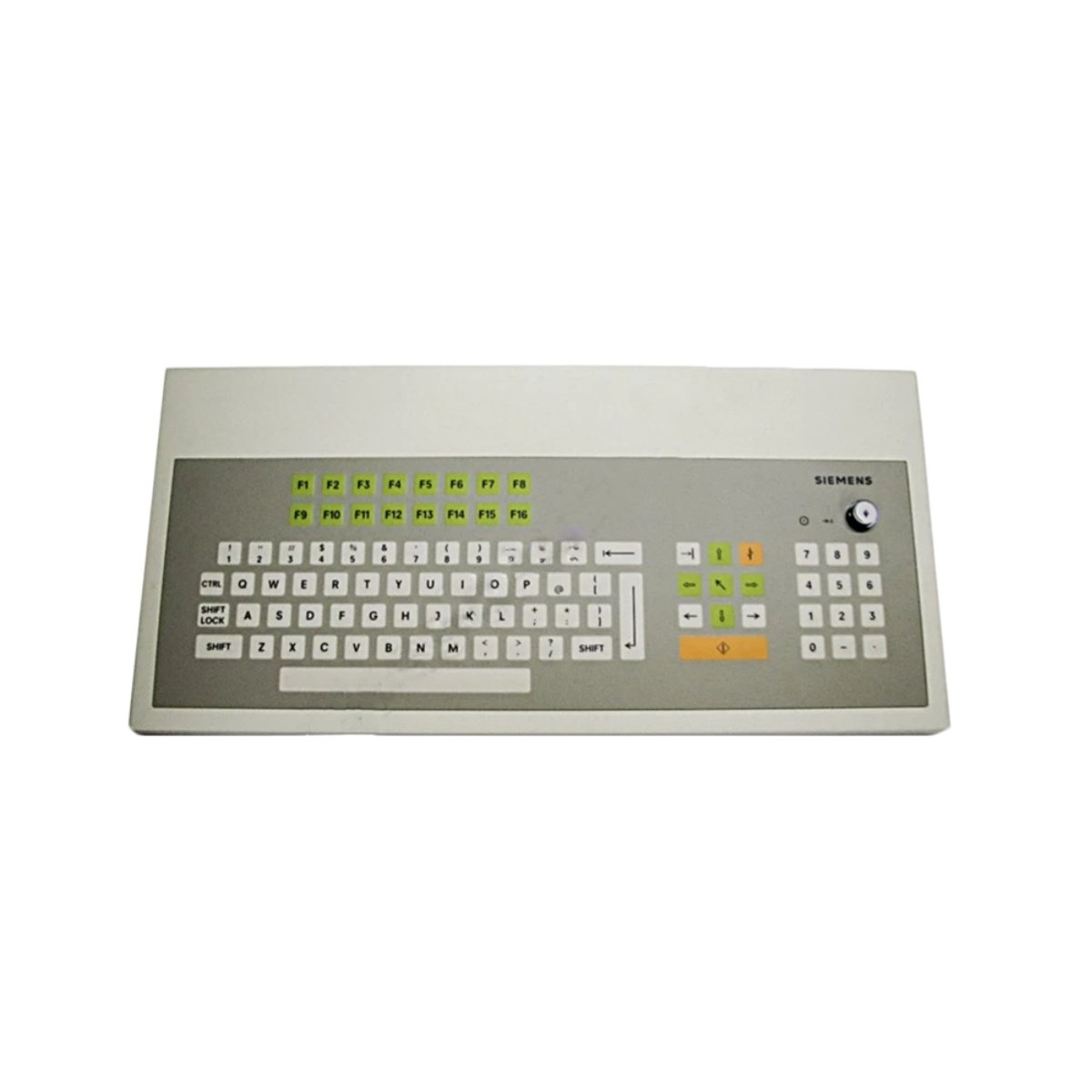

The 6ES5982-2AB12 serves as a rugged alphanumeric keyboard for SIMATIC S5 programmable logic controllers. This input module enables operators to enter commands, parameters, and diagnostic data directly into the control system. Consequently, technicians and engineers gain a reliable interface for industrial environments.

Key Technical Specifications

The 6ES5982-2AB12 features a compact form factor designed for panel mounting. Moreover, its construction supports consistent operation under demanding factory conditions.

Interface and Integration Details

The 6ES5982-2AB12 connects through a parallel bus interface. Therefore, it integrates seamlessly with existing S5 rack configurations. The 64-key layout includes letters, digits, and dedicated function keys. Additionally, the unit requires no independent power supply. Instead, it draws operating voltage directly from the PLC backplane.

Physical Characteristics and Installation

This keyboard measures approximately 483 mm wide and 132 mm high. Furthermore, its 45 mm depth allows flush mounting in control cabinets. The 6ES5982-2AB12 weighs roughly 1.2 kg. Consequently, it adds minimal mechanical load to rack assemblies. Installation follows standard 19-inch rack practices. As a result, commissioning remains straightforward for maintenance teams.

Operational Role in SIMATIC S5 Systems

Operators use the 6ES5982-2AB12 for program entry and machine diagnostics. In addition, it supports manual input during setup and troubleshooting. The keyboard contains no internal battery or capacitor for energy storage. Thus, it avoids periodic replacement needs. Instead, it relies entirely on the host PLC for power and communication.
