Product Overview

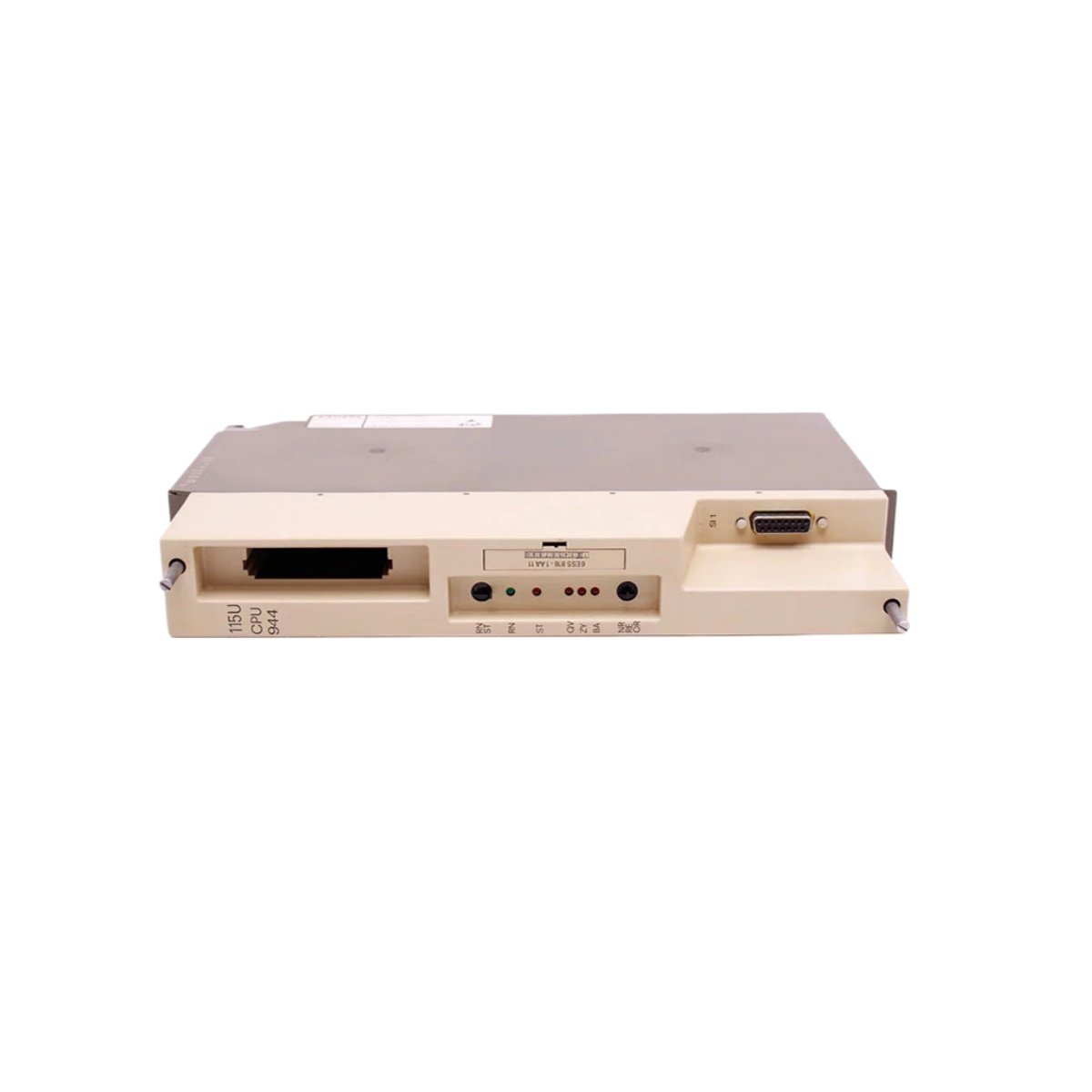

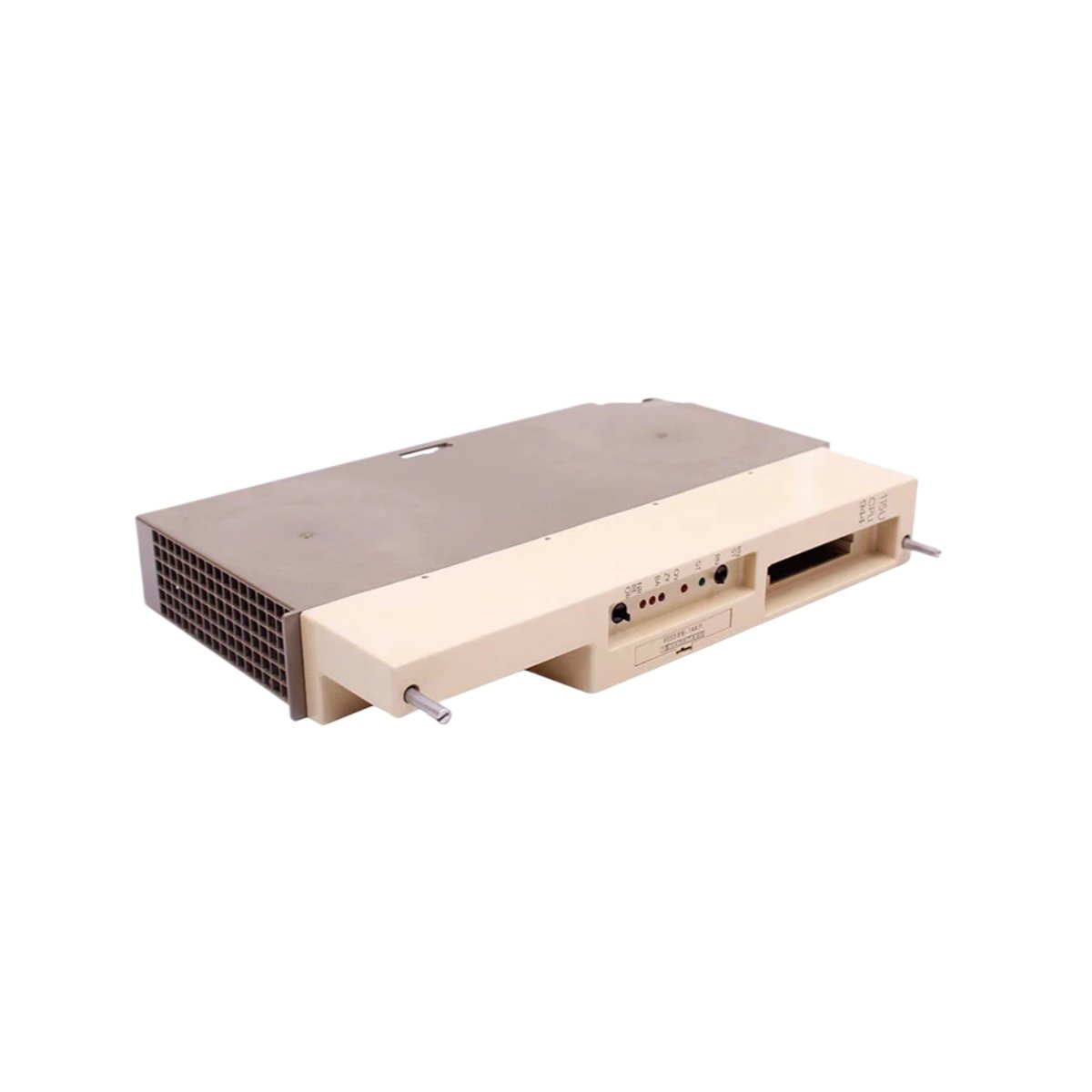

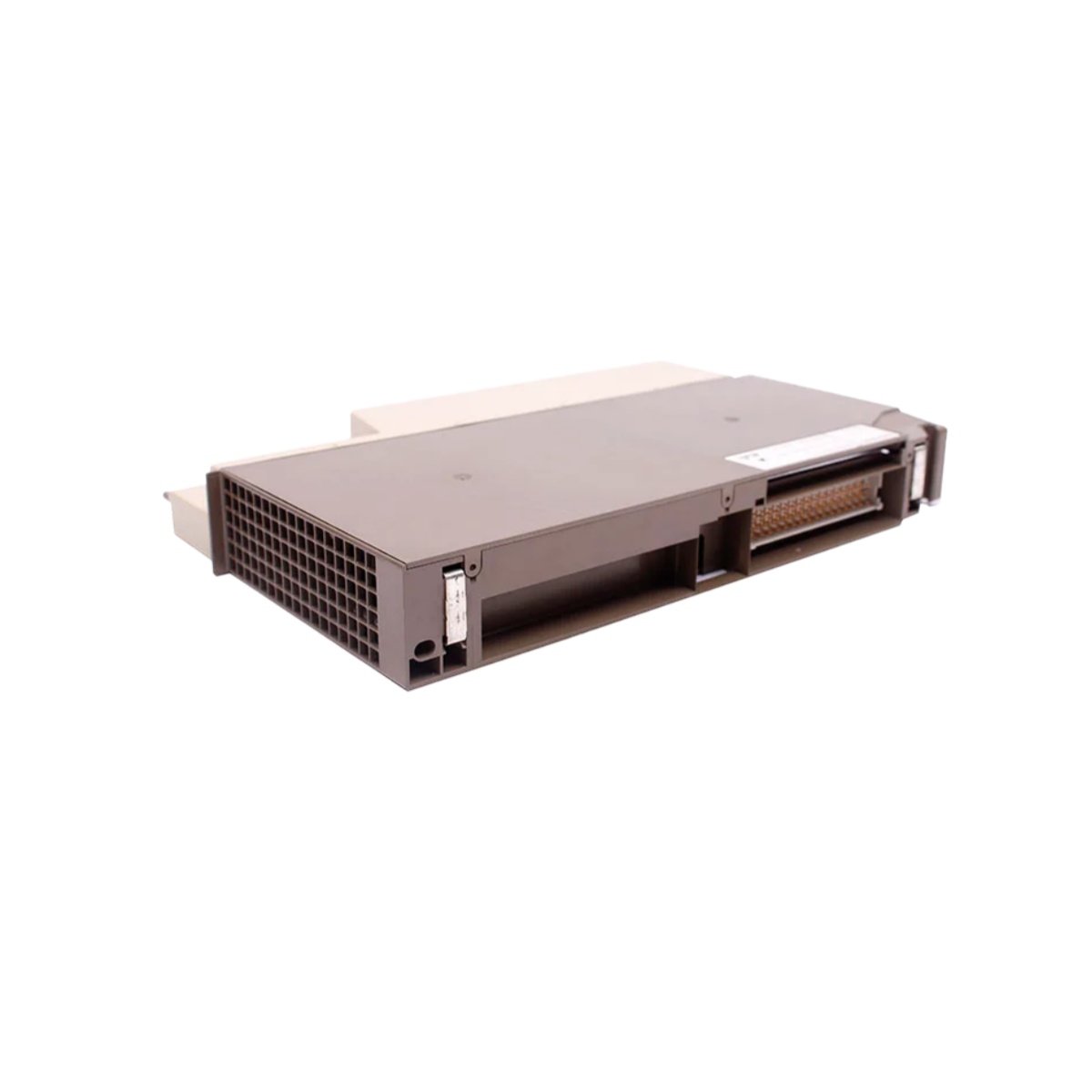

The Siemens 6ES5944-7UA11 functions as the central processing unit for the SIMATIC S5-95U programmable logic controller. This compact CPU module executes user programs and processes I/O signals for industrial automation tasks. Moreover, this processor integrates key system functions into a single, space-efficient package.
Technical Specifications
The 6ES5944-7UA11 features a modular design that fits directly into the S5-95U base unit. This CPU supports a range of standard programming functions and integrates seamlessly with other S5 components. Furthermore, this module provides reliable execution of ladder logic and statement list programs.
| Parameter | Specification |
|---|---|
| Model | 6ES5944-7UA11 |
| Product Type | CPU Module |
| Compatible PLC | SIMATIC S5-95U |
| Programming Languages | Ladder Logic, Statement List (STL) |
| Memory Type | RAM (battery-backed) / EPROM optional |
| Integrated I/O | Limited onboard, requires expansion modules |
| Communication Ports | TTY interface for programmer connection |
| Status Indicators | LED display for operating and fault states |
| Power Consumption | From S5-95U backplane |
| Weight | Approx. 0.15 kg |
Key Design Features
The 6ES5944-7UA11 includes an integrated power supply section and a built-in programming interface for direct PC or programmer connection. Additionally, this CPU module features a memory sub-system that supports battery-backed RAM or optional EPROM modules for program storage.
Application and Integration
The 6ES5944-7UA11 serves as the brain of the S5-95U system, making it suitable for small-to-medium scale automation applications. Industries such as packaging, material handling, and machine control rely on this CPU for dependable operation. Since this product is now obsolete, users can still source it from the secondary market.
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 25 × 290 × 210 mm |
