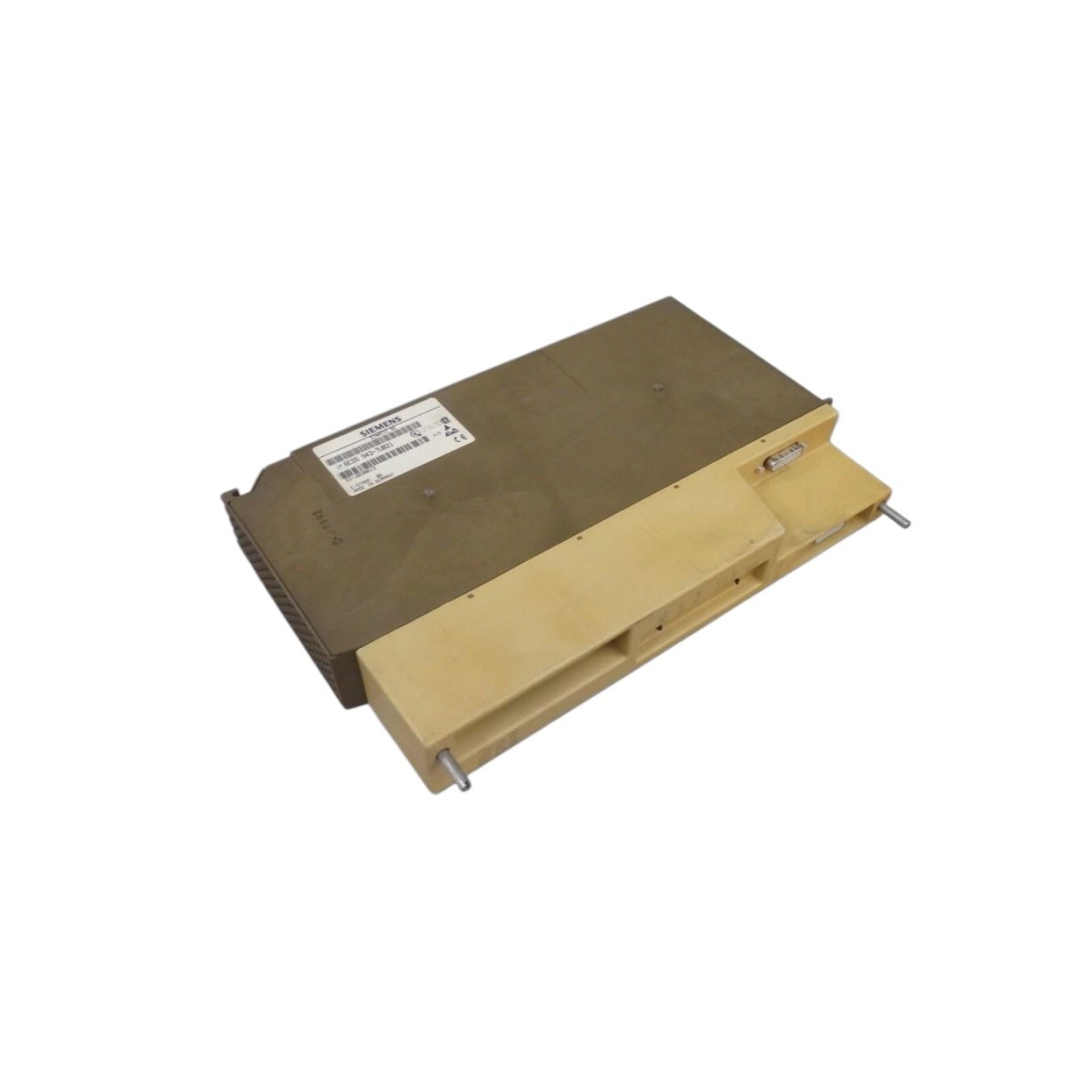

The Siemens 6ES5943-7UB21 central processing unit executes control logic within SIMATIC S5 automation platforms. Engineers install this CPU to manage data processing, program execution, and system communication tasks. Consequently, it serves manufacturing lines, process plants, and utility control rooms.

Technical Specifications and Hardware Details

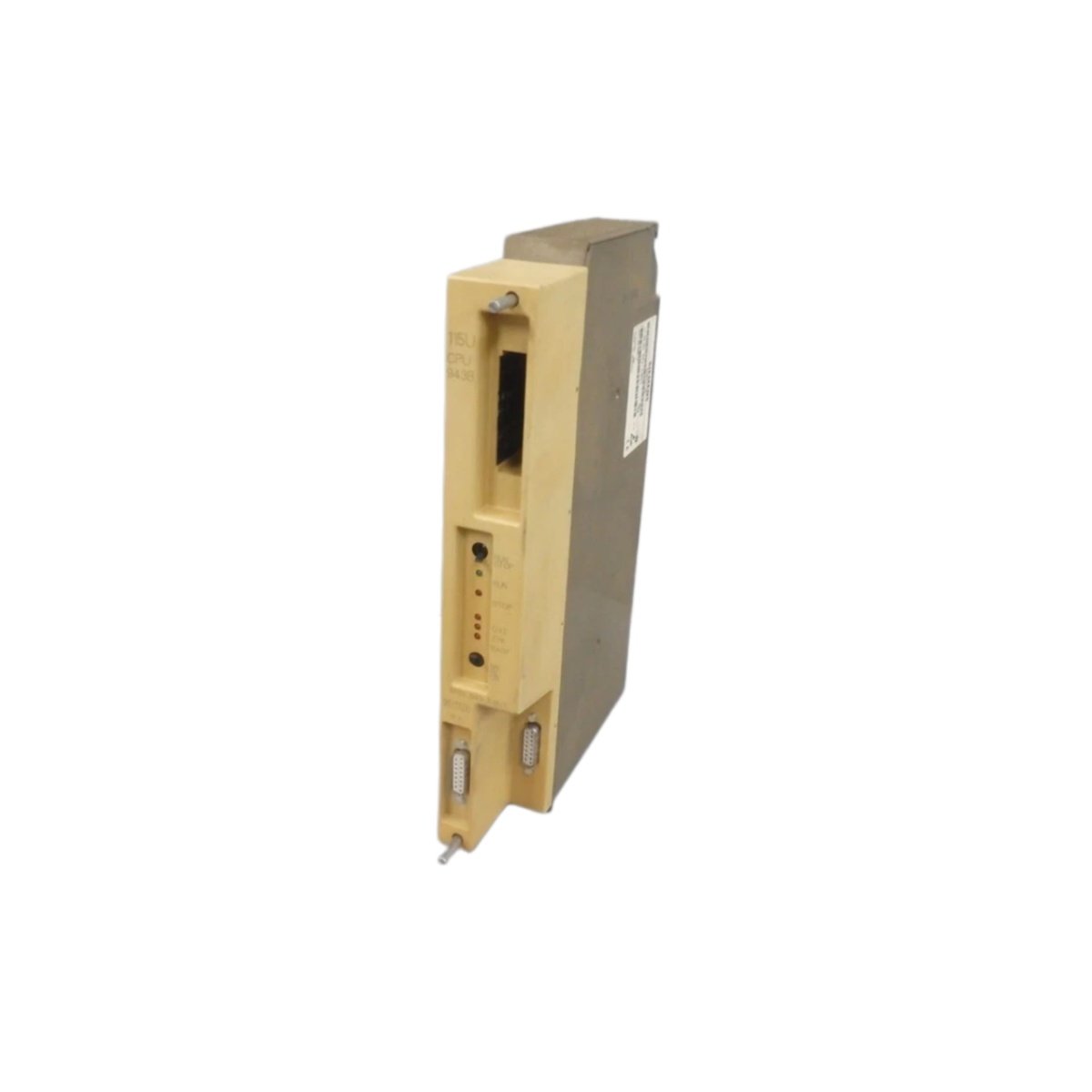

This CPU occupies a dedicated slot inside a compatible SIMATIC S5 rack. It measures roughly 185 mm long, 20 mm wide, and 130 mm high, while it weighs about 0.4 kg. Moreover, the front panel carries status LEDs and a mode selector switch.

Functional Capabilities and System Integration

The CPU executes control programs while it coordinates data exchange across the backplane bus. Meanwhile, the programming port allows engineers to upload and modify logic. A backup battery preserves program memory, therefore data survives brief power interruptions.

Additionally, the design supports communication with I/O modules and host systems. As a result, operators configure and monitor processes efficiently. Clear status LEDs help technicians confirm run mode and fault conditions quickly. Natural convection cools the module inside standard control cabinets.

Installation and Maintenance Guidelines

Technicians should power down the rack before they insert the 6ES5943-7UB21 module. Afterward, verifying backplane connections confirms reliable communication across the system. Replacing the backup battery periodically protects stored program data. Finally, consult Siemens documentation for firmware updates and compatible module combinations.
