Product Overview

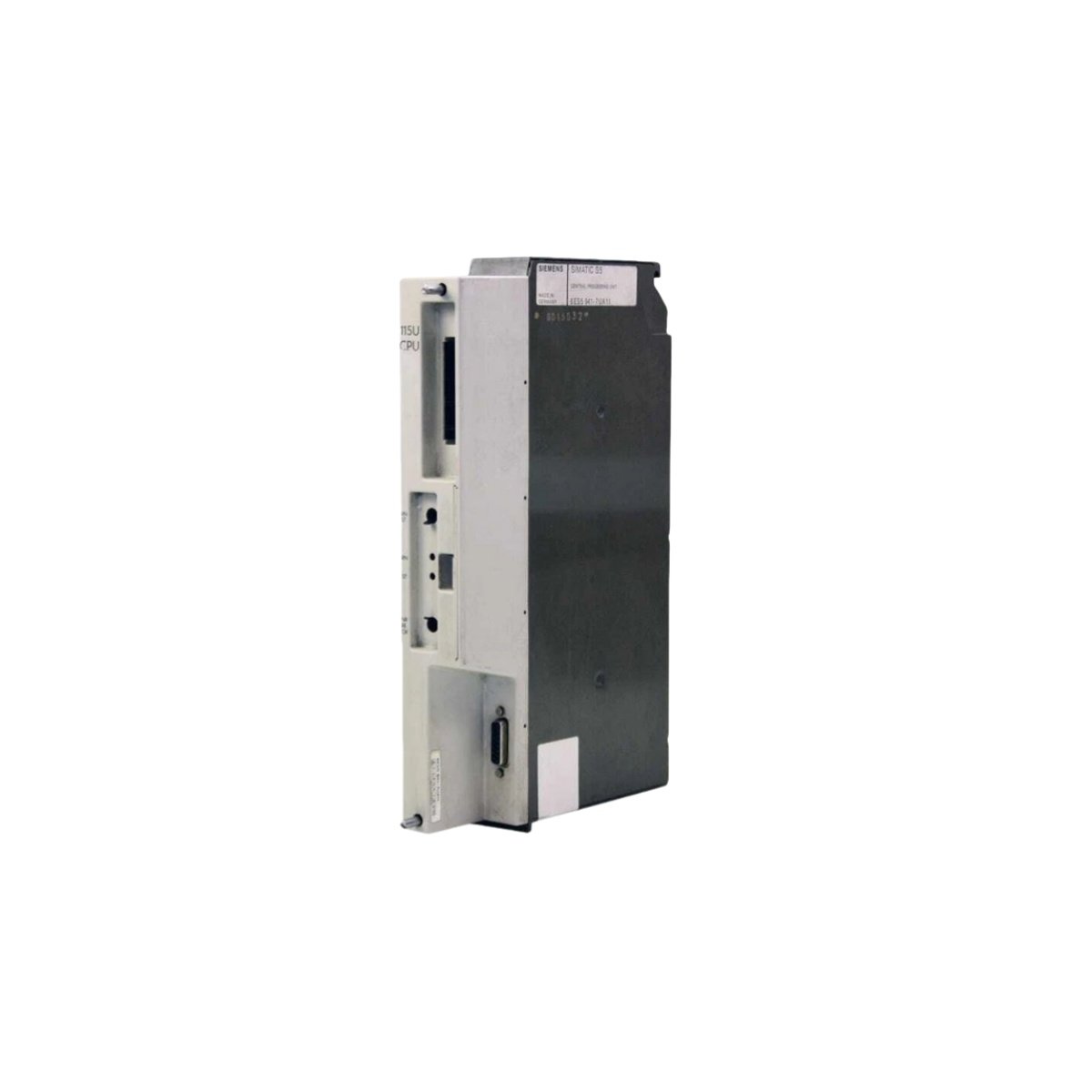

The Siemens 6ES5941-7UA11 is a central processing unit (CPU) module for the SIMATIC S5 programmable logic controller family. This module executes user programs and processes I/O signals with high precision and repeatability. It features a compact design that fits into standard S5-100U rack systems. The unit provides dedicated memory for both program storage and data handling. Users can rely on this CPU for medium-scale automation tasks in manufacturing and process industries. It supports ladder logic and statement list programming methods. The module communicates with connected peripherals through the built-in interface. This controller offers stable operation across a wide range of industrial environments. It includes diagnostic functions for quick fault detection and system recovery. The Siemens 6ES5941-7UA11 delivers consistent scan cycle times for time-critical applications. It also accommodates future system expansions with available memory slots. This CPU interacts seamlessly with input/output modules on the same backplane. Its robust housing protects internal components from dust and mechanical stress. Consequently, this module ensures reliable automation control over many years. The processor handles both bit and word operations efficiently. It enables effective coordination of multiple axes and actuators.

Technical Specifications

The table below details all key technical parameters for the Siemens 6ES5941-7UA11:

Key Functional Features

This CPU module executes user logic with a typical scan time of 1.6 milliseconds per 1K code. It stores program and data in battery-backed RAM to prevent loss during power interruptions. The lithium battery provides approximately two years of memory retention. Its TTY interface enables direct connection to programming terminals or host computers. The module supports up to 64 digital I/O points when you combine it with expansion units. It performs bit logic, arithmetic, and comparison operations with reliable accuracy. The processor handles integer and double-integer data formats for flexible programming. It includes integrated power supply monitoring for safe system shutdowns. The compact 53.3 mm width saves valuable space in control cabinets.

Additionally, the module’s LEDs indicate run, stop, and fault statuses for instant diagnostics. It does not require external cooling due to its low heat dissipation. The Siemens 6ES5941-7UA11 operates between 0 °C and 55 °C for industrial environments. It supports both online and offline program editing via standard Siemens software. Consequently, engineers can modify logic without stopping the entire process. This module maintains data integrity through built-in parity checks. It also provides system reset functionality for rapid error recovery. Its rugged design withstands mechanical vibration in typical factory settings.

Installation and Compatibility

You can install this module directly into any free slot of an S5-100U rack system. Align the module carefully with the backplane connector and push it firmly into place. Ensure the retaining screws tighten securely to maintain reliable electrical contact. Install the lithium battery before powering up the system for the first time. Verify that the ambient temperature does not exceed 55 °C during operation. This CPU works with all S5-100U digital and analog I/O modules. It also communicates with operator panels and other peripherals via the TTY port. Regular battery replacement every two years prevents unexpected memory loss.

Use only approved Siemens lithium batteries for replacement. The module’s memory capacity suits small to medium-sized control applications. It integrates smoothly into existing Siemens automation environments. This CPU supports straightforward program upload and download procedures. Its clear labeling simplifies wiring and troubleshooting tasks. Ultimately, the Siemens 6ES5941-7UA11 offers a dependable solution for machine and process control.
