Central Processing Core for S5 Systems

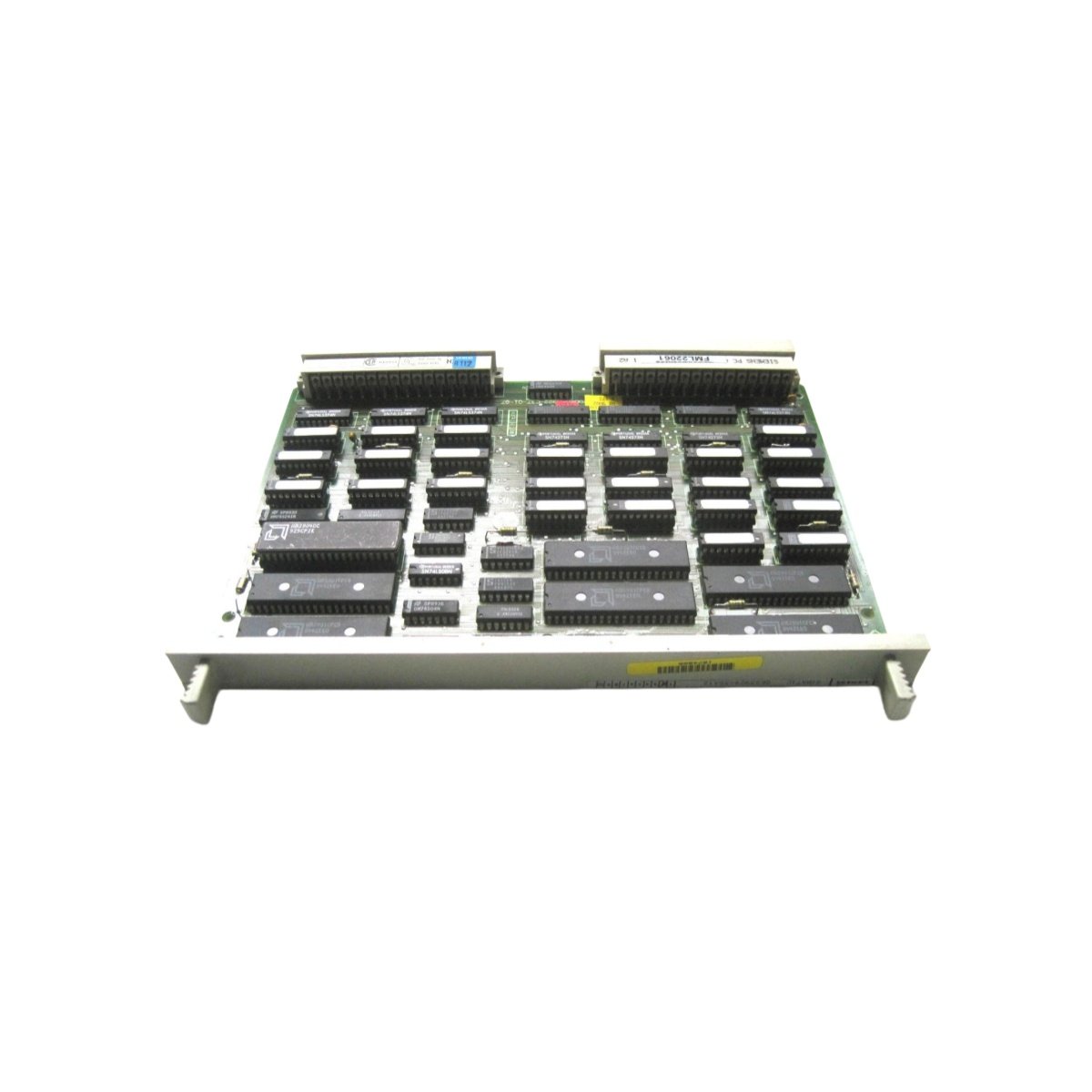

This CPU board serves as the central processing unit for the SIMATIC S5 programmable controller. The 6ES5924-3SA12 executes user programs and manages all system resources efficiently. It houses the processor, memory, and critical system interfaces on a single board. The CPU supports a comprehensive instruction set for logic, arithmetic, and data handling operations. Its robust design ensures reliable performance in demanding industrial applications.

Technical Specifications and Physical Attributes

The 6ES5924-3SA12 operates on a 5 V DC supply from the S5 backplane. It provides 64 KB of RAM for program and data storage. The board offers 16 digital inputs and 16 digital outputs for direct field connectivity. For communication, it includes a 15-pin SUB-D interface for point-to-point communication. The unit measures 232 mm in depth and 25 mm in width. It weighs approximately 0.5 kg. Furthermore, the CPU boasts a cycle time of 1 to 4 ms for 1,000 binary statements. Its operating temperature spans 0 °C to 60 °C for consistent industrial operation.

Integration and Application Guidance

This CPU board provides the intelligence for small to medium-scale S5 automation projects. First, insert the 6ES5924-3SA12 securely into the designated slot of the S5 rack. Then, connect the input and output devices to the appropriate front connector terminals. For the communication port, wire the SUB-D connector to peripheral devices as needed. Additionally, program the CPU using the STEP 5 software via the programming port. The 6ES5924-3SA12 suits applications in conveyor control, packaging, and simple process automation.
