Central Processing Unit for Advanced Automation Tasks

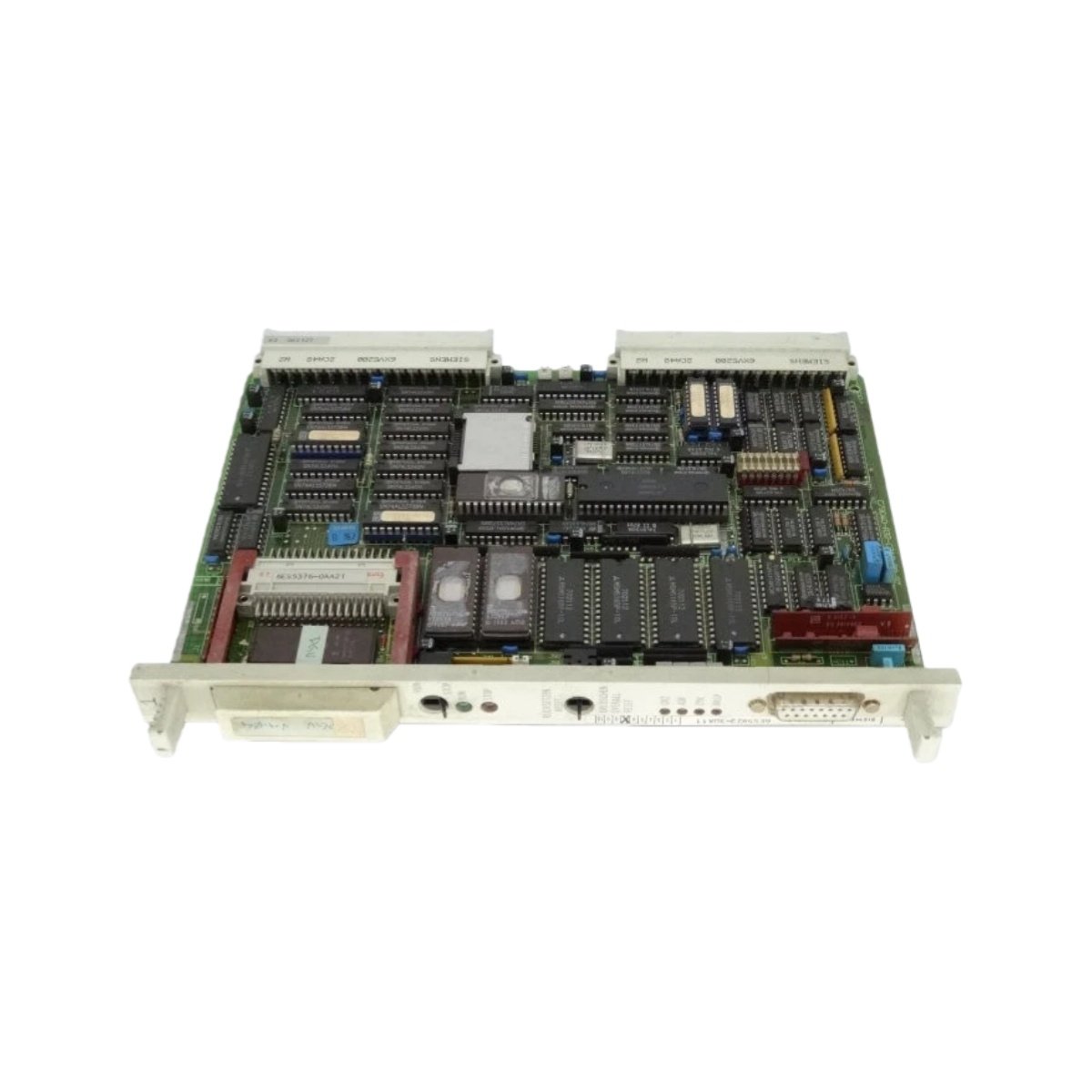

This CPU module serves as the central processing core for the Siemens SIMATIC S5 series PLC systems. It executes user-defined logic programs and handles all system computation tasks efficiently. The Siemens 6ES5922-3UA11 features a powerful 16-bit processor architecture for high-speed operation. It accommodates up to 64 KB of user program memory for complex control applications. The CPU processes 1,024 digital I/O points and 128 analog I/O channels. It performs cyclic program execution with a typical scan time of 1 ms per 1,000 instructions.

Physical Dimensions and Installation Specifications

The unit measures 232 mm in height, 25 mm in width, and 213 mm in depth. It weighs approximately 0.65 kg with all connectors and mounting hardware included. The 6ES5922-3UA11 inserts directly into a designated slot on the S5 series rack. Its compact single-width design saves valuable space in the control cabinet. This modular format enables easy system expansion and maintenance.

Interface Connectivity and Communication Capabilities

A front-facing 15-pin D-sub connector provides the programming device interface for software uploads. The Siemens 6ES5922-3UA11 integrates with the I/O bus for seamless data exchange. It communicates with peripheral modules via the S5 backplane bus architecture. The CPU includes an RS-232 interface for connecting to external devices. LED indicators on the front panel display run, stop, and fault status conditions.

Internal Architecture and Energy Storage Elements

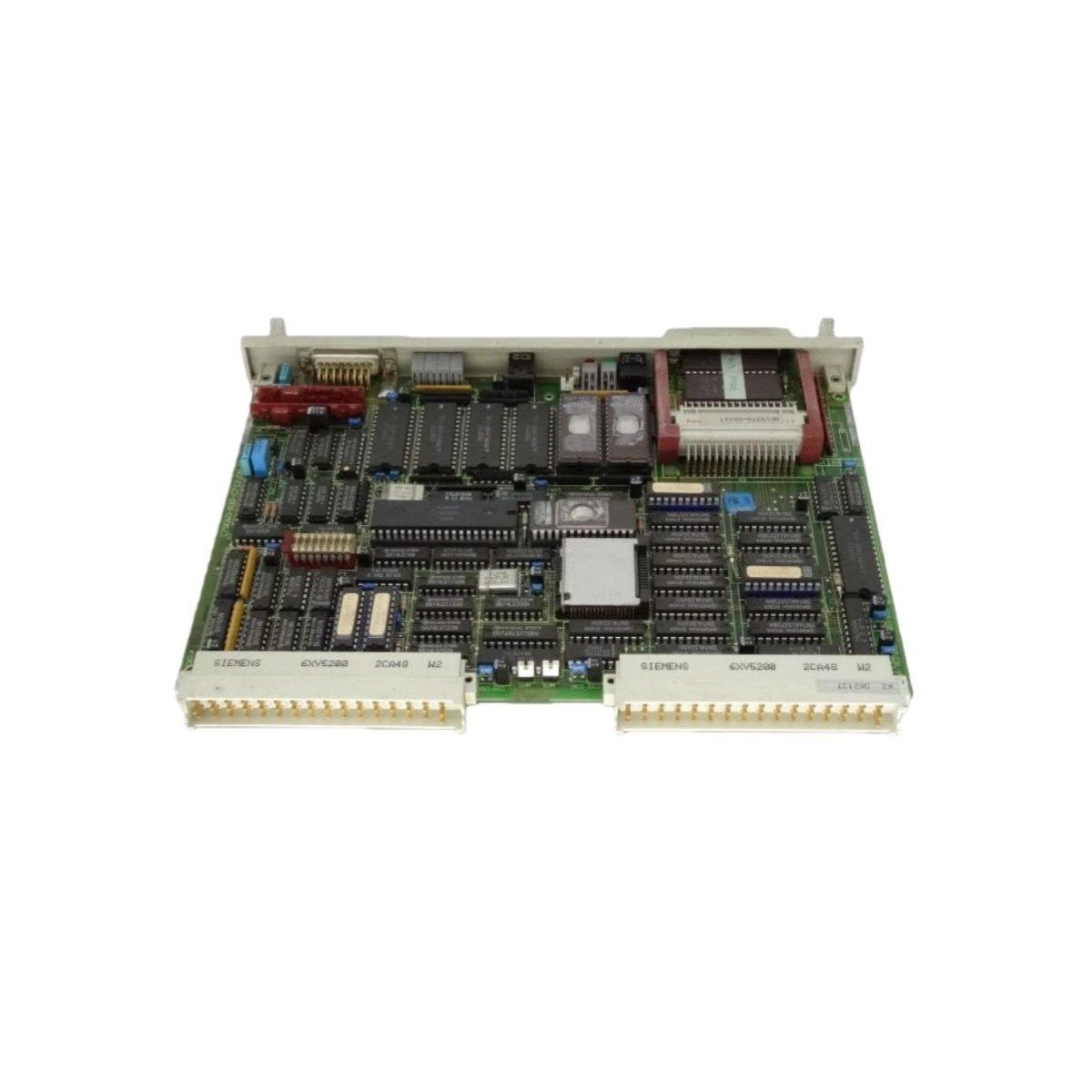

The PCB contains a 16-bit microprocessor, RAM memory, and EPROM storage for firmware. The 6ES5922-3UA11 uses a 220 µF capacitor for buffering during brief power interruptions. It stores the user program in battery-backed RAM to prevent data loss. The CPU includes a real-time clock for time-stamping events and alarms. A watchdog timer automatically resets the processor in case of a software fault.

Recommended Installation and Programming Practices

Insert the Siemens 6ES5922-3UA11 into the correct slot on the S5 rack with care. Ensure the battery is fresh before loading the program into the CPU memory. Use the programming software to compile and transfer the user logic to the module. Test all program functions thoroughly before placing the system into production. Verify that the watchdog timer settings match the application requirements. Schedule periodic battery checks as part of the preventive maintenance routine.
