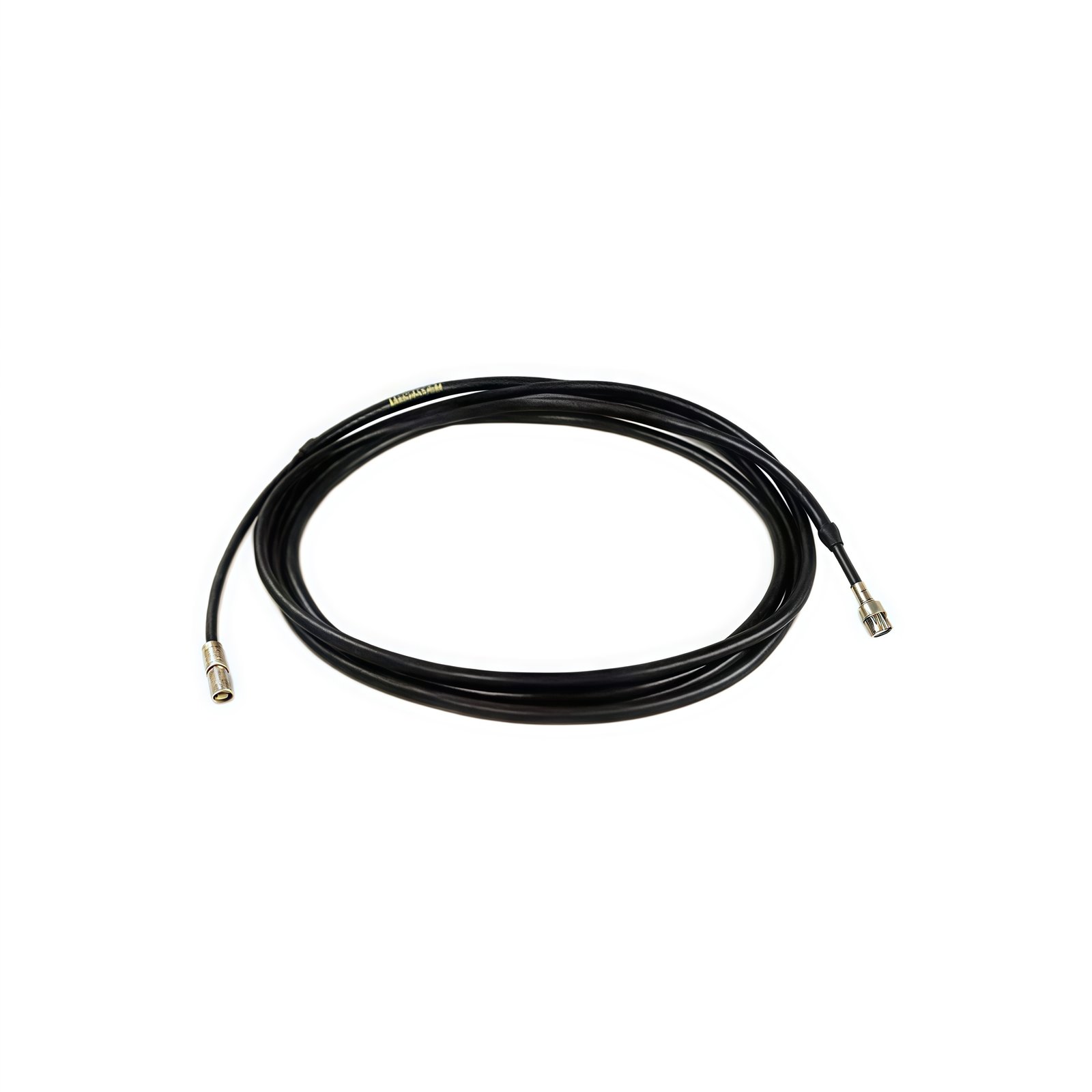

The Siemens 6ES5736-2BD20 printer connecting cable links programming devices to industrial printers. Engineers select this cable for dependable data transfer across commissioning environments. Moreover, its shielded construction supports stable communication in electrically noisy cabinets.
Interface and Connectivity
The cable terminates with dedicated connectors for secure attachment to controller ports. Additionally, it carries multiple conductors within one protective jacket. These conductors support serial data transmission, therefore covering common programming requirements. Shielding surrounds the signal lines, which reduces electromagnetic interference considerably.
Physical Dimensions and Weight
The cable measures 2 meters in length with a nominal outer diameter of 7 mm. Furthermore, it weighs approximately 200 grams, which simplifies routing inside cabinets. Consequently, technicians connect it quickly without specialized tools.
Component Count and Energy Storage
The 6ES5736-2BD20 integrates twisted conductors for reliable serial signaling. It also contains a drain wire connected to the overall shield. Therefore, this construction maintains signal quality along the full cable run. The assembly carries roughly 10 discrete conductor elements.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Model | 6ES5736-2BD20 |
| Category | Printer Connecting Cable |
| Cable Length | 2 m |
| Outer Diameter | ~7 mm |
| Weight | ~200 g |
| Conductor Type | Twisted with Shield |
| Connector Type | Dedicated Serial |
| Shielding | Overall Foil plus Drain Wire |
| Operating Temperature | 0°C to 60°C |
Why This Cable Suits Industrial Applications
System integrators value the 6ES5736-2BD20 for its stable transmission and simple routing. Meanwhile, the overall shield protects data from electrical noise. As a result, communication reliability improves while maintenance costs decrease.
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 250 × 25 × 210 mm |
