Core Connectivity Solution for S5 Distributed Architectures

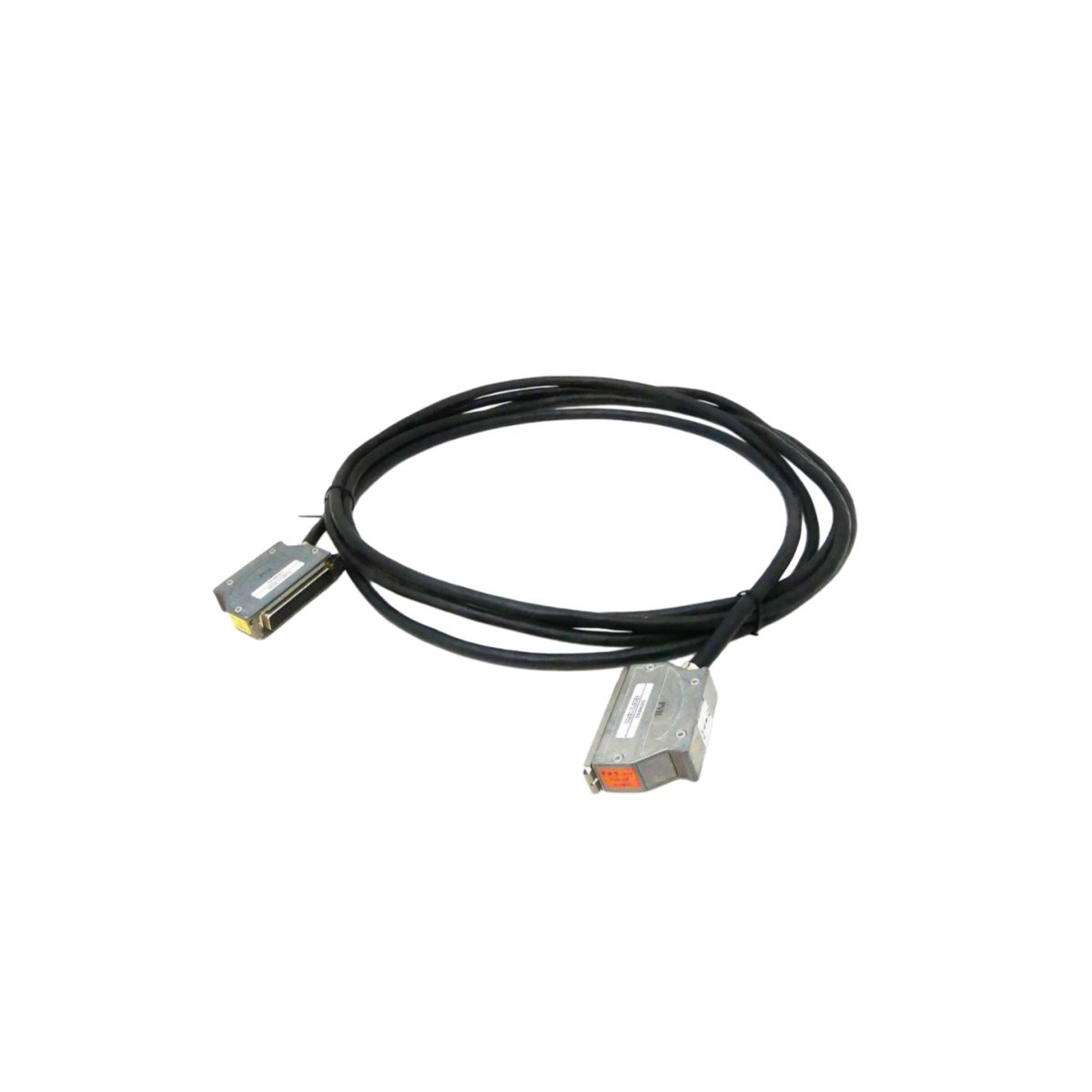

The Siemens 6ES5721-5BF00 is a plug‑in cable for the SIMATIC S5 programmable logic controller family . This cable provides a secure physical connection between S5 central controllers and remote expansion racks . It transmits both power and data signals over a distance of up to 100 meters . Consequently, it enables flexible system layouts where the main rack resides far from field I/O points .

Designed for Reliability in Industrial Environments

This cable features robust connectors and durable insulation to withstand the demands of factory environments . Its design ensures reliable signal transmission even in areas with electrical noise, such as motor control centres and welding bays . The 6ES5721-5BF00 simplifies system expansion by providing a pre‑terminated, ready‑to‑use interconnection solution . Furthermore, its straightforward installation reduces cabinet wiring time and improves overall system maintainability.

Technical Specifications and System Application

Engineered specifically for the S5 platform, this cable maintains the electrical characteristics required for stable data exchange . Its specifications define cable length, connector types, and the current‑carrying capacity necessary for powering remote modules. The following table details its primary identification and functional parameters.

Application in Legacy S5 Support

System integrators use this cable to maintain connectivity between S5 CPUs and remote I/O racks or operator panels . It is invaluable in industries like automotive, material handling, and utilities, where S5 controllers remain in operation. The Siemens 6ES5721-5BF00 supports reliable interconnection for legacy systems without requiring custom wiring. Therefore, sourcing tested cables is crucial for preserving operational stability in older plant environments.
