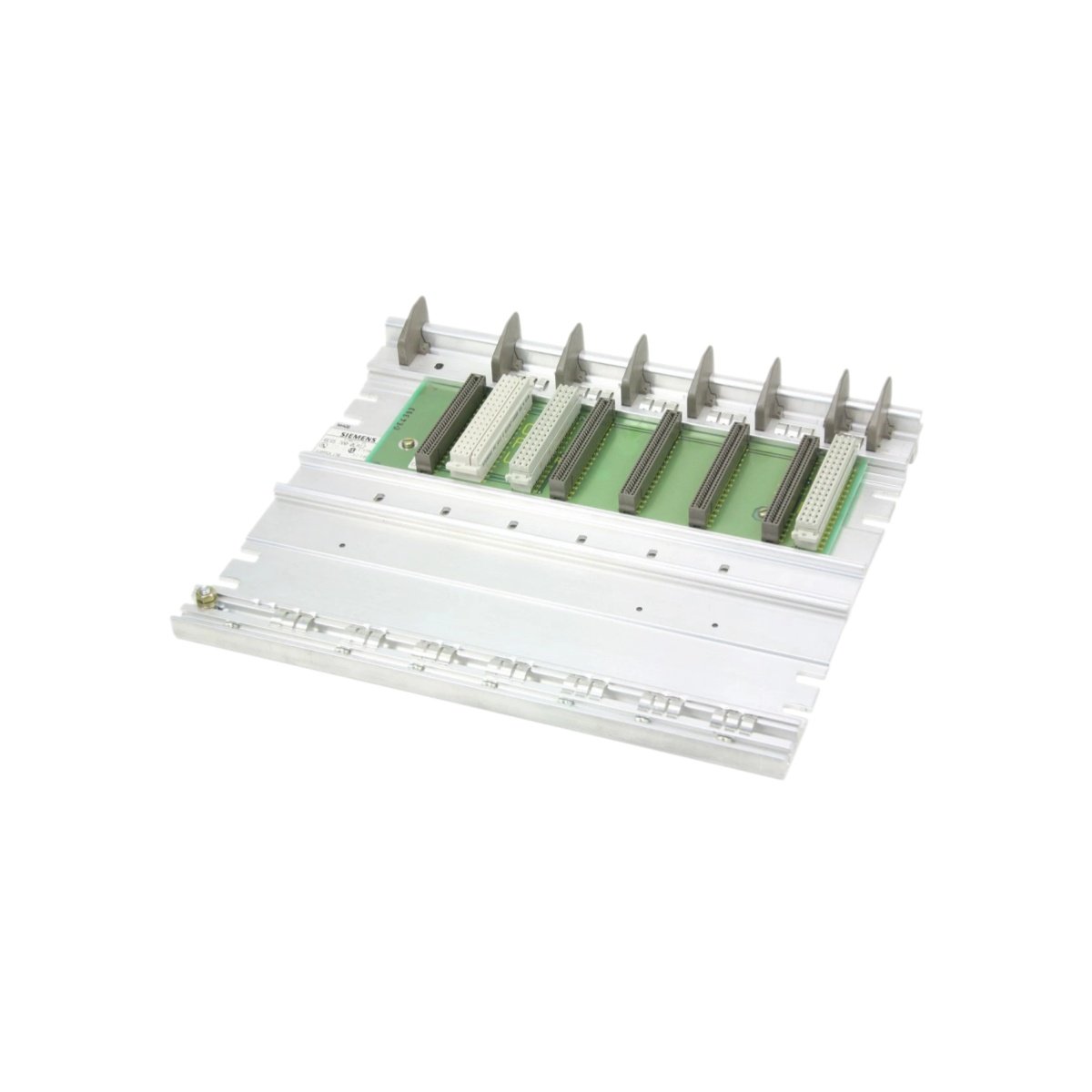

The Siemens 6ES5700-0LA12 rack provides a sturdy mounting platform for SIMATIC S5 modules in industrial control cabinets. Engineers choose this chassis to hold the power supply, CPU, and I/O boards in one organized frame. Consequently, it serves manufacturing lines, process plants, and utility control rooms.

Technical Specifications and Hardware Details

This rack offers multiple slots and accepts a range of SIMATIC S5 plug-in modules. It measures roughly 483 mm wide, 177 mm high, and 300 mm deep, while it weighs about 5 kg. Moreover, the chassis fits standard 19-inch cabinet installations.

Functional Capabilities and System Integration

The backplane routes power while it carries data between the CPU and each plug-in module. Meanwhile, the rigid frame holds modules firmly against vibration and mechanical stress. Guide rails align each board, therefore technicians avoid incorrect insertion.

Additionally, the design allows expansion through additional racks and bus cables. As a result, installers scale systems without replacing the original chassis. Clear slot numbering helps operators identify module positions during troubleshooting. The open architecture also supports natural convection cooling.

Installation and Maintenance Guidelines

Technicians should secure the rack to a cabinet frame before they insert modules. Afterward, verifying backplane connections confirms reliable communication across the system. Periodic inspection of mounting screws prevents loosening from machine vibration. Finally, consult Siemens documentation for slot assignments and module compatibility.
