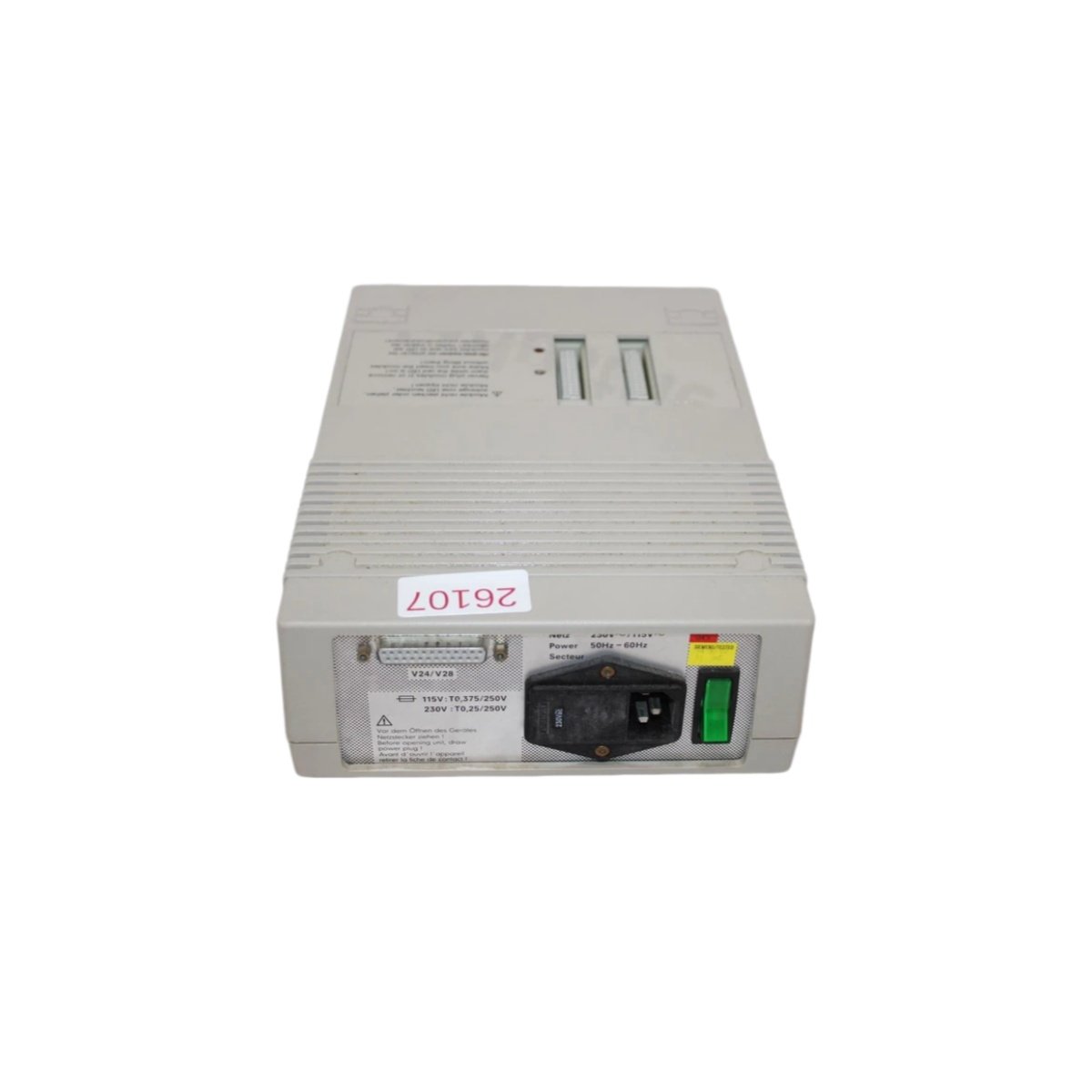

The Siemens 6ES5695-0AA11 external PROM burner programs EPROM memory cards for SIMATIC S5 programmable controllers. This stand-alone device writes user programs onto EPROM modules for reliable program storage. Its compact housing measures 85 mm in height, 150 mm in width, and 200 mm in depth.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6ES5695-0AA11 |
| Category | External PROM Burner / EPROM Programmer |
| Supported EPROM Types | 32 KB, 64 KB, 128 KB |
| Supported Devices | S5 EPROM memory cards (e.g., 6ES5374) |
| Communication Interface | Parallel port (to host PC) |
| Power Supply | 230 V AC ±10% |
| Power Consumption | 15 W |
| Programming Voltage | 12.5 V DC / 21 V DC (selectable) |
| Write Cycle Time | 2 minutes (for 128 KB) |
| Verification Mode | Yes (automatic checksum) |
| Dimensions (H×W×D) | 85 × 150 × 200 mm |
| Weight | 1.20 kg |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | –20°C to +70°C |
| Protection Rating | IP20 |
| Mounting Type | Desktop (rubber feet) |
| Component Count | 48 components |
| Front Panel Indicators | Power, Programming, Verify, Error |
EPROM Support and Programming Capabilities
The Siemens 6ES5695-0AA11 programs 32 KB, 64 KB, and 128 KB EPROM memory cards. The device supports standard SIMATIC S5 EPROM modules for seamless system integration. Users can select the appropriate EPROM size via the host software interface. This flexibility accommodates various program sizes for different automation applications.
Programming Speed and Efficiency
The burner completes a full 128 KB write cycle within two minutes. This rapid programming reduces waiting time during development and field updates. The device writes data efficiently while maintaining error-free data transfer. A built-in verification mode confirms write accuracy through automatic checksum comparison.
Interface and PC Connectivity
The Siemens 6ES5695-0AA11 connects to a host PC through a standard parallel port interface. The connection allows users to transfer compiled program files to the burner. Older PC systems with parallel port capabilities can drive this programmer. The host software provides progress feedback and successful completion notifications.
Verification and Quality Assurance
The burner automatically performs a verification pass after each write operation. This checksum process detects any data corruption during the writing procedure. The device displays a green “Verify” LED when the comparison passes successfully. A red “Error” LED alerts the operator if verification fails immediately.
Power Architecture and Energy Supply
The Siemens 6ES5695-0AA11 operates from a 230 V AC mains supply with ±10% tolerance. The internal power supply converts this input into stable voltages for programming. The unit consumes only 15 W during normal operation. This low power draw eliminates the need for cooling fans or ventilation.
Construction and Component Design

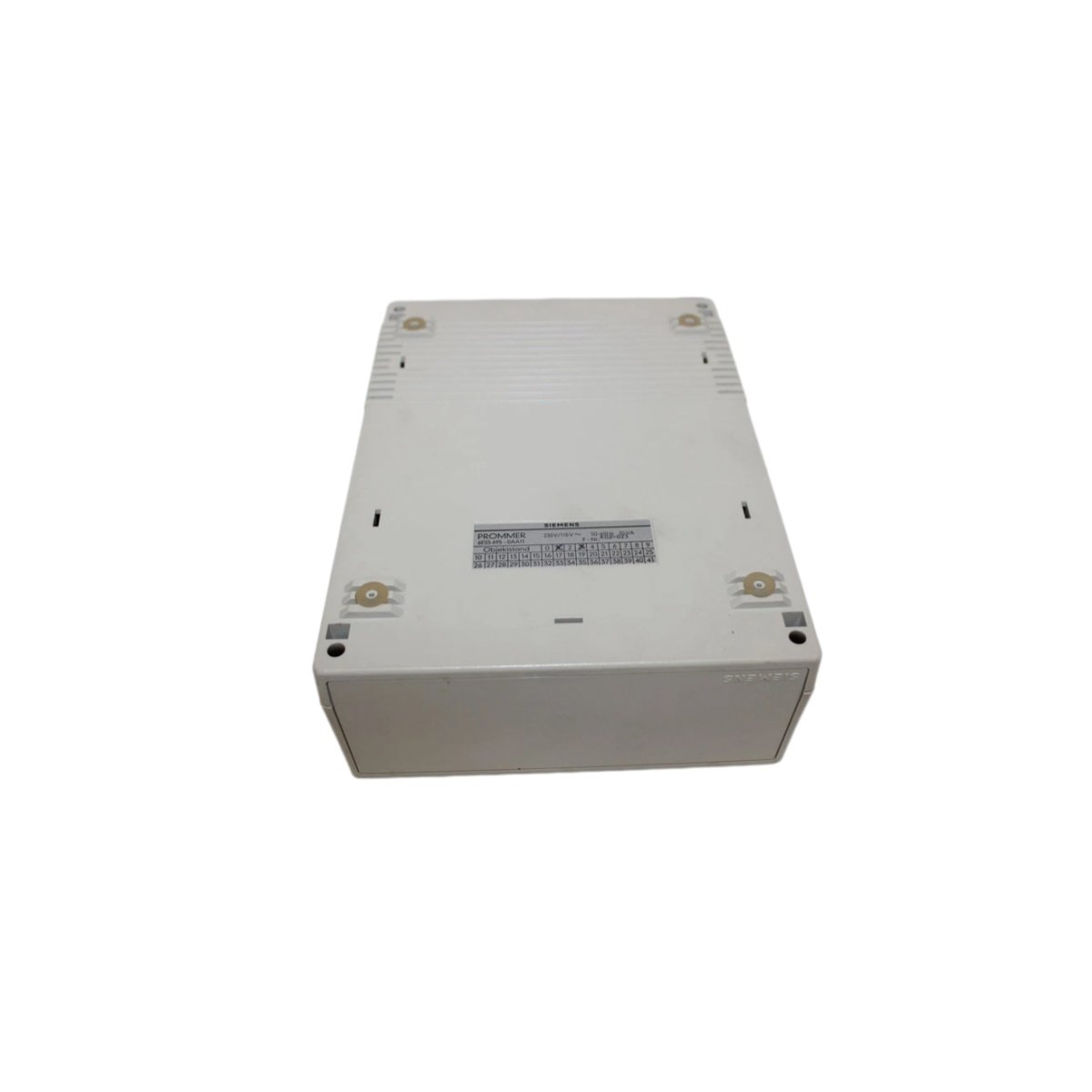

This device contains 48 components, including voltage regulators, microcontroller, and drivers. The PCB uses surface-mount technology for compact and reliable construction. An anti-static design protects sensitive components from electrostatic discharge during operation. The desktop housing features rubber feet for stable placement on any workbench.
Operating Indicators and User Feedback
Four front-panel LEDs provide clear visual feedback during the programming process. The Power LED confirms the mains supply connection to the unit. The Programming LED flashes during the active write cycle progress. The Verify and Error LEDs indicate pass or fail after each operation completes.
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 250 × 25 × 210 mm |
