Product Overview

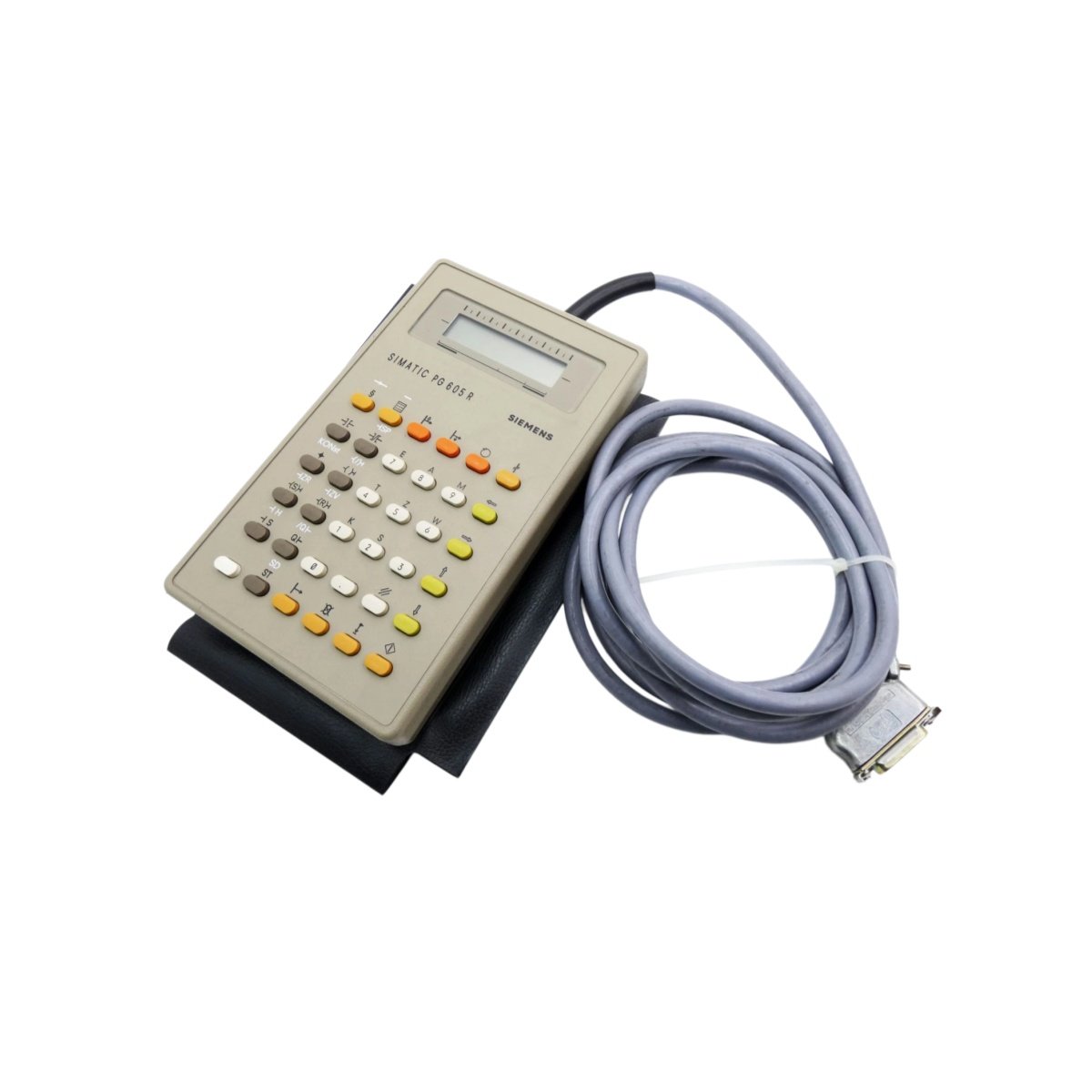

The Siemens 6ES5605-0RA11 serves as a dedicated programming terminal for the S5 series PLC family. This portable unit allows engineers to write, debug, and document control programs on-site. Maintenance teams rely on this device for rapid troubleshooting and logic modifications. The unit integrates a full keyboard and display for standalone operation.
Technical Specifications
This programming unit features a built-in processor tailored specifically for S5 programming tasks. The Siemens 6ES5605-0RA11 connects directly to the PLC via an integrated serial interface. Its compact, portable design includes a carrying handle for field mobility. The device’s LCD screen displays ladder logic and statement lists clearly.
| Parameter | Specification |
|---|---|
| Product Type | Programming Unit / Portable Programmer |
| Compatibility | Siemens SIMATIC S5 (all CPU models) |
| Display Type | LCD (8 lines x 40 characters) |
| Keyboard | Full alphanumeric with function keys |
| Memory | 256 KB RAM for program storage |
| Energy Storage | Lithium battery (3.6 V) retains programs for 6 months |
| Interface | 15-pin D-sub connector (TTY/RS-232) |
| Communication Protocol | SINEC L1 / point-to-point |
| Programming Language | STEP 5 (Ladder, Statement List, CSF) |
| Dimensions (W x H x D) | 380 mm x 140 mm x 80 mm |
| Weight | Approximately 2.8 kg |
| Power Supply | 230 V AC via external adapter |
| Power Consumption | Maximum 15 W |
| Operating Temperature | 5°C to +45°C |
| Storage Temperature | -20°C to +60°C |
Programming Capabilities
This unit supports full STEP 5 programming with online monitoring functions. The Siemens 6ES5605-0RA11 enables engineers to edit logic blocks and data tables interactively. Users can upload existing programs from the PLC for analysis or modification. The device also performs system diagnostics and force functions for testing.
Data Management and Storage
The Siemens 6ES5605-0RA11 stores multiple program versions in its internal memory. The battery-backed RAM preserves programs during transport and power-off periods. Users can transfer programs between the unit and PLCs using simple key commands. This capability facilitates machine cloning and program archiving tasks.
Display and User Interface
The LCD screen provides clear visual feedback during programming operations. The Siemens 6ES5605-0RA11 shows rung status and register values in real-time. The keyboard layout includes dedicated keys for frequent programming actions. Menus guide users through configuration and diagnostic procedures.
Application Scenarios
Field service engineers carry this unit for on-site PLC commissioning and troubleshooting. System integrators use it during initial startup and acceptance testing. The Siemens 6ES5605-0RA11 also serves as a training tool for maintenance personnel.
Details
| Weight | 2.8 kg |
|---|---|
| Dimensions | 380 × 140 × 80 mm |
