Core Specifications of the Mass Storage Module

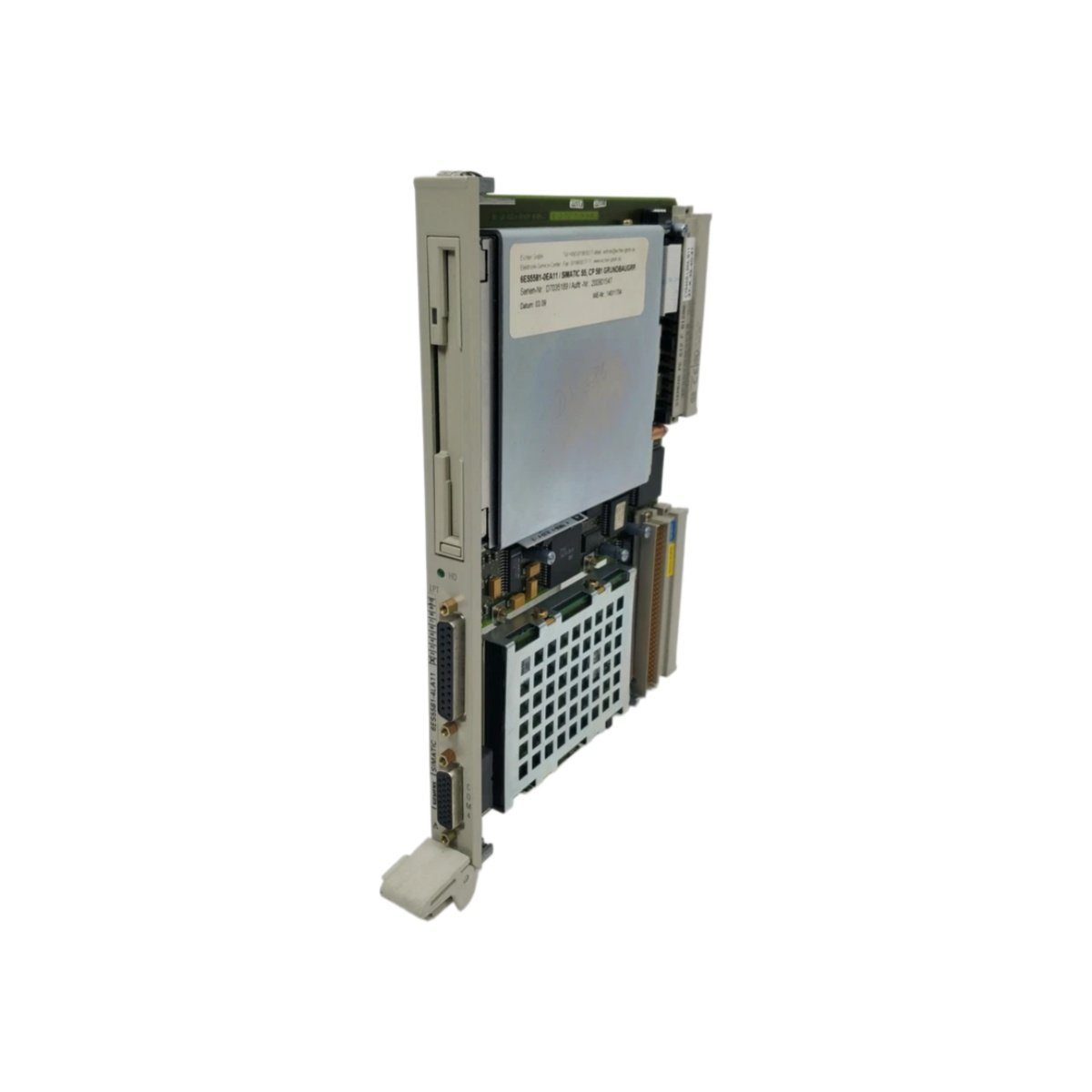

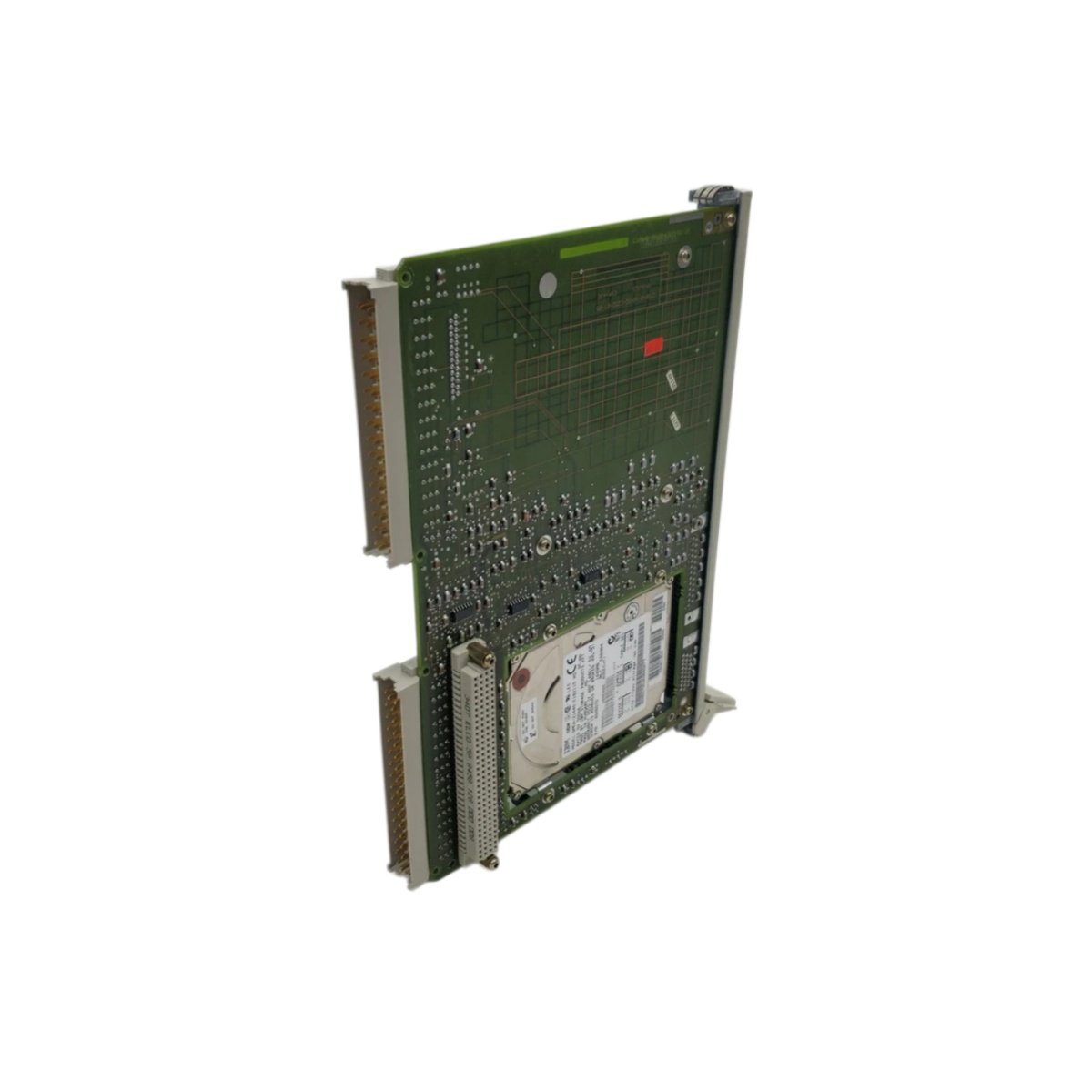

The 6ES5581-4LA11 belongs to the Siemens SIMATIC S5 family of mass storage modules. This memory card stores user programs, configuration data, and recipe files for S5 control systems. Moreover, it suits legacy S5-115U and S5-135U racks that remain in active service.

Each module occupies a single slot in the central rack. Additionally, the unit weighs roughly 0.40 kg with its housing installed. The front panel measures 20 mm in width and 130 mm in height, while the 4LA11 suffix defines the memory capacity and interface layout.

Interface and Mounting Details

The 6ES5581-4LA11 slides into the S5 central rack and connects to the backplane bus. Consequently, technicians complete replacement without rewiring field terminations. This module exchanges data with the CPU through the S5 parallel bus. Therefore, it expands program and data storage within the same system.

A front access panel allows quick battery inspection and replacement. Meanwhile, the onboard RAM retains stored data during short power interruptions.

Performance and Application Notes

Plant operators keep the 6ES5581-4LA11 in service for continuous process control. Furthermore, the module preserves critical program blocks across unexpected outages. Its 512 KB capacity handles moderate control programs and recipe tables. Meanwhile, the backup battery protects stored data for extended periods.

The module stores energy in its backup battery, since the card itself draws backplane power. As a result, maintenance teams replace the battery on a scheduled basis.
