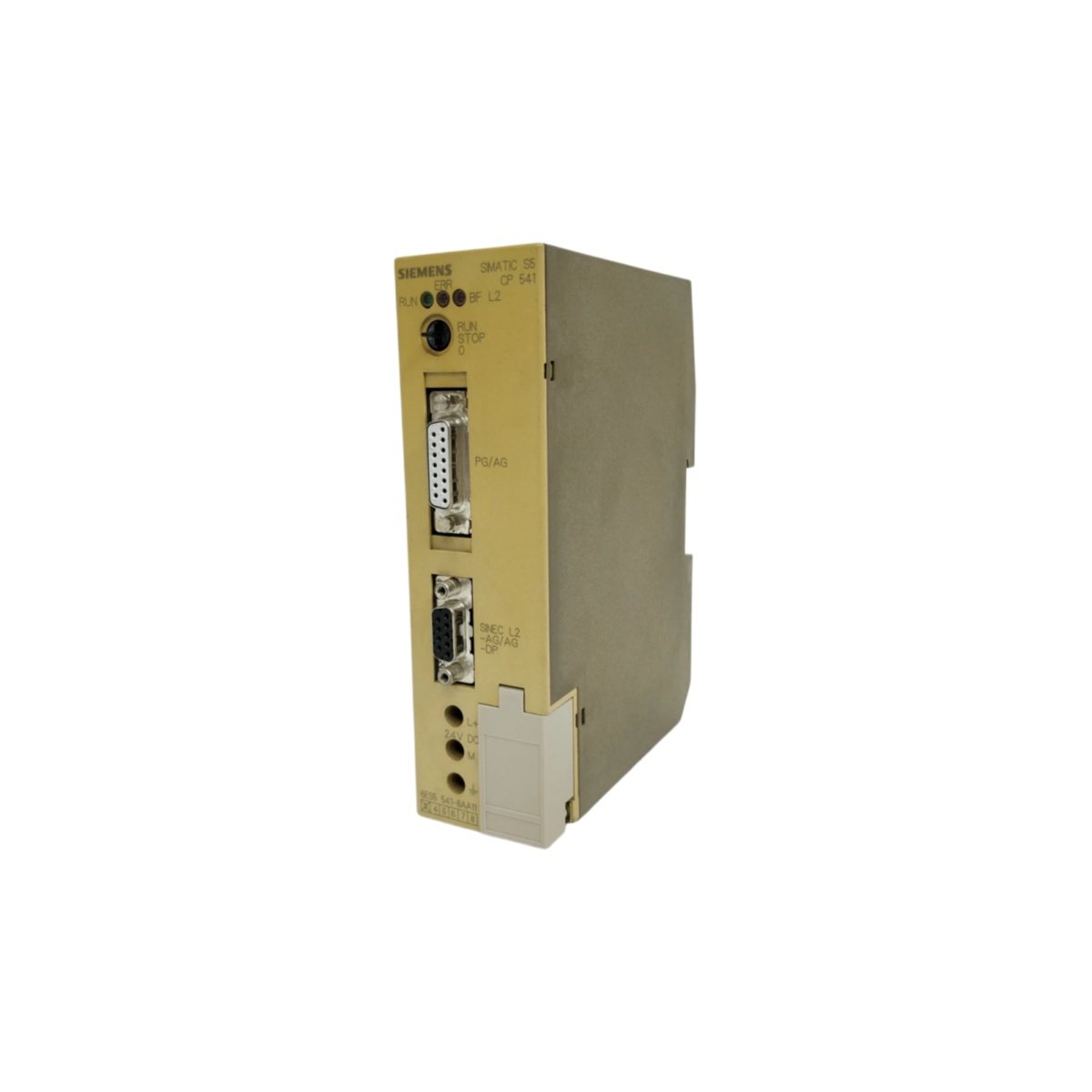

CP 541 L2 Interface for PG Connectivity
The 6ES5541-8AA11 serves as a dedicated communication processor within the SIMATIC S5 family. Engineers deploy this CP 541 module to establish reliable links between S5 controllers and programming devices. Consequently, the unit simplifies commissioning, diagnostics, and data exchange in legacy automation environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 6ES5541-8AA11 |
| Manufacturer | Siemens |
| Series | SIMATIC S5 |
| Module Type | CP 541 Communication Processor |
| Function | L2 Interface for PG Connection |
| Communication Protocol | SINEC L2 |
| Operating Voltage | 24V DC |
| Interface | PG/PLC Port, SINEC L2 Port |
| LED Indicators | Green (Run), Middle (Error), BF L2 (Bus Fault) |
| Dimensions (L×W×H) | 120 × 100 × 30 mm |
| Net Weight | 0.3 kg |
| Operating Temperature | 0°C to +60°C |
| Protection Class | IP20 |
Operational Features
Three LED indicators provide immediate status feedback for operational state and bus health. The module supports message-oriented PLC-PLC communication with data payloads up to 64 bytes. Additionally, the DP connection mode handles up to 16 words in each direction.
System Integration

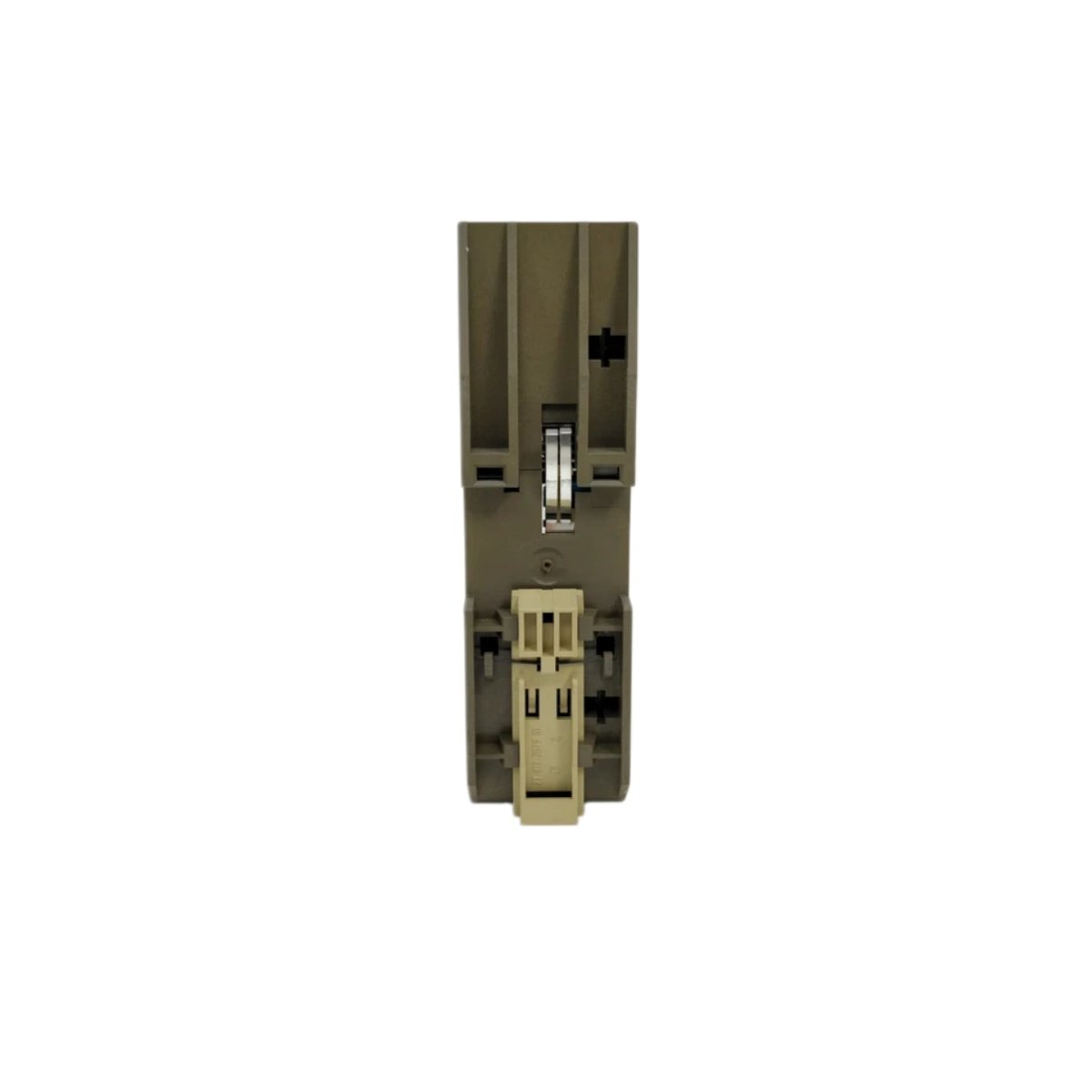

The 6ES5541-8AA11 mounts on a standard EN 50022-35 rail for straightforward installation. Galvanic isolation separates the PG/PLC interface from the SINEC L2 bus, protecting connected equipment. Therefore, technicians can integrate this processor into S5-90U, S5-95U, and S5-100U systems without complex modifications.Siemens 6ES5541-8AA11 SIMATIC S5 CP 541 L2 interface module. 24V DC, 0.3kg, IP20, SINEC L2 protocol. PG/PLC connectivity specs for legacy S5 systems.
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 250 × 25 × 210 mm |
