The Siemens 6ES5498-1AA71 measuring-range sub-module adapts analog input signals within SIMATIC S5 automation platforms. Engineers install this unit to configure voltage and current measurement ranges for process sensors. Consequently, it serves chemical plants, water treatment facilities, and manufacturing lines.

Technical Specifications and Hardware Details

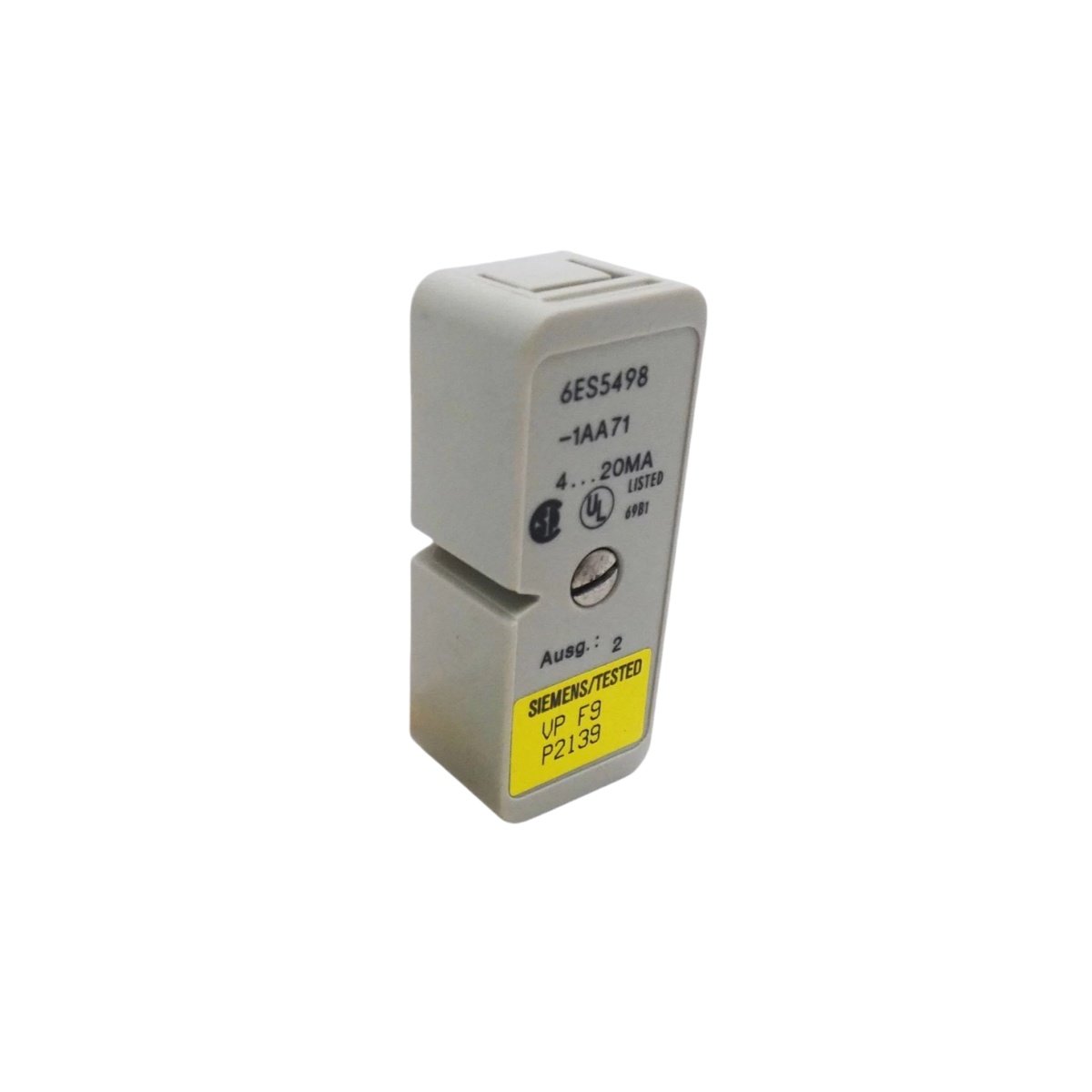

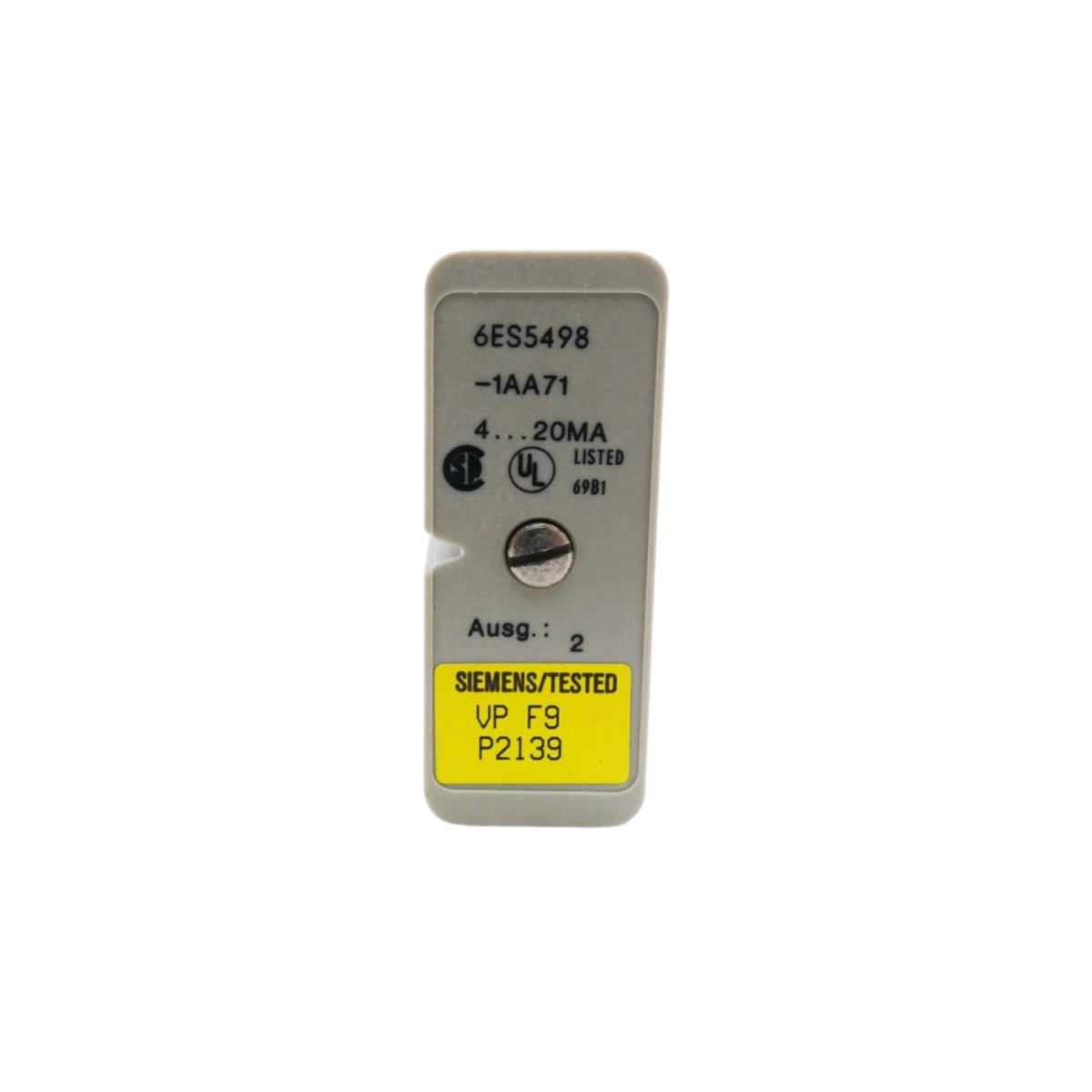

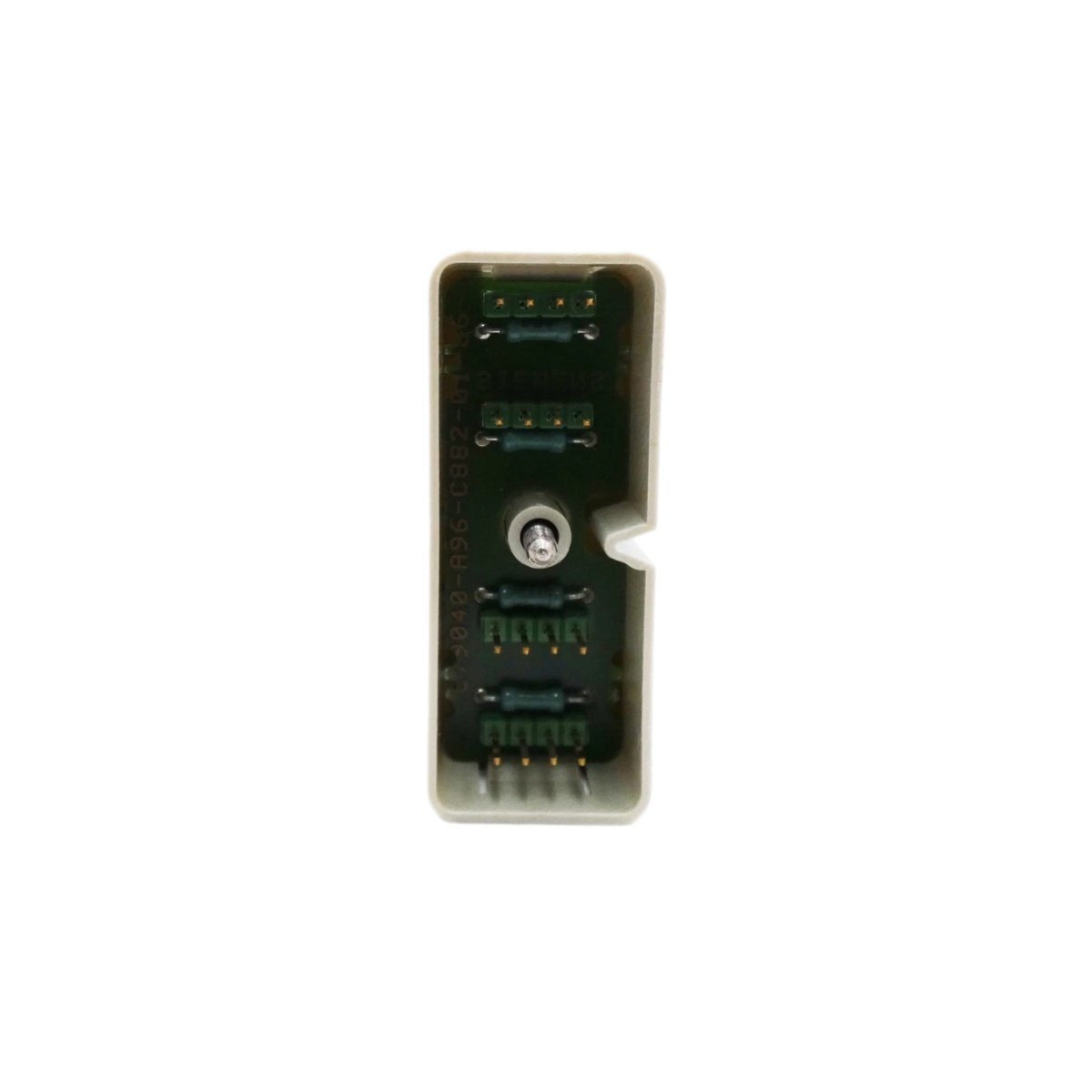

This sub-module plugs into a compatible analog input module inside a SIMATIC S5 rack. It measures roughly 80 mm long, 60 mm wide, and 15 mm thick, while it weighs about 0.1 kg. Moreover, the unit carries pin contacts and range selection jumpers.

Functional Capabilities and System Integration

The sub-module scales analog input signals while it matches sensor output to the parent module. Meanwhile, range selection jumpers let technicians configure voltage or current measurement. Precise scaling ensures accurate readings, therefore process control remains reliable.

Additionally, the design allows quick range changes without replacing the main analog module. As a result, operators adapt systems to different sensors at low cost. Clear jumper labeling helps technicians set ranges during commissioning. The compact unit also fits existing sockets for straightforward field replacement.

Installation and Maintenance Guidelines

Technicians should power down the rack before they insert the 6ES5498-1AA71 sub-module. Afterward, verifying jumper settings confirms the correct measurement range. Periodic inspection of pin contacts prevents loose connections and signal drift. Finally, consult Siemens documentation for compatible analog modules and configuration details.
