Versatile Simulation Interface for S5 Systems

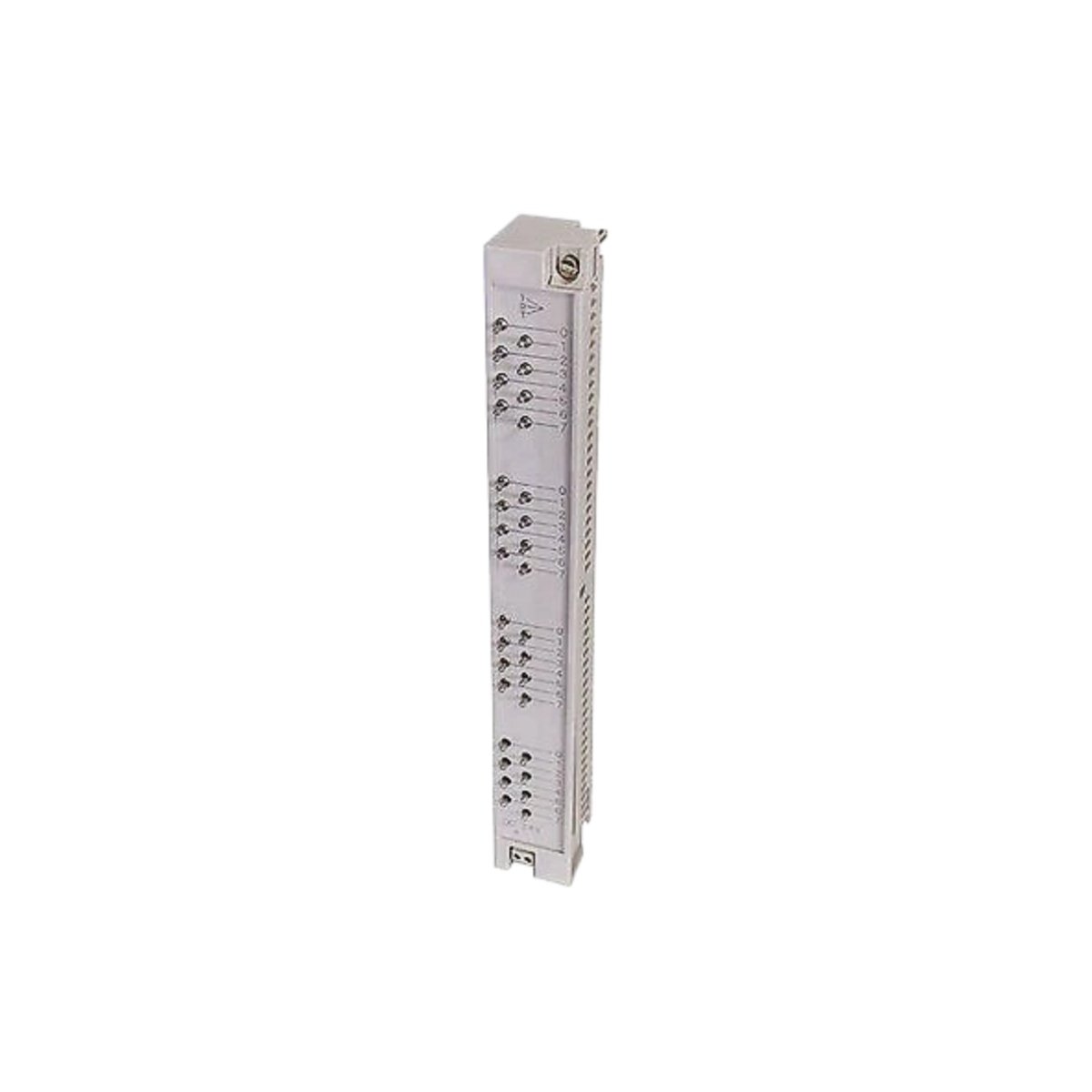

This simulation connector serves as a flexible interface for testing S5 programmable logic controllers. The 6ES5490-7SA11 enables seamless simulation of digital and analog signals for system verification. It also facilitates fault diagnosis and logic testing without requiring live field devices. The connector attaches directly to the S5 front panel, providing quick access to all I/O signals. Its robust design ensures reliable signal transmission during rigorous testing procedures.

Technical Specifications and Physical Attributes

The 6ES5490-7SA11 supports various signal types, including both digital and analog inputs. It features 20 contacts for comprehensive signal interface with the S5 system. The unit measures approximately 232 mm in depth and 25 mm in width. It weighs about 0.5 kg for convenient handling. Furthermore, the connector operates within a temperature range of 0 °C to 60 °C. This connector also allows simulation of specific analog values using external voltage sources. The 6ES5490-7SA11 simplifies emulating voltage or current inputs for testing programs.

Application and Integration Guidance

This simulation connector streamlines commissioning and troubleshooting processes in S5 systems. First, insert the 6ES5490-7SA11 into the front connector slot of the target module. Then, connect the test equipment to the designated pins for signal generation. For simulation purposes, you can emulate voltage or current inputs using an external source. Additionally, verify the CPU responses against the expected outcomes. The 6ES5490-7SA11 helps engineers confirm program logic and I/O configurations before connecting to actual field devices.
