Core Flexible I/O for S5-115U Systems

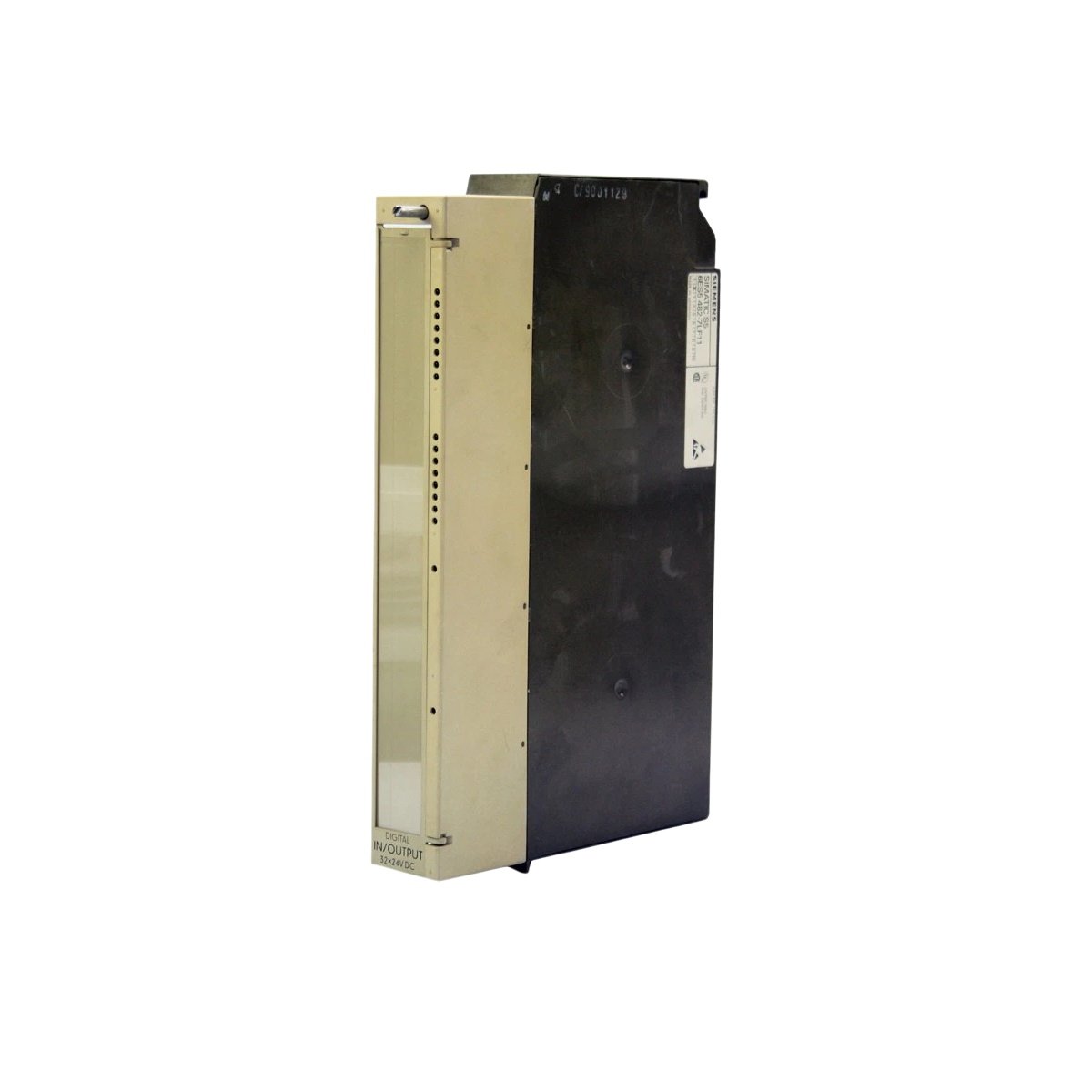

The Siemens 6ES5482-7LF11 is a combined digital input and output module for the SIMATIC S5-115U programmable logic controller family. This module provides 32 input and 32 output channels, offering a compact and cost-effective I/O solution for high-density applications . Its flexible design allows it to be used in a wide range of automation tasks, from simple machine control to process monitoring. Consequently, it is an essential component for maintaining and expanding legacy S5-115U installations.

Designed for High-Density and Reliable Control

This module reduces the need for multiple discrete modules, saving valuable space in the control cabinet . The 6ES5482-7LF11 offers a maximum current of 0.5 A per channel, capable of directly driving contactors, relays, and solenoid valves . The module provides full galvanic isolation between the inputs/outputs and the system bus, ensuring reliable operation in electrically noisy industrial environments . Furthermore, each channel includes a built-in LED for real-time status indication, simplifying both commissioning and troubleshooting.

Technical Specifications

The following table details its key technical parameters.

Application in Legacy S5 Systems

Plant engineers use this module to maintain and support existing S5-115U automation systems. The module’s combination of input and output channels on a single card saves rack space . The Siemens 6ES5482-7LF11 enables continued operation of proven legacy equipment. Therefore, sourcing tested units is essential for lifecycle management of classic Siemens automation platforms.
