8-Channel Analog Output Module for SIMATIC S5 Systems

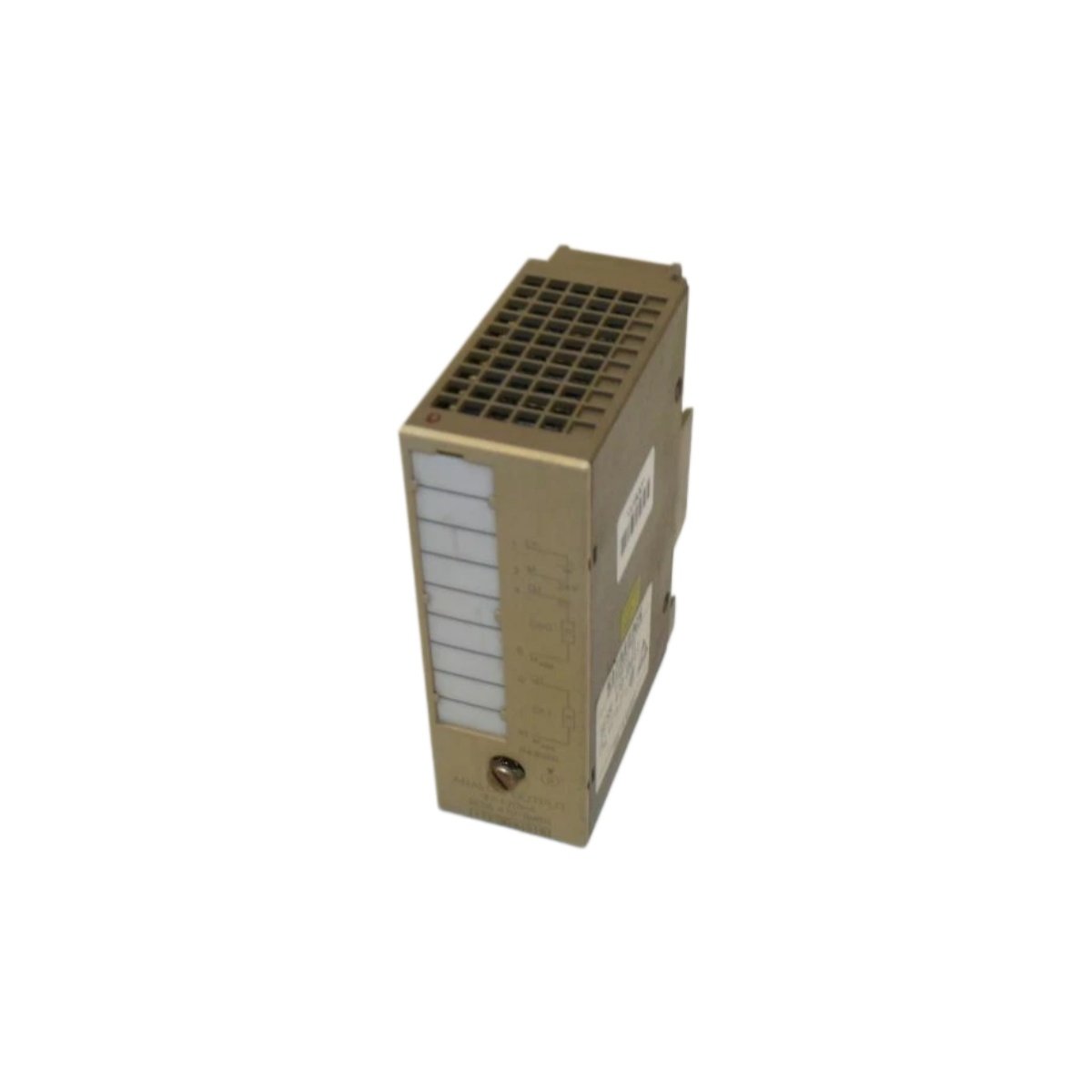

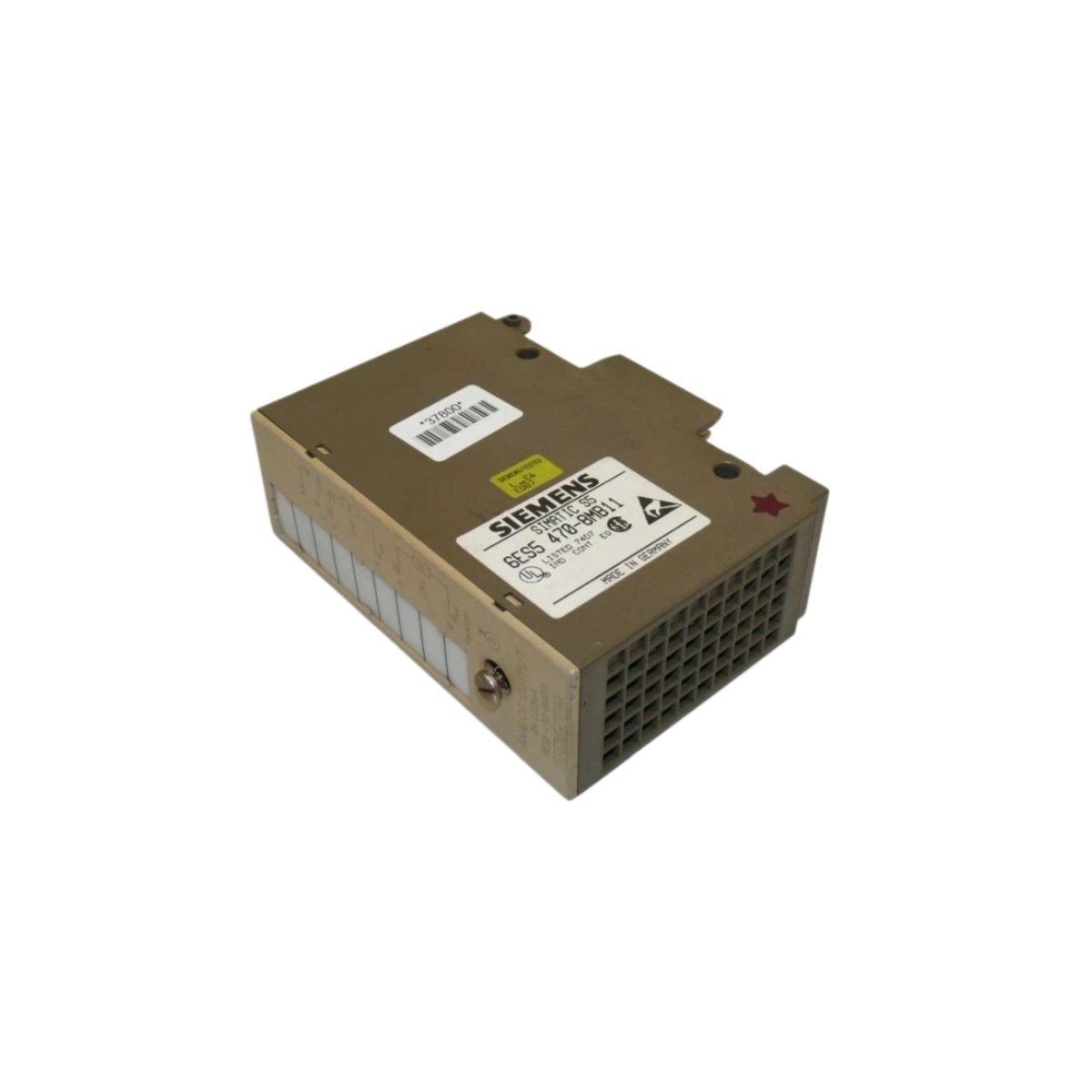

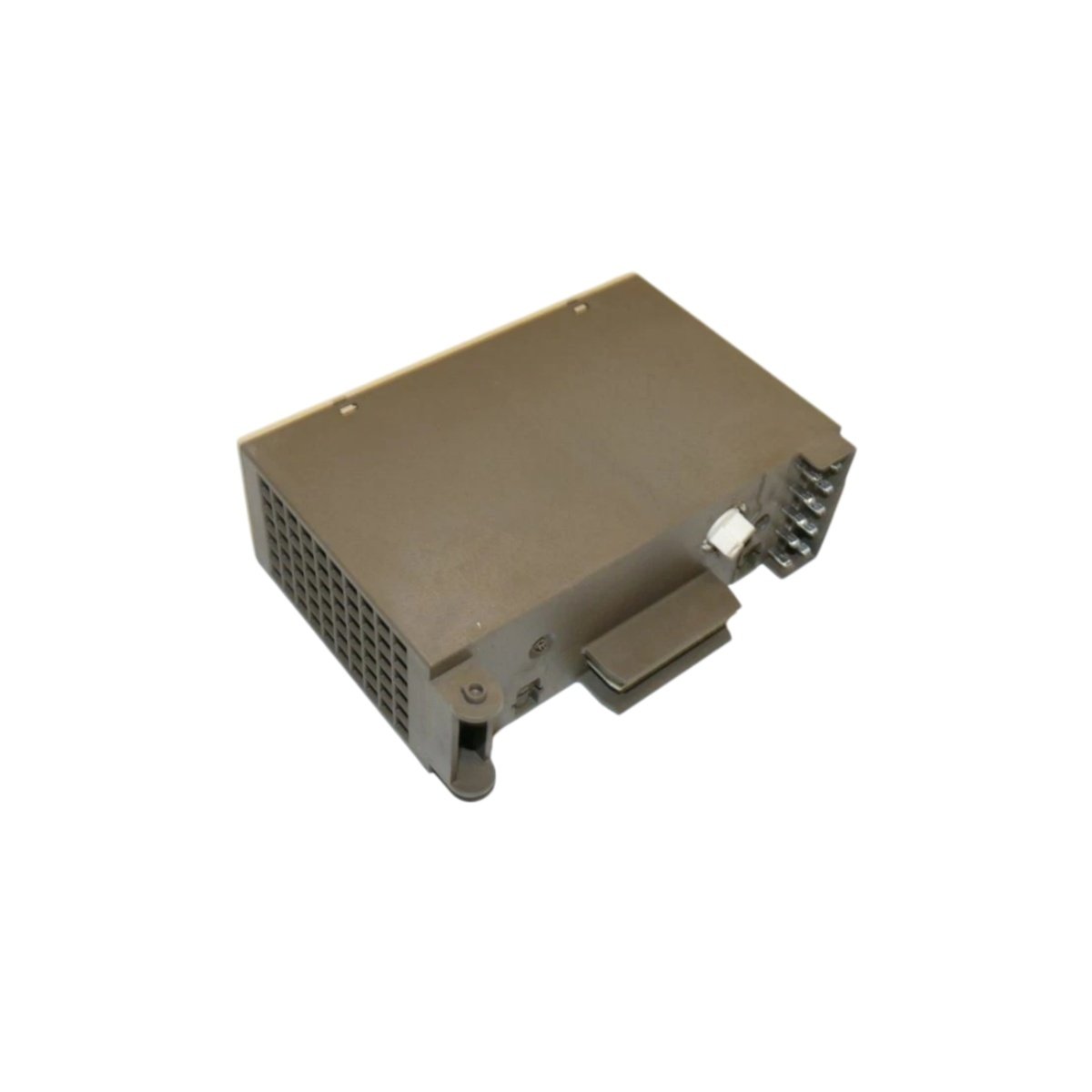

The Siemens 6ES5470-8MB11 functions as an analog output module within the SIMATIC S5 automation platform. This module converts digital values from the controller into precise analog signals for field actuators. Its 8-channel design supports multi-loop control of valves, drives, and process instruments. Therefore, this module provides a dependable solution for continuous process control in industrial environments.

Output Configuration and Signal Ranges

This analog output module provides 0 to 10 VDC and 4 to 20 mA signals with 12-bit resolution. Users can individually configure each channel for voltage or current operation. A load impedance of 500 Ω suits current outputs while 2 kΩ accommodates voltage signals. Furthermore, the module achieves an accuracy of ±0.5% of full scale for reliable process control. Consequently, operators can trust the output stability for critical regulation tasks.

Protection and Diagnostic Features

A built-in short-circuit protection safeguards the outputs against wiring faults and overloads. In addition, a diagnostic LED provides clear channel status indication for each output. The module also features a front-facing connector for easy field wiring access. Meanwhile, the module interfaces with the S5 backplane via the standard bus connection. For this reason, troubleshooting becomes quick and straightforward for maintenance personnel.

Isolation and Power Specifications

The 6ES5470-8MB11 features 1500 VAC isolation between the outputs and the backplane. This isolation protects the bus from electrical noise and transient power surges. The module draws 200 mA from the backplane supply for normal operation. Notably, its compact design occupies only one standard slot in the S5 rack. As a result, users can maximize available space for additional modules.

Installation and Physical Characteristics

This analog output module simplifies installation with its direct rack mounting capability. The module’s 25 mm width conserves valuable cabinet space for other components. Moreover, its robust construction withstands vibration and humidity in harsh industrial settings. The module supports firmware configuration for customized output behavior. Hence, this module adapts easily to varied application requirements.

Environmental Compliance and System Integration

The 6ES5470-8MB11 integrates seamlessly with S5 processors and power supplies. It operates reliably across a temperature range of 0 °C to 60 °C. Additionally, the storage temperature range extends from -40 °C to 85 °C. This module complies with all Siemens S5 quality and safety standards. Ultimately, this module delivers precise analog output control for legacy S5 systems.
