Product Overview

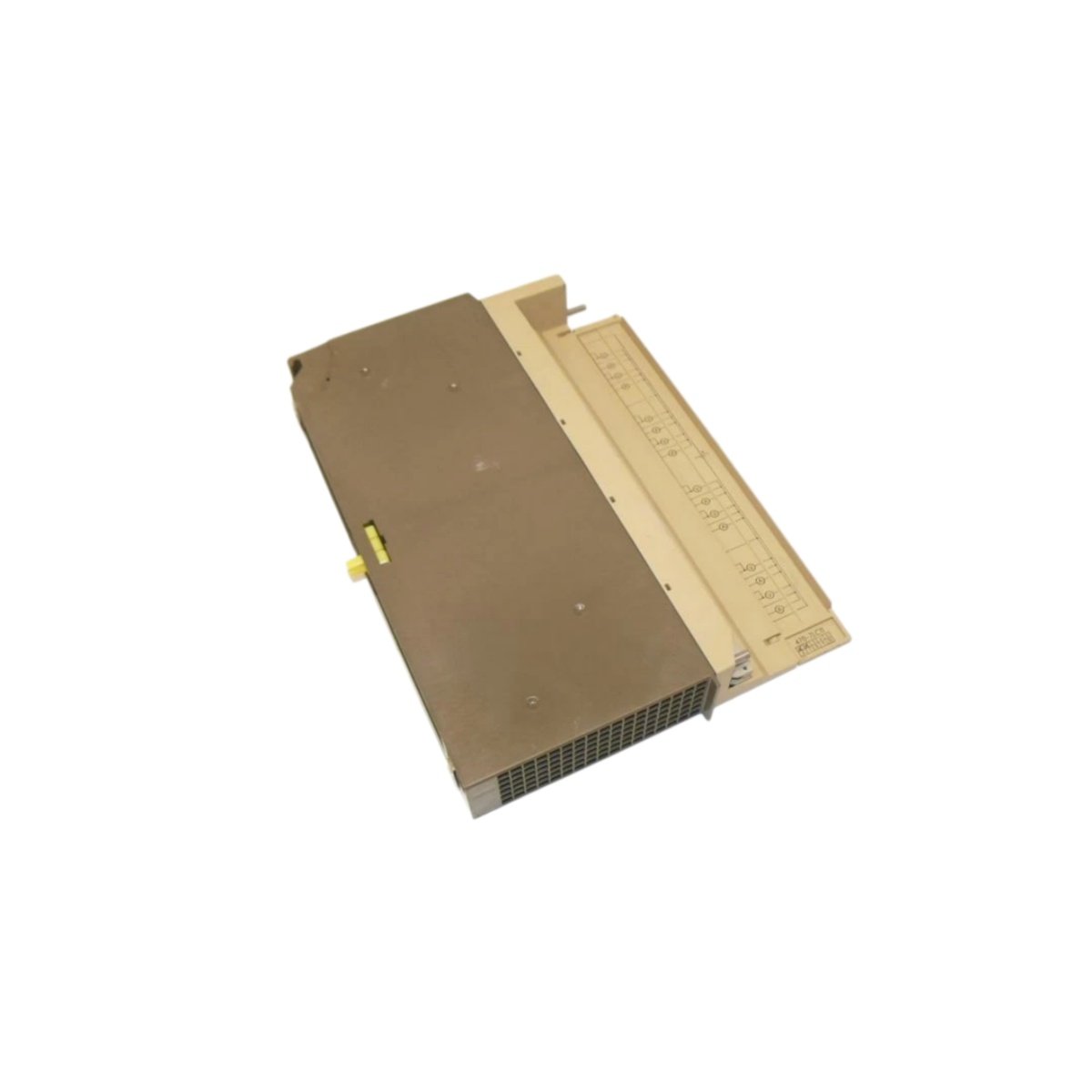

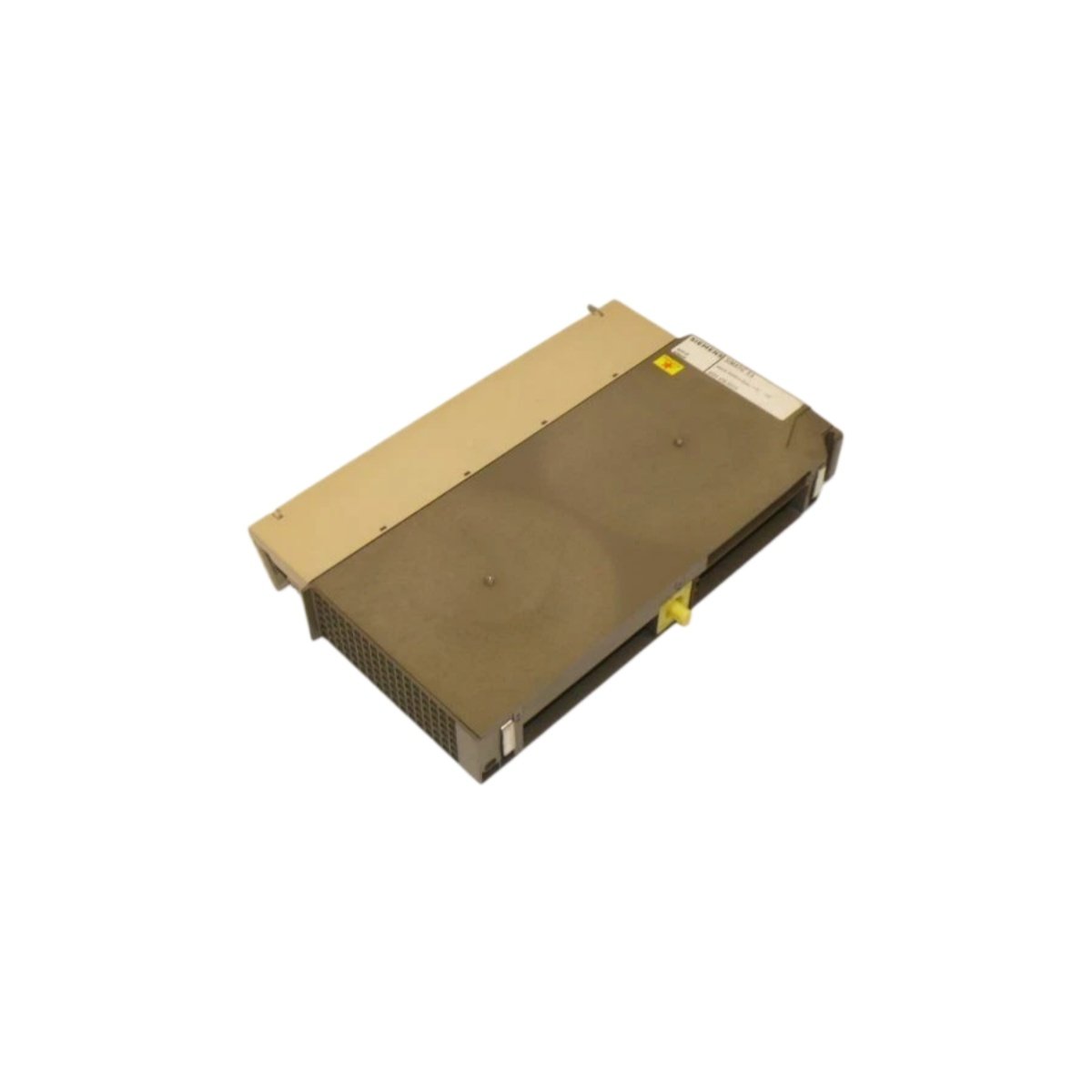

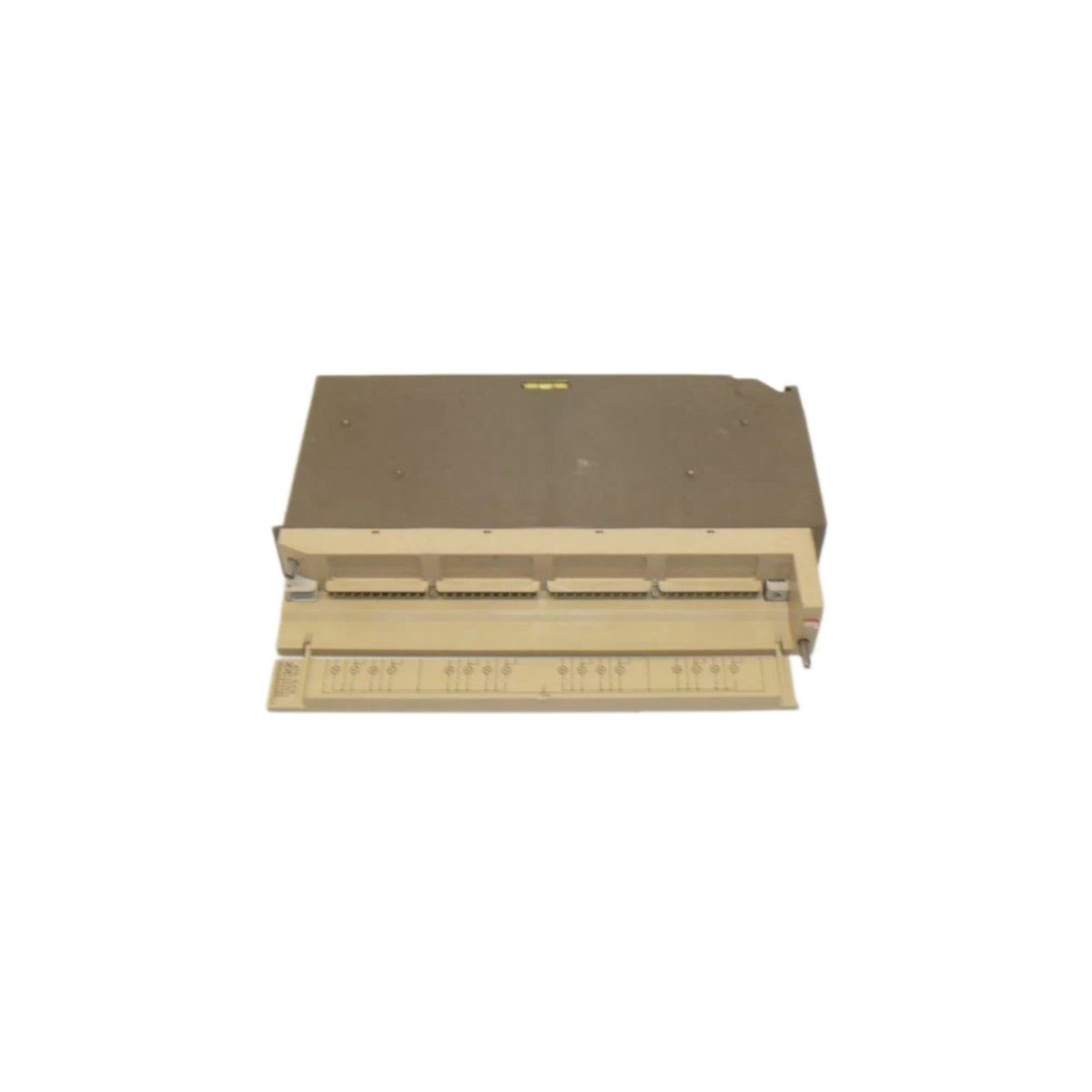

The Siemens 6ES5470-7LC11 provides eight floating analog output channels for the SIMATIC S5-115U and S5-115H programmable logic controllers. This module delivers either current or voltage signals to precisely control actuators, valves, and other analog field devices. Consequently, it serves as a reliable interface between the digital PLC core and the analog process environment.

Technical Specifications

This analog output module operates with a rated voltage of 24 V DC and permits a permissible range between 20 and 30 V DC. The module draws approximately 250 mA from the 5 V internal bus and about 300 mA from the 24 V external supply. Additionally, the total power loss for this unit equals roughly 8.5 W.

Key Design Features

The 6ES5470-7LC11 features galvanically isolated outputs, which enhance noise immunity and ensure stable signal transmission even in electrically noisy industrial environments. This floating design guarantees that ground potential differences do not affect the output signals, thereby improving overall measurement reliability. Moreover, the module includes integrated short-circuit protection to safeguard both the module and connected devices from potential damage.

Application and Integration

This analog output module integrates seamlessly into existing S5-115U and S5-115H PLC systems using standard analog output programming commands. It proves particularly valuable in process control applications requiring precise regulation of temperature, pressure, and flow rate. Consequently, industries such as manufacturing, energy, and transportation commonly deploy this module for critical control tasks.
